Fiber Distribution Hub

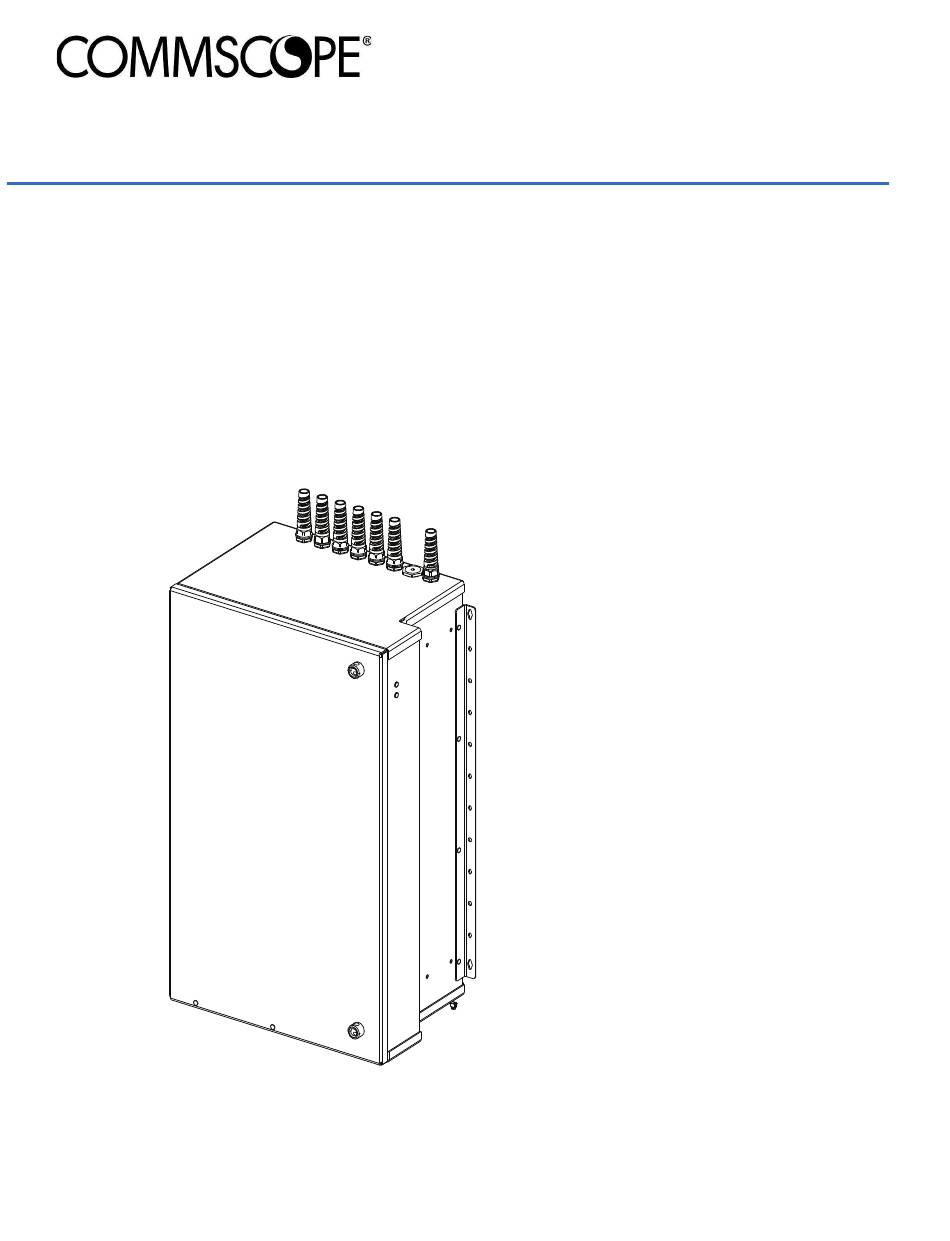

Indoor 288 FDH 3000 Cabinet
User Manual
www.commscope.com
ADCP-96-121 Rev B
23616-A
ADCP-96-121
Rev B, September 2022
