CommScope PPL-SP-24LC-SM-RPT-BEU Quick Start

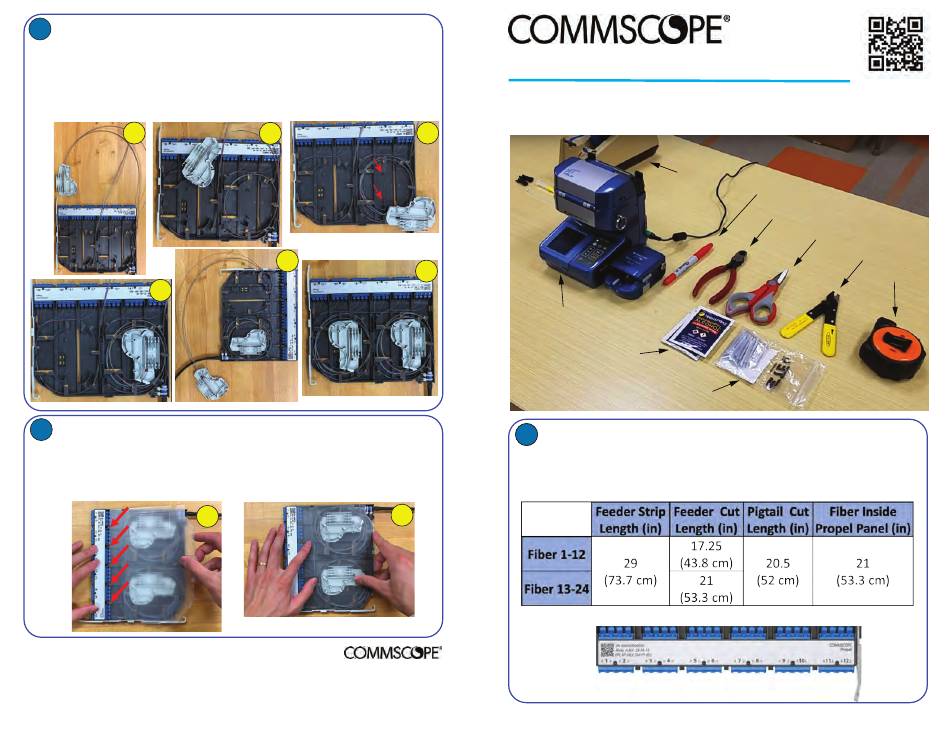

Route fibers into base
10
(a) Position spools to prepare for routing. (b) Route pigtail and feeders
corresponding to fibers 1-12 counterclockwise starting along the outer half of
the cassette and work inwards with each consecutive loop. (c) Line up the pegs
on the base with the mounting holes on the spool to finish routing. (d) Insert
spool into base and ensure all fibers are under retaining fingers. (e) Position
spool of fiber 13-24 as shown to prepare for routing. Ensure fibers are tucked
under retaining feature. (f) Repeat steps a-d for fibers 13-24.
a
d
Apply Cover
11
(a) Line the tabs on the cover with the slots near the front of the cassette base.
(b) Lay the cover flat on the base and ensure all the tabs on the side of the
cover and bases are lined up. With one hand holding the cassette base, push
cover forward with other hand to engage tabs. Double check the rear tab is
also engaged to prevent the cover from sliding off.
a
Page 4 of 4
c
b
e
f
b
