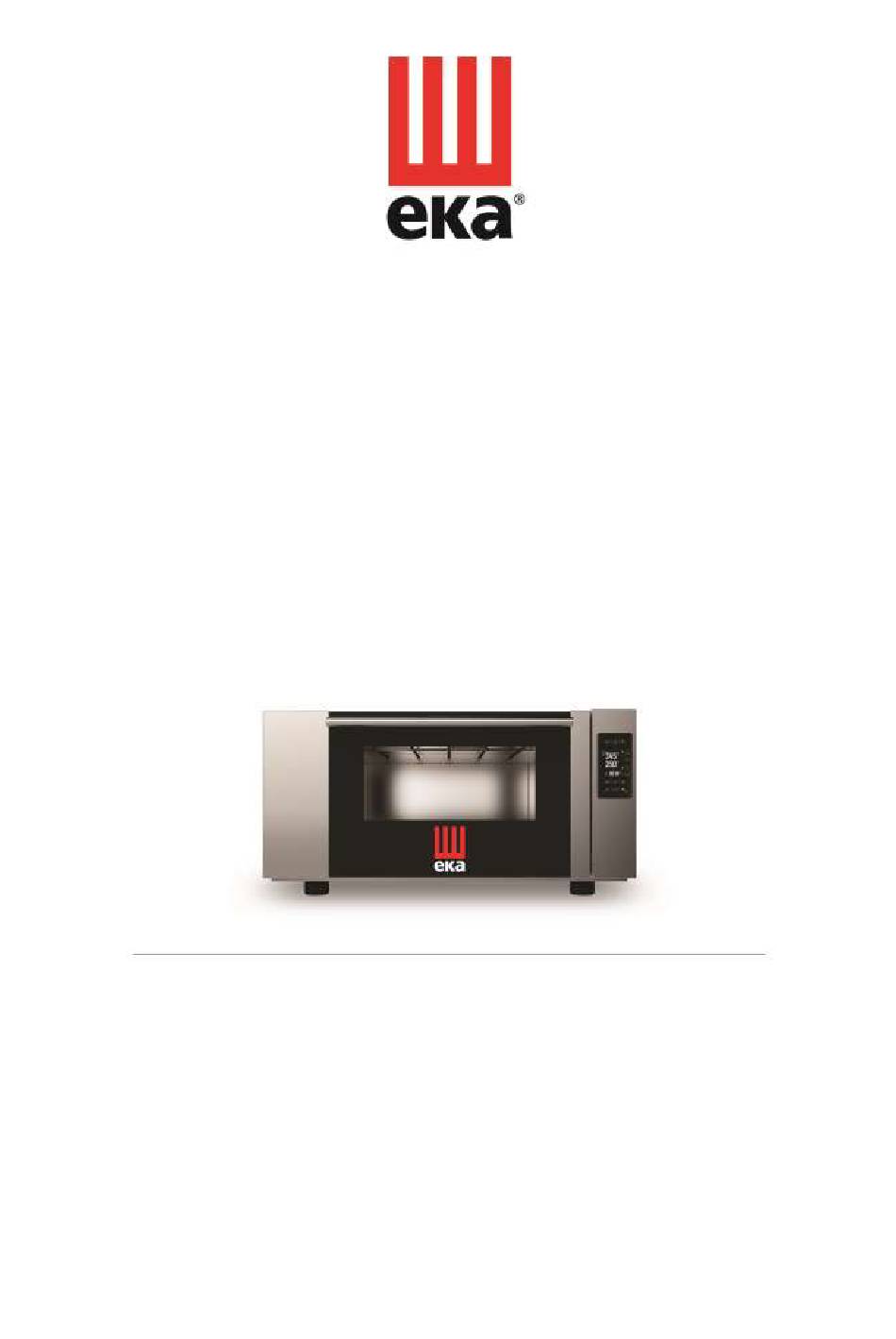

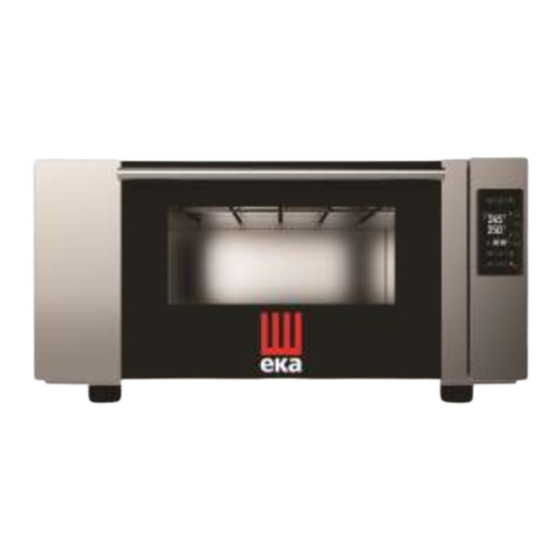

- Page 1 TRANSLATION OF ORIGINAL OPERATING AND INSTRUCTION MANUAL DECK OVEN MKF D1T – MKF D2T...
- Page 2 Purpose of the product Cooking food MKF D1T – MKF D2T Model TECNOEKA Srl declares that the above mentioned products comply with all provisions pertaining to the following directives: Machinery directive 2006/42/EC; Electromagnetic compatibility directive 2014/30/EU TECNOEKA Srl declares that the above mentioned products comply with the following harmonised directives: EN 60335-1 ;...
-
Page 3: Table Of Contents
CONTENTS 1. SERVIZIO TECNICO (TECHNICAL SERVICE) ____________________________________________________ 6 2. INSTRUCTIONS FOR THE USER _____________________________________________________________ 7 2.1 Control panel _____________________________________________________________________ 7 2.2 Oven control operation _____________________________________________________________ 8 2.3 Switching the oven on/off ___________________________________________________________ 8 2.4 ENERGY SAVING function ___________________________________________________________ 8 2.5 TIME and DAY settings _____________________________________________________________ 8 2.6 LANGUAGE setting_________________________________________________________________ 8 2.8 MANUAL operation ________________________________________________________________ 9 2.8.1 Cooking TIME setting _____________________________________________________________ 9... - Page 4 GENERAL INFORMATION It is essential for this instruction manual to be stored together with the appliance for future referencing; in the event of misplacing it, a copy must be obtained directly from the manufacturer. This information has been prepared for your safety and that of others. Therefore, we kindly ask you to read it carefully before installing and using the appliance.
- Page 5 BURN and INJURY HAZARD The temperature of the appliance's external surfaces may exceed 60°C, only touch control elements. Burn hazard! Pay attention to handling food containers during and after cooking: they might be very hot. To avoid burns, wear appropriate clothing ...
- Page 6 USER SAFETY The appliance is intended for professional use in institutional and professional kitchens and must only be used by skilled personnel who have been trained on its proper use. For safety reasons the appliance must be supervised during operation. ...
-
Page 7: Servizio Tecnico (Technical Service)
RESIDUAL RISKS After baking open the door with caution, to avoid the violent outflow of heat which might cause burns. During oven operation pay attention to hot areas of its outer surfaces (marked on the appliance). Do not use the door handle to move the appliance (possible glass breakage). ... -
Page 8: Instructions For The User
2. INSTRUCTIONS FOR THE USER 2.1 Control panel START/STOP TIMED STANDBY PROGRAMS COOKING CYCLE STOP ACTIVATES PARAMETERS VALUES ACTIVATES PARAMETERS AND SET VALUES DISPLAY ACTIVATES PARAMETERS SET VALUES ACTIVATES PARAMETERS AND SET VALUES INTERACTIVE 4 HUMIDITY/STEAM PRODUCTION STEAM/H ENERGY SAVING UMIDITY FUNCTION FUNCTION... -
Page 9: Oven Control Operation
2.2 Oven control operation The control of the oven is activated from the display by tapping the symbol (available functions) and/or the area delimited by the icon ( o p e r a t i n g p a r a m e t e r s / v a l u e s t h a t c a n b e s e t w i t h t h e w h i t e L E D o n ) w i t h y o u r f i n g e r . -
Page 10: Manual Operation
2.7 Operation of the oven (summary) screen Time “Upper" resistor function (white=OFF, red=ON) “Upper” temperature (Upper cooking chamber “Upper” temperature area) setpoint value “Lower” temperature “Lower” temperature (Lower cooking chamber setpoint value area) “Lower” resistor function Functional condition of the (white=OFF, red=ON) oven Number... -
Page 11: Humidity/Steam Setting
clear text) If you keep your finger on the same icons, the value of the parameter increases or decreases quickly. To confirm the set value, tap t h e i c o n ( i n g r e e n ) The parameter value must be set within 15 seconds. -
Page 12: Second Cooking Step Deactivation
To confirm your choice, tap t h e i c o n ( i n g r e e n ) : the other options of the "Expert" screen appear. By tapping the icon (in clear text) select the “ph 2/2”option (written in green), and confirm it by tapping t h e i c o n ( i n g r e e n ) : the summary screen appears showing (in yellow) the "ph 2/2"... -
Page 13: Cooking Chamber Lighting
2.8.8 Cooking chamber lighting Tapping the symbol activates the lighting of the cooking chamber; to deactivate, it tap the same symbol. 2.9 Recipe book In the recipe book (symbol , you can: save new recipes (up to 50 recipes), overwrite new recipes instead of those already in the recipe book and delete any recipes that are no longer used. -
Page 14: Programmed Ignition Storage
2.10.1 Programmed ignition storage This setting can only be made in "STAND-BY" mode if there is at least one recipe in the recipe book. Touch the icon (in clear text) : the "Calendar" screen ( ) and the writing (in green) appear "Add ignition"... -
Page 15: Manual Cooking Chamber Cleaning
abrasive substances. Carefully follow the instructions and warnings of the detergent's manufacturer and take precautions such as using adequate rubber gloves. Strictly avoid using scouring pads, steel wool and scrapers that may ruin t he treated surfaces. Also avoid prolonged permanence on the steel surfaces of foods containing acidic substances (lemon juice, vinegar, salt, etc.) which cause corrosive deterioration. -
Page 16: Troubleshooting
4 TROUBLESHOOTING Type of fault Cause of the fault Corrective action Non-compliant connection Check the connection to the mains power mains Control panel off (The oven does not work) No mains voltage Restore the power supply voltage Control panel on Safety thermostat activation Contact a skilled technician (The oven does not work) -
Page 17: Possible Alarms
The parts required for adaptation to different types of gas are provided with the appliance hence supplied upon sale or delivery. For servicing needs the user may contact Tecnoeka on the numbers shown on the cover, or refer to the website www.tecnoeka.com. -
Page 18: Conventional Warranty
The warranty does not cover Products purchased as used or from third parties who are not connected to or authorised by Tecnoeka. TECNOEKA SRL shall not be held liable for damage, either direct or indirect, c aused by a product fault or as the result of the forced suspension of operation. -
Page 19: Availability And Supply Of Spare Parts
9. AVAILABILITY AND SUPPLY OF SPARE PARTS Tecnoeka srl keeps and ensures the availability of spare parts for a maximum of 24 months from the date of sale of the finished product to the dealer. Availability cannot be guaranteed after said period.
