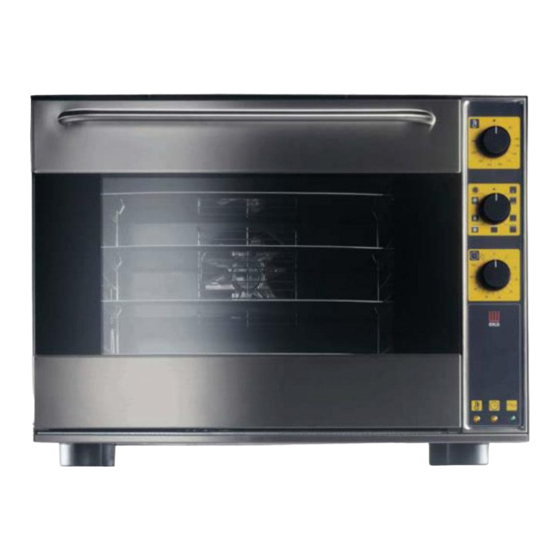

USE AND INSTRUCTION MANUAL
MOD. KF 412 - MOD. KF 723 - MOD. KF 723 M
rev. 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KF 412 and is the answer not in the manual?

Questions and answers

Related Manuals for TECNOEKA KF 412

Summary of Contents for TECNOEKA KF 412

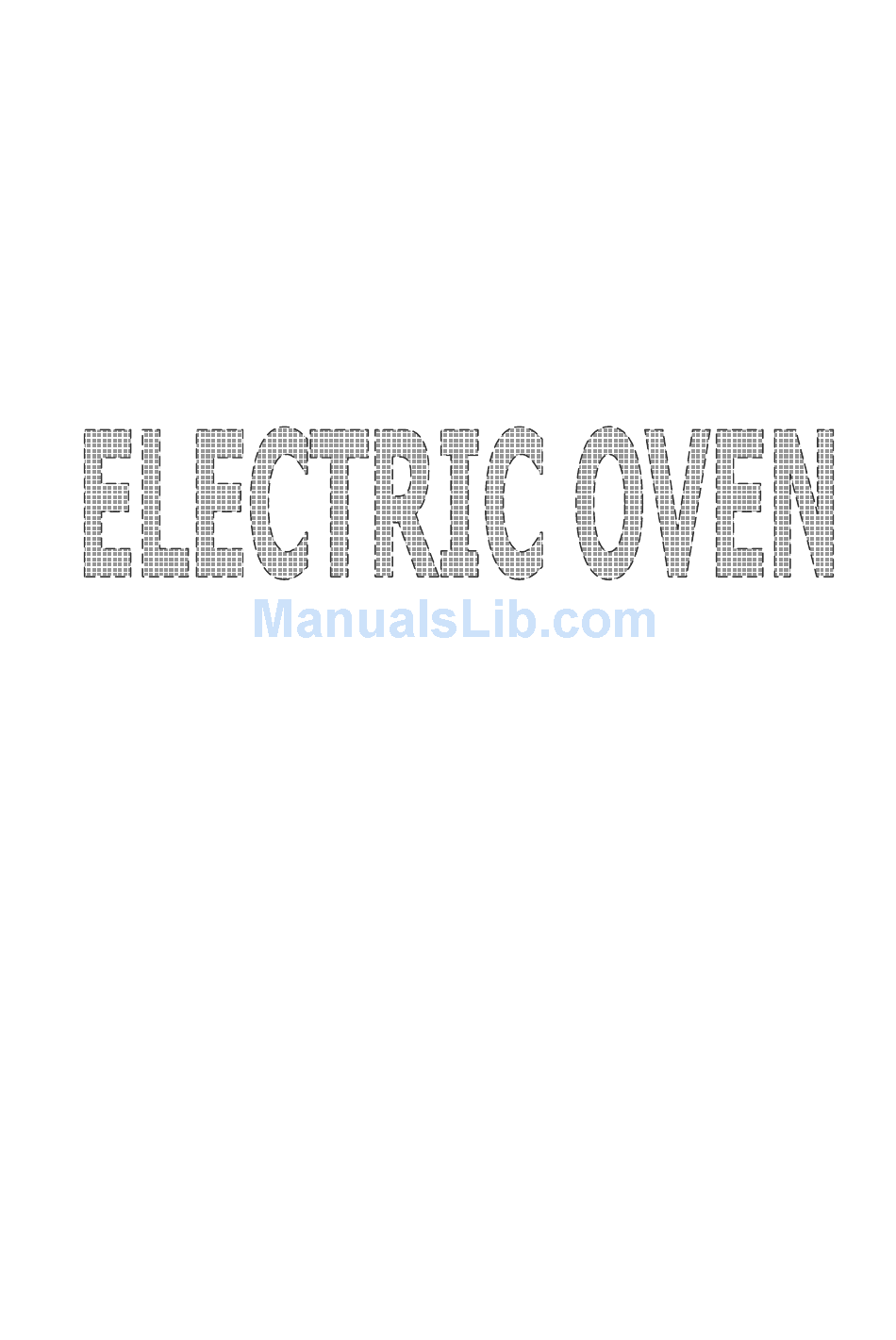

  • Page 1 USE AND INSTRUCTION MANUAL MOD. KF 412 - MOD. KF 723 - MOD. KF 723 M rev. 1...
  • Page 2 _ TECNOEKA Srl _________________________________________________________ use and instruction manual _ _ page 2 ________________________________________________________________________________________...
  • Page 3 _ Electric Ovens _ rev. 1 _____________________________________________________ KF 412- KF 723- KF 723M _ \\Ekaserver\Dati\Sistema Gestione Qualità (SGQ)\PRODOTTI\Famiglia ________________________________________________________________________________________ _ page 3 _...
  • Page 4 _ TECNOEKA Srl _________________________________________________________ use and instruction manual _ FORNI\FORNO ELETTRICO 40 60 90\LEka\MANUALI D'USO - Forno Elettrico 40 60 90 - LEka\Manuale d'uso KF 412-KF 723-KF 723 M - GB rev.1.doc _ page 4 ________________________________________________________________________________________...
  • Page 5 _ Electric Ovens _ rev. 1 _____________________________________________________ KF 412- KF 723- KF 723M _ Prodotti mirati per Ristorazioni, Pasticcerie, Panetterie e Gastronomie TECNOEKA Srl Via I. Nievo, 12/B 35012 Camposampiero (PD) Tel. +39 049 5791479 - +39 049 9300344 Fax + 39 049 5794387 www.tecnoeka.com...

  • Page 6: Ce Declaration Of Conformity

    Type of product Electric ovens Model KF 412 – KF 723 – KF 723 M TECNOEKA Srl declares that the above mentioned products conform to the safety regulations under: CEI EN 60335-1 - Low voltage directive 73/23/CEE CEI EN 60335-2-...
  • Page 7 _ Electric Ovens _ rev. 1 _____________________________________________________ KF 412- KF 723- KF 723M _ ________________________________________________________________________________________ _ page 7 _...
  • Page 8 _ TECNOEKA Srl _________________________________________________________ use and instruction manual _ Index 1. Technical service 2. General warnings 3. Technical specifications 4. Instructions for the installer 5. Use instructions (for the user) 6. Residual risks (for the user) 7. How to use the control panel 8.

  • Page 9: Technical Service

    _ Electric Ovens _ rev. 1 _____________________________________________________ KF 412- KF 723- KF 723M _ 1. Technical service A technical check-up once or twice a year helps prolong the life of the appliance and guarantees better operation. Make sure that assistance is carried out solely and exclusively by qualified personnel.

  • Page 10: Instructions For The Installer

    _ TECNOEKA Srl _________________________________________________________ use and instruction manual _ humidity Power cable diameter 3x1,5 mm² Type of cable H07RN-F The noise level of the appliance in operation is below 70 dB (A). The "technical data" plate is positioned on the rear panel of the appliance.

  • Page 11: Use Instructions (For The User)

    _ Electric Ovens _ rev. 1 _____________________________________________________ KF 412- KF 723- KF 723M _ the power supply, when the appliance is operating, must not deviate from the rated voltage value by ±10%. Connection of power cable - The terminal board is on the rear panel of the appliance.
  • Page 12 _ TECNOEKA Srl _________________________________________________________ use and instruction manual _ The bench or support must be able to support the weight of the machine and house it correctly. The appliance contains electrical parts and must never be washed with a jet of water or steam.

  • Page 13: How To Use The Control Panel

    _ Electric Ovens _ rev. 1 _____________________________________________________ KF 412- KF 723- KF 723M _ 7. How to use the control panel KF 723 KF 723 M KF 412 1. Control thermostat knob 2. Functions selector knob 3. End of Cooking”...

  • Page 14: Oven Cooking

    Switch off the oven 5 minutes before the theoretical time in order to recover stored heat. MOD. KF 412 - MOD. KF 723 Convection cooking - Activate the oven and turn the thermostat knob in line with the required temperature.
  • Page 15 _ Electric Ovens _ rev. 1 _____________________________________________________ KF 412- KF 723- KF 723M _ Convection cooking is particularly convenient for rapid defreezing, and for sterilising preserves and drying mushrooms and fruit. Cooking with the grill - Grilling is effected by the thermal radiation of an incandescent electrical heating-element.
  • Page 16 _ TECNOEKA Srl _________________________________________________________ use and instruction manual _ Cleaning the oven door - To clean the oven door thoroughly, proceed as follows: - fully open the door; - attach the rings “A” onto the hinge seats (Fig. 4); - lift the door gently and withdraw it (Fig. 5).

  • Page 17: Wiring Layout

    _ Electric Ovens _ rev. 1 _____________________________________________________ KF 412- KF 723- KF 723M _ 11. Wiring layouts WIRING LAYOUT MOD. KF 412 - KF 723 Power terminal board Motorised ventilator earth "End of cooking" programmer Oven lighting lamp earth Oven thermostat...
  • Page 18 _ TECNOEKA Srl _________________________________________________________ use and instruction manual _ Thermostat indicator light Yellow/green wire Circular heating-element earth _ page 18 ________________________________________________________________________________________...
  • Page 19 _ Electric Ovens _ rev. 1 _____________________________________________________ KF 412- KF 723- KF 723M _ WIRING LAYOUT MOD. KF 723 M Power supply terminal board Bottom heating-element earth "End of cooking" programmer Circular heating-element earth Oven thermostat Radial motorised ventilator earth...
  • Page 20 To implement the guarantee send part B of the certificate duly compiled to TECNOEKA S.r.l., by and not late than 8 days from the date of purchase of the appliance (otherwise the appliance cannot be covered by a legal guarantee). Keep part A of the certificate and, if necessary, show it to the Technical Service personnel, together with the tax receipt or other document which may be fiscally obligatory.
  • Page 21 _ Electric Ovens _ rev. 1 _____________________________________________________ KF 412- KF 723- KF 723M _ handbook. The manufacturer reserves the right to to make modifications to its products, which modifications it considers necessary or useful, also in the interest of users, without prejudice to the essential characteristics of functionality and safety.
