- Page 1 AirLive ONU-10XG(S)-1004-10G Quick Installation Guide V1.0...

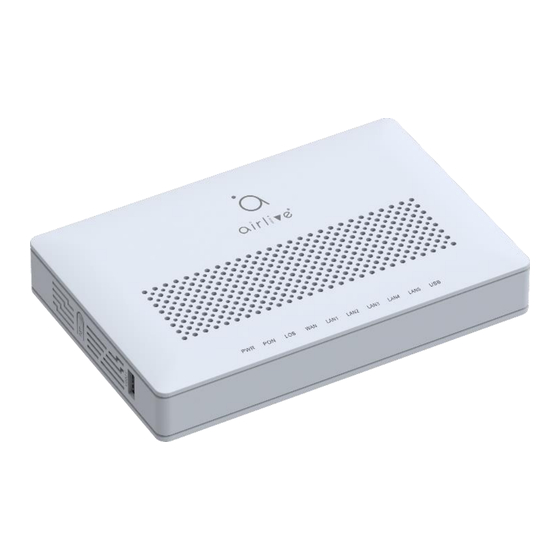

- Page 2 AirLive ONU-10XG(S)-1004-10G QIG_V1.0 1. Indicator and Interface Description 1.1 Product Picture Figure 1. ONU-10XG(S)-1004-10G 1.2 Application Chart Figure 2. Application Chart (when using XG model the speed will be 10G DL / 2.5G UL) 1.3 Panel Lights Figure 3. Panel Lights...
- Page 3 AirLive ONU-10XG(S)-1004-10G QIG_V1.0 Device is registered to PON system. Registration Device is not registered to PON system. Blink Device is registering. Device has received optical signal. Optical signal Blink Device does not receive optical signal. WAN connection is up. WAN connection is down.
- Page 4 AirLive ONU-10XG(S)-1004-10G QIG_V1.0 2. Packing List Contents Quantity Contents Quantity 10G-XG/XGS-PON 1 pcs Power adapter 1 pcs Installation Guide 1 pcs Network cable 1 pcs 3. Hardware Installation Installation Environment Requirements ONU device must be installed indoors and ensure the following conditions: ⚫...
