Graco 25C453 Instructions And Parts

Graco 25C453 Instructions And Parts

Electric direct drive agitator
Hide thumbs Also See for 25C453:
Table of Contents

Advertisement

Quick Links

Download this manual

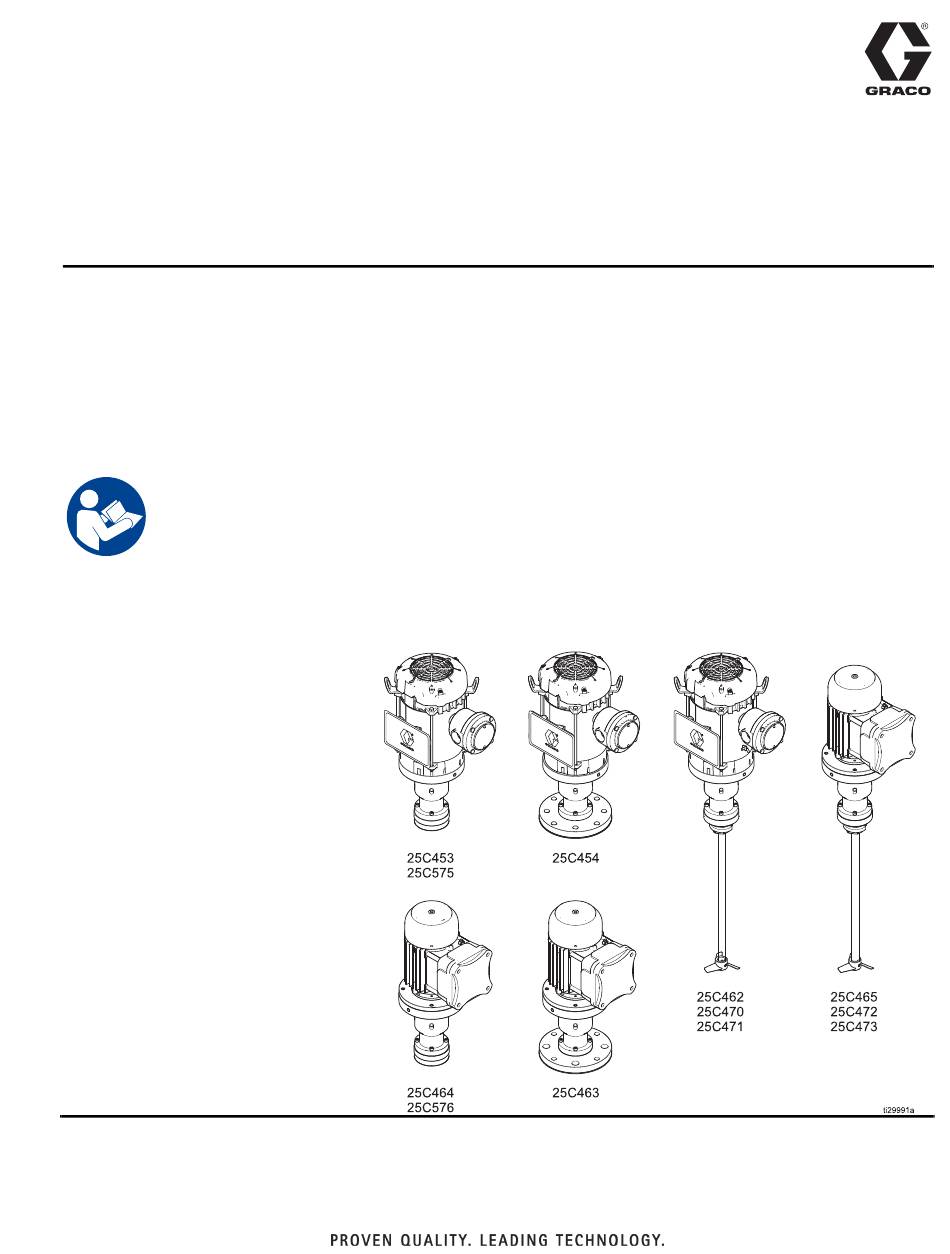

Instructions - Parts
Electric Direct Drive
Agitators
Low shear, electric, direct drive agitator for mixing and maintaining suspension of
industrial coating stored in fluid tanks. For professional use only.
See page 3 for model information, including maximum working pressure and approvals.
Important Safety Instructions
Read all warnings and instructions in this
manual before using the equipment. Be
familiar with the proper control and
usage of the equipment. Save these
instructions.
3A4553 H
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 25C453 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Graco 25C453

Summary of Contents for Graco 25C453

  • Page 1 Instructions - Parts Electric Direct Drive Agitators 3A4553 H Low shear, electric, direct drive agitator for mixing and maintaining suspension of industrial coating stored in fluid tanks. For professional use only. See page 3 for model information, including maximum working pressure and approvals. Important Safety Instructions Read all warnings and instructions in this manual before using the equipment.

  • Page 2: Table Of Contents

    California Proposition 65 ....29 Graco Standard Warranty ....30...

  • Page 3: Models

    UL Listed Explosion Proof Inverter Duty Motor. Motor Hazardous Location Part No. Description Approvals 25C453+ 3" Quick-clamp Flange Mount Agitator Motor 25C575+ 4” Quick-clamp Flange Mount Agitator Motor 7.5" OD Flange Mount Agitator Motor (3" 150# ANSI Flange 25C454+...
  • Page 4 Models Hazardous Location Approved Combinations The following agitator assemblies are approved for hazardous locations. An approved assembly consists of one component from each column. The approved assemblies can be used with or without the gear reducer. Optional Gear Part No. Shaft * Impeller * Combination Approvals...

  • Page 5: Safety Symbols

    Safety Symbols Safety Symbols The following safety symbols appear throughout this manual and on warning labels. Read the table below to understand what each symbol means. Symbol Meaning Symbol Meaning Toxic Fluid or Fumes Hazard Burn Hazard Ground Equipment Crush Hazard Follow Pressure Relief Procedure Electric Shock Hazard Ventilate Work Area...

  • Page 6: General Warnings

    General Warnings General Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual, refer back to these Warnings.
  • Page 7 General Warnings WARNING FIRE AND EXPLOSION HAZARD Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. Paint or solvent flowing through the equipment can cause static sparking. To help prevent fire and explosion: • Use equipment only in well ventilated area.
  • Page 8 General Warnings WARNING BURN HAZARD Equipment surfaces and fluid that is heated can become very hot during operation. To avoid severe burns: • Do not touch hot fluid or equipment. PERSONAL PROTECTIVE EQUIPMENT Wear appropriate protective equipment when in the work area to help prevent serious injury, including eye injury, hearing loss, inhalation of toxic fumes, and burns.

  • Page 9: Installation

    Installation Installation Shaft and Impeller Size 1. Find the distance from the bottom of the tank up 1/2 the impeller diameter (i.e., 2”, 4”, or 6”) (See 0.5 D in F . 1). Flange-mounted and quick-clamp flange mounted agitators need shafts and blades. See below to 2.
  • Page 10 17P023 18 (46 cm) . 2 shows the holes for installing agitator flanges (part numbers 25C454 and 25C453) to the mounting surface. Optional 4.8 to 1 Gear Reducer Kits Holes required in the mounting surface are: •...
  • Page 11 Place bearing housing/flange assembly (A) on top of • (3) holes to mount to Graco drum lids that have quick-clamp gasket (not provided) and existing mounting surface for back-gear agitator housings. quick-clamp flange on tank. Attach with clamp •...

  • Page 12: Vfd

    VFD. For Non-Graco supplied VFD — see the motor Installation manual for instructions to connect to the For a Graco supplied VFD, see manual 3A4793 for VFD. information on VFD installation and operation. 3A4553 H...

  • Page 13: Grounding The Agitator

    Installation Grounding the Agitator Gear Reducer Kit Installation The following figures illustrate how to install the gear reducer kits onto UL and ATEX listed motor assemblies The equipment must be grounded to reduce the risk of static sparking and electric shock. Electric or static sparking can cause fumes to ignite or explode.
  • Page 14 Installation Ref No. Part No. Description 25N644 FLANGE, MOUNT, 25N645 OUTPUT SCREW, SOCKET HEAD — — FLANGE, SPACER SCREW, SOCKET HEAD — — FLANGE, ADAPTER — COLLAR — SCREW, SET — SCREW, CAP . 8: Mounting Kit 25N645 onto ATEX Motor and Bearing Housing Assembly 3A4553 H...

  • Page 15: Operation

    If using a Graco supplied VFD, the agitator speed can and disconnect power to the VFD before raising, be calculated by using the formula below, or checking, or repairing the agitator.

  • Page 16: Maintenance

    Maintenance Maintenance Bearings Bearings are sealed and do not require lubrication. Inspect yearly to verify bearings are running smoothly and not damaged. Replace if necessary with a new Moving parts, such as an impeller blade, can pinch or bearing housing. amputate fingers.

  • Page 17: Service

    Service Service 9. Complete the procedure by following the steps in Motor, Bearing Housing, and Impeller Installation, page 10. • Moving parts, such as an impeller blade, can pinch or amputate fingers. To reduce risk of injury, always disconnect power from the agitator before performing maintenance or service.

  • Page 18: Parts

    Parts Parts Models 25C454 and 25C463 Flange Mount . 12 3A4553 H...
  • Page 19 Parts Ref No. Part No. Description Ref No. Part No. Description ASSEMBLY, C19837 SCREW, CAP, HOUSING/FLANGE, SOCKET HEAD� BEARING 3/8–16 x 1” 17N898 FLANGE, MOUNTING, 17P459 SCREW, WING� 3" LID� 150# 3/8–16 x 1.5 “ (Not 17N588 SEAL, PTFE Shown) 15Y360 SPACER, SEAL, ASME 17N963...
  • Page 20 Parts Models 25C453, 25C575, 25C464, 25C576 Quick-Clamp Mount . 13 3A4553 H...
  • Page 21 230/460, TEFC, XP, 60 HZ (model * Part of factory-assembled item A. 25C453 and 25C575) + Not included with 25C453, 25C575, 25C464, or 25C968 MOTOR, ATEX� 0.37 kW, 230/400 25C576. Must be ordered separately. V, TEFC, XP 50 HZ (model...
  • Page 22 Parts Models 25C462, 25C470, 25C471, 25C465, 25C472, 25C473 Pressure Tank Mount . 14 3A4553 H...
  • Page 23 Parts Part No. Description Part No. Description ASSEMBLY, C19837 SCREW, CAP, SOCKET HOUSING/FLANGE, BEARING HEAD; 3/8–16 x 1” 17N900 FLANGE, AGITATOR, 17P459 SCREW, WING; 3/8–16 x 1.5” PRESSURE TANK (Not Shown) 17N588 SEAL, PTFE 196309 GASKET 15Y360 SPACER, SEAL, ASME SHAFT 188784 IMPELLER, 4”;...

  • Page 24: Power Usage Charts

    Power Usage Charts Power Usage Charts In the following charts, the power measured includes the VFD power usage. That power was measured with 480 VAC 3 ph line voltage with no gear reductions. Material Viscosity Power 300 cp 100 cp 0 cp Agitator RPM .
  • Page 25 Power Usage Charts Material Viscosity Power 300 cp 100 cp 0 cp Agitator RPM . 17: UL Motor with 12 in. (30 cm) Diameter Impeller Material Viscosity 300 cp Power 100 cp 0 cp Agitator RPM . 18: ATEX Motor with 4 in. (10 cm) Diameter Impeller 3A4553 H...
  • Page 26 Power Usage Charts Material Viscosity 300 cp Power 100 cp 0 cp Agitator RPM . 19: ATEX Motor with 8 in. (20 cm) Diameter Impeller Material Viscosity Power 300 cp 100 cp 0 cp Agitator RPM . 20: ATEX Motor with 12 in. (30 cm) Diameter Impeller 3A4553 H...

  • Page 27: Dimensions

    Assemblies without Gear Reducers Flange Mount Models Quick Clamp Models Pressure Tank Mount Models Reference in. (cm) in. (cm) in. (cm) ATEX ATEX ATEX 25C454 25C463 25C453, 25C464, 25C462, 25C465, 25C575 25C576 25C470, 25C472, 25C471 25C473 11.62 (29.5) 8.84 (22.5) 11.62 (29.5) 8.84 (22.5)
  • Page 28 Assemblies with Gear Reducers Flange Mount Models Quick Clamp Models Pressure Tank Mount Models Reference in. (cm) in. (cm) in. (cm) ATEX ATEX ATEX 25C454 25C463 25C453, 25C464, 25C462, 25C465, 25C575 25C576 25C470, 25C472, 25C471 25C473 13.03 (33.2) 11.37 (28.9) 12.70 (32.3) 10.99 (27.9)

  • Page 29: Technical Specifications

    Technical Specifications Technical Specifications Electric Direct Drive Agitators Motor Power UL: 3/4 hp� ATEX: 0.37 kW UL: Explosion Proof Class 1 Group C&D Class 2 Group F&G T3C Motor Hazardous Location Approvals ATEX/IECEx : Ex II 2G Ex d IIB T4 Gb (see declarations included with motors) Motor Electrical Requirements UL: 230/460 VAC, 60 Hz, 3 Phase...

  • Page 30: Graco Standard Warranty

    With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
