Installation
™
LineLazer
V Standard Series Kit for Adding a
Battery and Charging System
Kit Number 25A526.
For installation of a Battery and Charging System on LineLazer
For professional use only.
Important Safety Instructions
Read all warnings and instructions in this manual and in the equipment manuals.
Be familiar with the controls and the proper usage of the equipment.
Save these instructions.
ti28698a
3A3456A
™
V Standard Series.
EN
Advertisement
Related Manuals for Graco LineLazer V Standard Series
Summary of Contents for Graco LineLazer V Standard Series
- Page 1 Installation ™ LineLazer V Standard Series Kit for Adding a 3A3456A Battery and Charging System Kit Number 25A526. ™ For installation of a Battery and Charging System on LineLazer V Standard Series. For professional use only. Important Safety Instructions Read all warnings and instructions in this manual and in the equipment manuals. Be familiar with the controls and the proper usage of the equipment.
-
Page 2: Grounding Procedure
Grounding Procedure (For Flammable Materials Only) Grounding Procedure Pressure Relief Procedure (For Flammable Materials Only) Before servicing the sprayer, pump pressure must be relieved. FIRE AND EXPLOSION HAZARD This equipment must be grounded to reduce the risk of SKIN INJECTION HAZARD static sparking. -
Page 3: Remove Cover
Remove Cover Remove Cover ti28697a Installation... - Page 4 ™ LineLazer V 3900, 5900 & 200HS ™ LineLazer V 3900, 5900 & 200 Kit 25A526 - Charging Board Installation BLACK ti28412a Ref. Part Description 25A495 KIT, repair, charger board 106520 SCREW, thd forming, pnh 17J123 PLATE, cover 128978 SCREW, mach, slot hex wash head Installation...

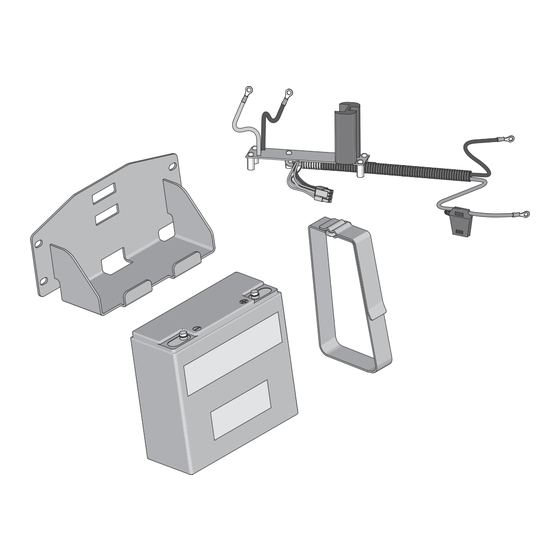

- Page 5 ™ LineLazer V 3900, 5900 & 200HS ™ LineLazer V 3900, 5900 & 200 Kit 25A526 - 12V, 22 AH Battery Installation ti28411a Ref. Part Description 16U160 BATTERY, 22 AH, sealed 17H644 SHELF, battery 126949 STRAP, battery 107257 SCREW, thd forming 111307 WASHER, lock, external 128131 SCREW, cap, hex head Installation...
- Page 6 Connect Battery and Install Cover Connect Battery and Install Cover ti28520a Installation...
- Page 7 ™ LineLazer V 3900, 5900 & 200HS ™ LineLazer V 3900, 5900 & 200 Kit 25A526 - Wiring Diagram FUSE HOLDER BLACK CHARGER BOARD (24Y443 - HP AUTO) BLACK 30A AUTOMOTIVE FUSE REGULAR ATO ti28413a Installation...
