Ruckus Wireless ZoneFlex R720 Quick Setup Manual

R720 Access Point
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions on how to set up
your Ruckus Wireless ZoneFlex R720 Dual Band 802.11ac Multimedia Wi-Fi
Access Point (AP). After completing the steps described in this Guide, you
will be able to place the R720 at your site and provide wireless network
access to users. The rest of this document refers to the R720 as an AP.
NOTE: The minimum software revision for the R720 is ZoneFlex
standalone AP base image 106.0 or later, or SmartZone 3.5 or later, or
ZoneDirector 10.0 or later.

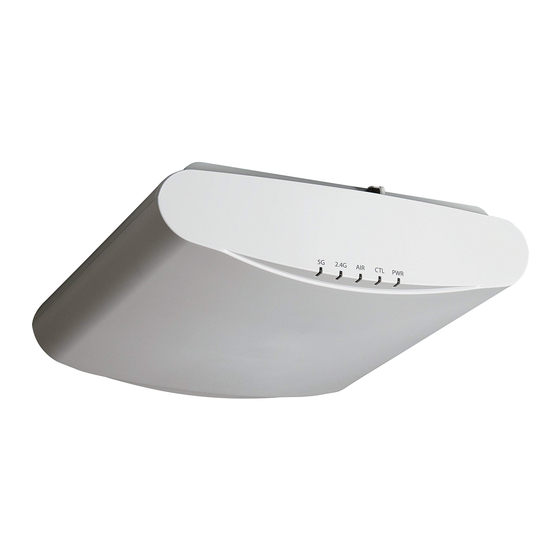

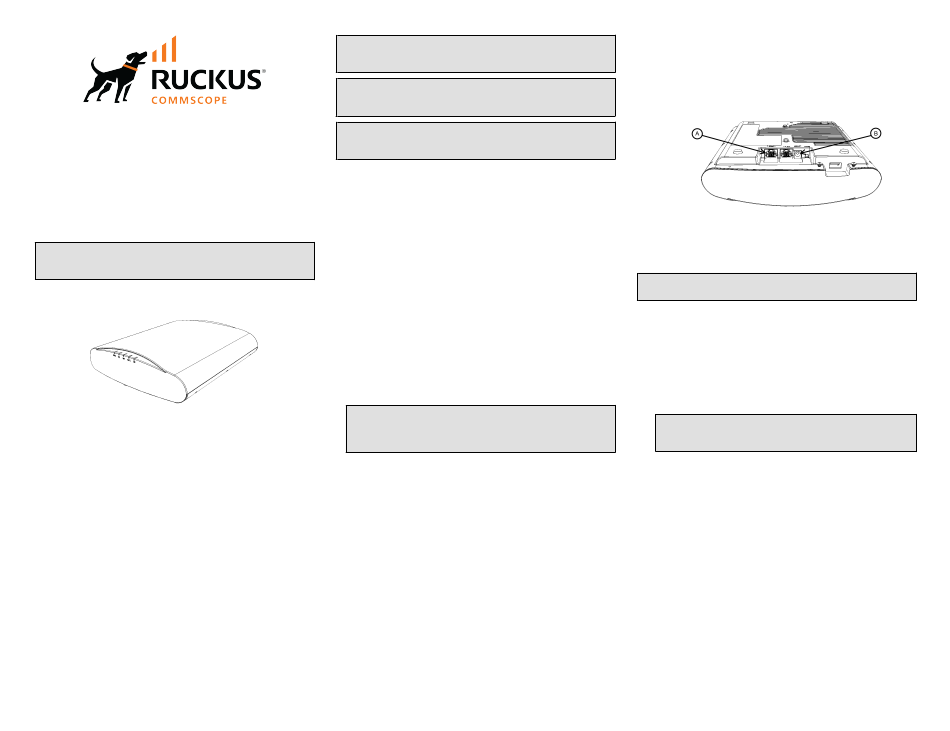

FIGURE 1 ZoneFlex R720 AP
This Guide in Other Languages
• 请从以下网站获得该指南的简体中文版
https://
support.ruckuswireless.com.
• Vous trouverez la version française de ce guide à l'adresse suivante
https://support.ruckuswireless.com.
• このガイドの日本語版は
https://support.ruckuswireless.com
ください。
• 이 가이드의 한국어 버전은 웹 사이트
(https://
support.ruckuswireless.com) 에서 확인하시기 바랍니다.
• Veja a versão em português (Brasil) deste guia em
support.ruckuswireless.com.
• Puede ver la versión en español (América Latina) de esta guía en
support.ruckuswireless.com.
Before You Begin
Before deploying Ruckus Wireless testtestettststaasgshgsghad asda
products, please check for the latest software and the release
documentation.
• Release Notes and other user documentation are available at
support.ruckuswireless.com/documents.
• Software upgrades are available at http://support.ruckuswireless.com/
software.
• Software license and limited warranty information are available at
http://support.ruckuswireless.com/warranty.
Copyright © 2024 CommScope, Inc. All rights reserved.
Published March 2024, Part Number 800-70874-001 Rev D
CAUTION! The minimum software revision for the R720 is ZoneFlex
standalone AP base image 106.0 or later, or SmartZone 3.5 or later, or
ZoneDirector 10.0 or later.
WARNING! The minimum software revision for the R720 is ZoneFlex
standalone AP base image 106.0 or later, or SmartZone 3.5 or later, or
ZoneDirector 10.0 or later.
IMPORTANT-QSG: The minimum software revision for the R720 is
ZoneFlex standalone AP base image 106.0 or later, or SmartZone 3.5 or
later, or ZoneDirector 10.0 or later.
Package Contents
• R720 Access Point
• One T-bar mounting assembly kit, including:
– One T-bar bracket (2 separate plastic parts)
– Two each 1.0" L x No. 8 steel Phillips panhead mounting screws and
plastic wall anchors
• Regulatory flyer
• Product warranty statement
• Declaration of Conformity, if required
• This Quick Setup Guide
Step 1: Collecting Setup Requirements, Hardware,
and Tools
• A computer running Windows 7 (procedures for common operating
systems are similar).
• One Cat 5e (or better) Ethernet cable.
• A Ruckus Wireless 48VDC power adapter (sold separately). --OR-- An
802.3at-compliant Power over Ethernet (PoE) switch or PoE injector.
NOTE: The PoE switch port must run link layer discovery protocol
(LLDP) power over Ethernet/MDI (PoE+) in order for the R720 to
operate in full-power mode. This may require enabling both LLDP
and Power via MDI (dot3) on the switch, if available
Optional hardware and tools:
• Customer-supplied small padlock with a 3.5mm (0.14") or smaller
でご覧
shackle diameter, used to fasten the AP to the secure mounting bracket
or the T-bar bracket.
• Customer-ordered Ruckus Wireless 902-0120-0000 secure mounting
bracket kit:
https://
– If you are mounting the AP on a flat surface using the secure
mounting bracket kit, then you need an electric drill with 4.75mm
https:// (3/16") drill bits.
– If you are mounting the AP on a pipe or pole using the secure
mounting bracket kit, then you will also need a 38.1mm to 63.5mm
(1.5" to 2.5") pipe or pole, two included stainless steel clamps, and
hand tools to tighten the clamps.
Step 2: Connecting Your Computer to the AP
http:// 1. After removing your AP from its package, place it next to your
computer.
2. Using an Ethernet cable, connect your computer's network port to
the 2.5 Gbps POE In port on the AP (A in
3. Using an AC adapter (sold separately), connect the AP 48VDC port (B
in Figure
Alternatively, connect the 2.5 Gbps POE In port to a PoE injector or
switch for both power and network connectivity.
FIGURE 2 AP Ports
4. Verify that the PWR LED on the AP is a steady green.
Step 3: Preparing Your Computer for AP Setup
NOTE: The following procedures assume Windows 7 as the operating
system. Procedures for other operating systems are similar.
1. On your Windows 7 computer, configure your network adapter from
the Local Area Connection settings as follows:
Start > > Control Panel > Network and Sharing Center > Change
Adapter Settings
2. Edit the TCP/IPv4 address settings as follows:
Local Area Connection > Properties > Internet Protocol Version 4
(TCP/IPv4) > Properties
The Internet Protocol Version 4 (TCP/IPv4) Properties dialog box
appears.
IMPORTANT-QSG: Write down all of the currently active settings
so you can restore your computer to its current configuration later
(when this process is complete).
3. Select Use the following IP address (if it is not already selected) and
then make the following entries:
• IP address: 192.168.0.22 (or any available address in the
192.168.0.x network, except 192.168.0.1)
• Subnet mask: 255.255.255.0
• Default gateway: 192.168.0.1
Leave the DNS server fields empty.
4. Click OK to save your changes. Your changes are put into effect
immediately.
Step 4: Logging Into the AP
1. As specified in
1, the computer should be directly connected to your AP through one
of the Ethernet ports and powered on, ready for setup.
2. On your computer, open a Web browser window.
3. In the browser, type this URL to connect to the AP:
https://192.168.0.1
Figure 2).
4. Press Enter to initiate the connection. When a security alert dialog
box appears, click OK/Yes to proceed.
2) to a convenient (and protected) power source.
Step 3: Preparing Your Computer for AP Setup on page
