R700 Access Point
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions
on how to set up your Ruckus Wireless R700 Dual Band
802.11ac Multimedia Wi-Fi Access Point. After completing
the steps described in this Guide, you will be able to place
the Access Point (AP) at your site and provide wireless
network access to users.
Note: The R700 requires a minimum of ZoneFlex (ZF)
firmware version 9.8 or later.
T G O L
HIS UIDE IN THER ANGUAGES
请从以下网站获得该指南的简体中文版
https://support.ruckuswireless.com.
Vous trouverez la version française de ce guide à l'adresse
suivante https://support.ruckuswireless.com.
こ の ガ イ ド の日本語版は
https://support.ruckuswireless.com
で ご 覧 く だ さ い。
이 가이드의 한국어 버전은 웹 사이트
(https://support.ruckuswireless.com) 에서 확인하시기 바랍니다 .
Veja a versão em português (Brasil) deste guia em
https://support.ruckuswireless.com.
Puede ver la versión en español (América Latina) de esta guía en
https://support.ruckuswireless.com.
Copyright © 2013 Ruckus Wireless, Inc.
Published December 2013, Part Number 800-70453-001 Rev C
B Y B
EFORE OU EGIN
Before deploying Ruckus Wireless products, please check for
the latest software and the release documentation.
• User Guides and Release Notes are available at
http://support.ruckuswireless.com/documents
• Software Upgrades are available at
http://support.ruckuswireless.com/software
• Open Source information is available at
http://opensource.ruckuswireless.com
• Software License and Limited Warranty are available at
http://support.ruckuswireless.com/warranty
P C
ACKAGE ONTENTS
• R700 Access Point
• Mounting screws and anchors (2)
• T-bar bracket (2 assembled parts)
• Unit removal pin
• Regulatory flyer
• Product warranty statement
• Declaration of Conformity, if required
• This Quick Setup Guide
S 1: C S R
TEP OLLECT ETUP EQUIREMENTS
• A computer running Windows 7 (procedures for other OS's
are similar)
• Two Cat 5e Ethernet cables
• An AC power adapter (sold separately), or
• An 802.3af or 802.3at -compliant Power over Ethernet (PoE)
switch or PoE injector
IMPORTANT! If the AP is deployed with a ZoneDirector, then
refer to the ZoneDirector Quick Setup Guide and connect the
AP to your local network.
S 2: C
TEP
.
.
.
.
1 After removing your Ruckus Wireless AP from its pack-
age, place it next to your computer.
2 Using an Ethernet cable, connect your computer's net-
work port to one of the two ports on the AP.
3 Using an AC adapter (sold separately), connect the AP to
a convenient (and protected) power source.
Alternatively, connect the 10/100/1000 POE port to a PoE
injector or switch for both power and network connectiv-
ity.
4 Verify that the Power LED on the external enclosure is a
steady green.

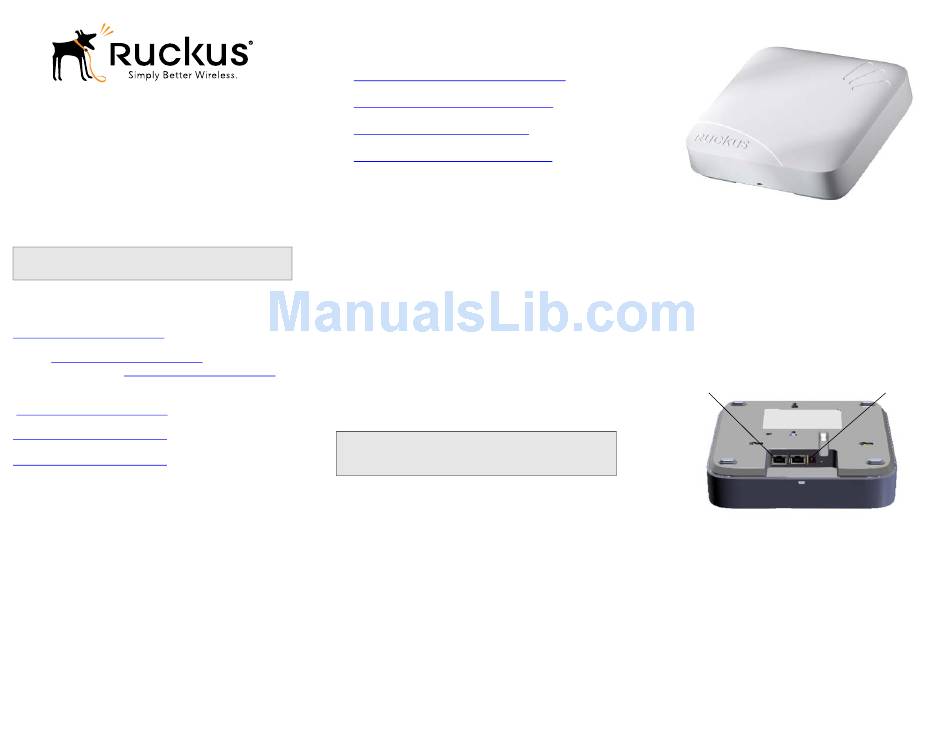

PoE In
AP Y C
ONNECT THE TO OUR OMPUTER
DC input
