Toa ST-16A Instruction Manual

SPEAKER STAND
1. SAFETY PRECAUTIONS
• Before installation or use, be sure to carefully read all the instructions in this section for correct and safe
operation.
• Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or
cautions regarding safety.
• After reading, keep this manual handy for future reference.
WARNING
• Do not mount the speaker of 7 kg or more. The stand or its internal pipe may fall down or drop, resulting in
personal injury. Even though the speaker weight is below 7 kg, do not use that speaker if the stand is made
unstable.
• Do not extend the internal pipe beyond the MAXIMUM point marked in red. Doing so may make the stand
unstable, and cause the stand or its internal pipe to fall down or drop, resulting in personal injury.
• Avoid installing the stand in the following locations. Otherwise, the mounted speaker may drop or the stand
may fall, resulting in personal injury.
· Doorway or other high traffic area where people may trip on the stand.
· Locations where the unit is exposed to a strong wind.
· Unstable locations, such as on a rickety table or a slanted surface.
Important: Even in locations other than the above, if the unit may fall down, take appropriate fall preventive
measures.
• When adjusting the stand height with the speaker mounted, hold the speaker firmly. Doing otherwise may
cause the stand to fall, resulting in personal injury and/or property damage.
• Fully expand the legs. If the legs are not fully expanded, the stand may fall down, resulting in personal injury.
2. HOW TO USE

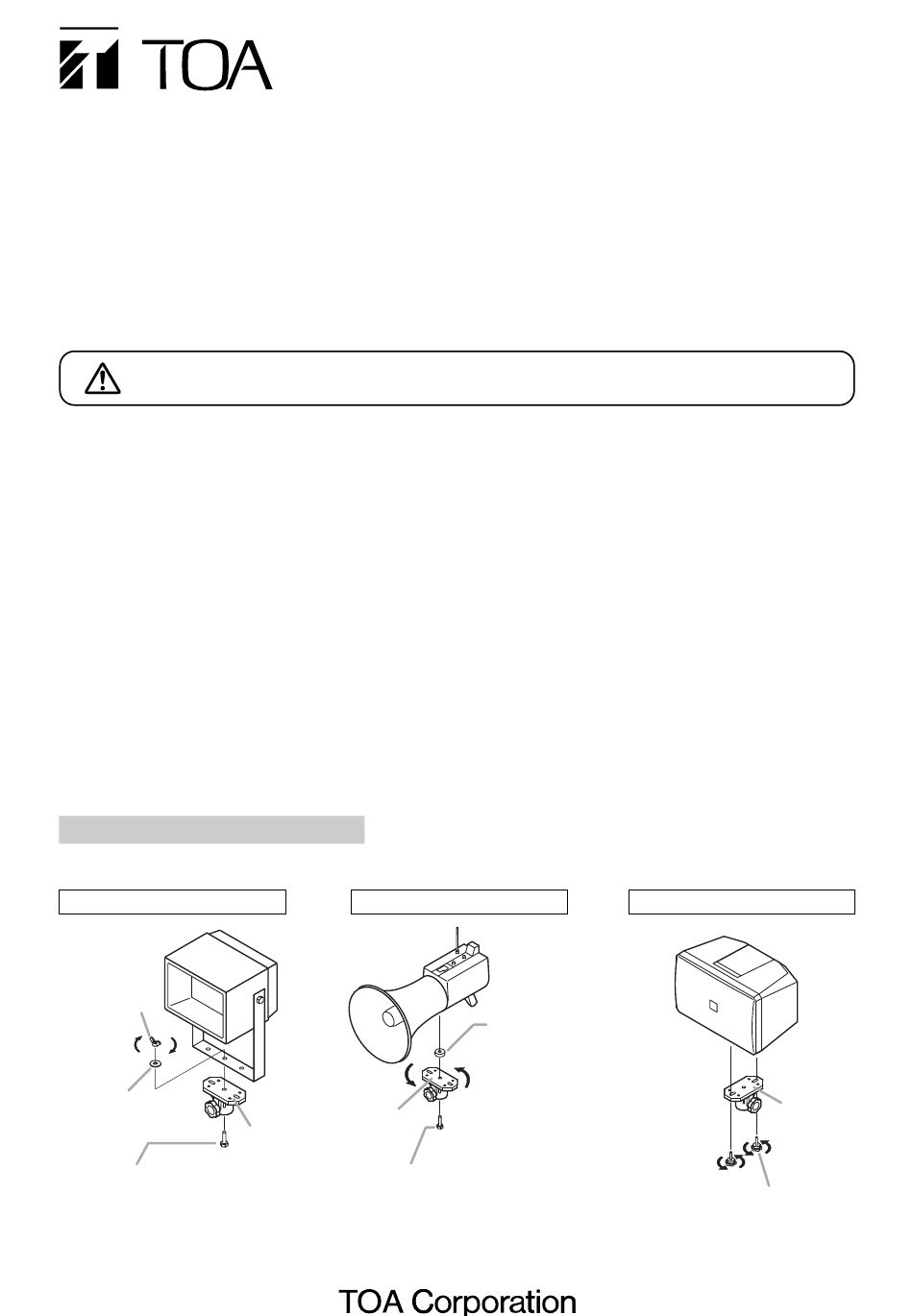

Attach the bracket to the speaker
Step 1. Attach the bracket to the speaker as shown below.
Attachment to the horn speaker
Butterfly nut
Washer
Hexagon bolt
Insert the hexagon bolt into the hexagonal
hole located inside the bracket and tighten
the bolt to attach the bracket.
Indicates a potentially hazardous situation which, if mishandled, could
result in death or serious personal injury.
Attachment to the megaphone
Bracket
Bracket
Hexagon bolt
Insert the hexagon bolt into the hexagonal hole
located inside the bracket and tighten the bolt
rotating the bracket in the direction of the arrow
to secure the bracket.
INSTRUCTION MANUAL
Attachment to the FGM speaker
Spacer
Be sure to use the spacer.
If not used, the thread in the
megaphone may be destroyed.
Note
Do not use this spacer for the
megaphones ER-2230W and
WR-2930W.
ST-16A
Bracket
Speaker
mounting screw
