Toa HY-CN7B Installation Instructions Manual

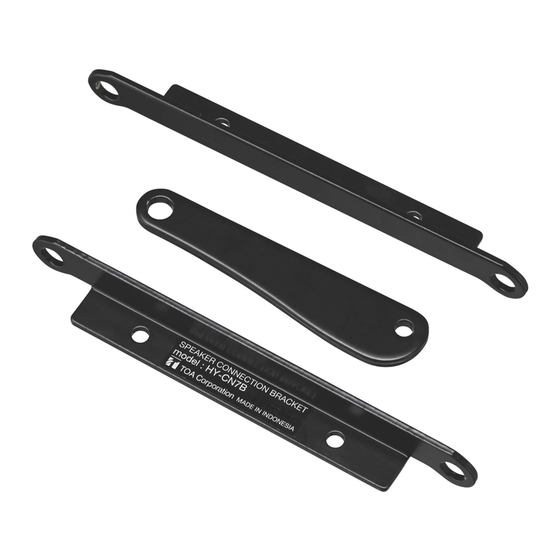

SPEAKER cONNEcTION bRAcKETS
HY-cN7b, HY-cN7W, HY-cN7b-WP, HY-cN7W-WP
Thank you for purchasing TOA's Speaker Connection Brackets.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

TAbLE OF cONTENTS

1. SAFETY PREcAUTIONS ............................. 1
2. GENERAL DEScRIPTION ........................... 1
3. cOMPLETE ASSEMbLY
(Joined speaker example using
two HX-7 Series Speaker Systems) ........... 2

1. SAFETY PREcAUTIONS

• Before installation or use, be sure to carefully read all the instructions in this section for correct and safe
operation.
• Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or
cautions regarding safety.
• After reading, keep this manual handy for future reference.
WARNING
Indicates a potentially hazardous situation which,
if mishandled, could result in death or serious
personal injury.
• (HY-CN7B and HY-CN7W only)
Since the bracket is designed for indoor use, do not
install it outdoors. If installed outdoors, the aging
of parts causes the speaker to fall off, resulting in
personal injury. Also, when it gets wet with rain,
there is a danger of electric shock.
• Do not use other methods than specified to mount
the bracket. Extreme force is applied to the speaker
and it could fall off, possibly resulting in personal
injuries.
• Tighten each nut and bolt securely. Ensure that
the bracket has no loose joints after installation
to prevent accidents that could result in personal
injury.
• The bracket is exclusively used to join together two
HX-7 Series Speaker Systems. Using the bracket

2. GENERAL DEScRIPTION

The HY-CN7 Series brackets are used to join together two HX-7 Series speaker systems into a single system.
Joining speakers together not only allows more accurate control of directivity for lower frequencies, but also
enhances the audibility of amplified speech in locations that suffer from long reverberation times or high
background noise levels. The HY-CN7B and HY-CN7W brackets are designed for indoor installations, and the
HY-CN7B-WP and HY-CN7W-WP brackets are for outdoor installations under eaves or other areas protected
from direct exposure to the elements.
INSTALLATION MANUAL
4. JOINING TWO SPEAKER SYSTEMS ............ 2
5. INSTALLING JOINED SPEAKER SYSTEMS
(Indoor installations only) .......................... 6
6. SPEcIFIcATIONS ........................................ 8
in combination with other speakers may cause the
speaker to fall off, resulting in personal injury.
• Avoid installing the speaker in indoor swimming
facilities that are not well ventilated. In such
locations, the mounting hardware may be vulnerable
to corrosion, eventually allowing the speaker to fall
resulting in personal injury.
cAUTION
Indicates a potentially hazardous situation which,
if mishandled, could result in moderate or minor
personal injury, and/or property damage.
• Avoid touching the bracket's sharp metal edge to
prevent injury.
• Have the bracket checked periodically by the shop
from where it was purchased. Failure to do so may
result in corrosion or damage to the bracket that
could cause the speaker to fall, possibly causing
personal injury.
