Toa HY-TR1 Instruction Manual

TRIM RING
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.
1. SAFETY PRECAUTIONS
• Be sure to read the instructions in this section carefully before use.
• Make sure to observe the instructions in this manual as the conventions of safety symbols and messages
regarded as very important precautions are included.
• We also recommend you keep this instruction manual handy for future reference.
WARNING
• Leave the installation to your TOA dealer because the installation requires expert knowledge. Improper
installation may cause the speaker to fall, resulting in personal injury and/or property damage.
• Install the mounting hardware in a location that can structurally support the weight of the mounting hardware
and the speaker. Doing otherwise may result in the speaker falling down and causing personal injury and/or
property damage.
• Do not use other methods than specified to mount the unit. Extreme force is applied to the unit and the unit
could fall off, possibly resulting in personal injuries.
• Tighten each screw securely. Ensure that the unit has no loose joints after installation to prevent accidents
that could result in personal injury.
• Use the specified speaker in combination. Doing otherwise may cause the speaker or component to fall off,
resulting in personal injury.
CAUTION
• Avoid touching the unit's sharp metal edge to prevent injury.
2. GENERAL DESCRIPTION

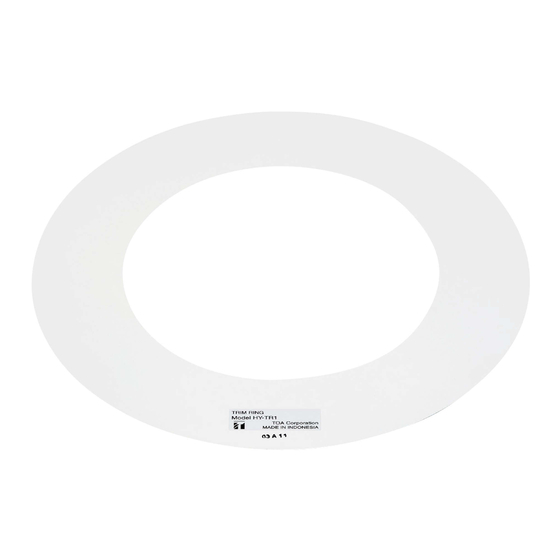

TOA's HY-TR1 Trim Ring is used to install flush-mounted ceiling speakers in larger-than-designated mounting
holes. Using up to two HY-TR1 rings in combination with other mounting hardware allows the speaker to be
installed in mounting holes of from 200 to 300 mm (7
3. SPECIFICATIONS
Mounting Hole Diameter
Finish
Dimensions
Weight
Usable Speaker
Note: The design and specifications are subject to change without notice for improvement.
Indicates a potentially hazardous situation which, if mishandled, could
result in death or serious personal injury.
Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.
7
/ " – 11
8
7
ø200 – ø300 mm (7 / " – 11
8
Surface-treated steel plate, white, paint
ø320 mm (1.2 mm in thickness) or ø12
500 g
F-122C, F-122CU, F-2322C, F-2352C
INSTRUCTION MANUAL
13
/ ") in diameter.
16
13
/ ")
16
19
/ " (3/64" in thickness)
32
HY-TR1
