Table of Contents Table of Contents Trademarks & Copyrights Electrical Device Compliance Notices Safety Warnings and Cautions Compliance Notices Industry Canada European Union EMC Directive Conformance Statement Chapter 1 - Product Overview Product Introduction Chapter 2 - Getting Started Front Panel Panel Diagram Model Indicator Decals Front Panel LCD Quick Views...
Page 3
EN31-MP2 Video Specs (MPEG2): EN31-MP4 Video Specs (AVC): IF, L-Band Modulator + 10MHz (option) - IF/LB/10M-01 Appendix C - DB9-M Analog audio input pinout Appendix D - Adtec Digital Support & Service Telephone and Email Support Preparing for Support SLA Options...
Page 4
Trademarks & Copyrights Copyright: ( c) 2012-Present: Adtec Digital. All rights reserved. This document may not, in whole or in part, be copied, photocopied, reproduced and translated, or reduced to any electronic medium or machine-readable form without prior written consent from Adtec Digital.
Page 5
Electrical Device Compliance Notices Safety Warnings and Cautions For your safety and the proper operation of the device: ● This unit must be installed and serviced by suitably qualified personnel only. ● Do not break the warranty seals on the device or open the lid. Only approved service technicians are permitted to service this equipment.
Page 6
● Consult the dealer or an experienced radio/TV technician for help. Warning: C hanges or modifications to this device not expressly approved by Adtec Digital could void the user’s authority to operate the equipment. Industry Canada This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations.
Page 7
ATSC and DVB tables through ASI and IP transport streams. The EN31 can be ordered with optional satellite modulation for contribution and distribution applications. It inherits Adtec’s broadcast quality compression, advanced feature set, service performance, and reliability in a dense two-channel platform targeted towards broadcasters, cable and IP compression applications.
Page 8

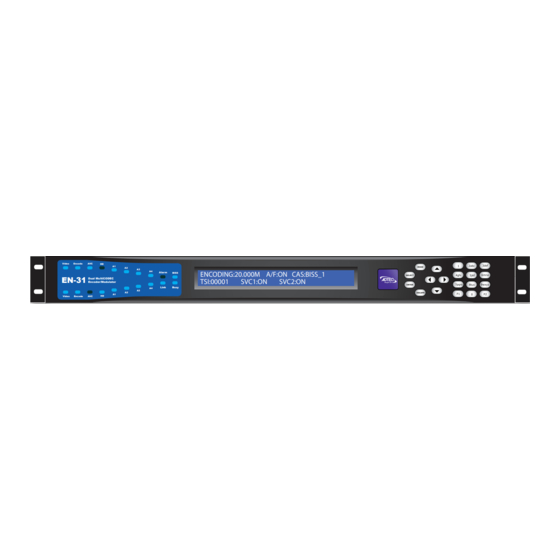

Chapter 2 - Getting Started Front Panel The Function Buttons and Directional Keypad of the EN-31 are used to configure and monitor the signal input and output of the device. Panel Diagram Model Indicator Decals...
Page 9
Front Panel LCD Quick Views There are 8 Quick Views that can be accessed by the front panel LCD by pressing the up and down arrows. 1) E ncoding State: When in normal encoding mode, the LCD will display the following information.
Page 10
7) T SoIP State: T his quick view displays the status of IP Transport mode, RTP, FEC mode, and number of selected services. Up to 4 destination IP addresses can be sent simultaneously. 8) ASI Remux State: This quick view displays the status of ASI Remux status if the feature is enabled.
Page 11
Audio Encode Indicators - Channel 1 & 2 Indicator Function A1 -A4 Off - Audio encoder configuration is set to off. On - Audio encoder configuration is set to encode or passthru. Blink - Audio pair is enabled but there is no payload on the input System Indicators ...
Page 12
Modulator Lineup This feature enables the operator to quickly view and/or configure select modulator RF output parameters. The parameters available in this menu are; 1. Carrier Mode: [ PURE_CARRIER or MODULATED] 2. Transmit: [ ENABLED or DISABLED] 3. Output Power: [ in 0.5dB increments ] 4.
Page 13
Front Panel Menu Structure Services Menu The following diagram illustrates the structure and flow of the S ervices Menu on the Adtec EN-31 device. TX MUX Rate, Table, and TSID are global configurations, while items under the denoted << >> parallel menu are unique to each encoder :...
Page 14
associated with which Video & Audio PIDs. This value should be entered in decimal format Logical This setting allows you to set the logical 1 - 9999 *.ECMD# LCN Channel channel number that will be used to tune in Number with a set top box or television.
Page 15
RF Tx Menu The following diagram illustrates the structure and flow of the R F Tx Menu on the Adtec EN-31 device. This menu will not be available on units without the optional RF modulators. Item Function Options Transmit...
Page 16
F req = Freq - Freq Modulator Uplink Local Oscillator For Inverted Spectrum Mode: F req = Freq Modulator Local Oscillator Freq Uplink Note:This field is provided for convenience purposes only and to aid in the automatic calculation of the Modulator frequency.
Page 17
Frame Type options are either Normal Normal or Short. The Normal 64,800-bit FEC frame provides better protection but introduces more latency compared to the Short 16,200-bit FEC frame. Therefore, the Short FEC frame type should be selected in applications where latency is critical and the longer frame type should be used to optimize protection.
Page 18
Carrier Mode The Carrier Mode control allows the Pure Carrier operator to select ON for normal operations or select one of four unmodulated carriers. The Pure Carrier option will provide an un-modulated output carrier at the desired frequency and output power.
Page 19
Send Tx IP Address The IP Address of which the user-defined; *.ECMD0 MSI # Multicast or Unicast is broadcast. numeric field in Multicast addressing supports the format transmission of a single IP xxx.xxx.xxx.xx datagram to multiple receivers. Valid Multicast addressing range is 224.10.XXX.XXX to 239.XXX.XXX.XXX.
Page 20
Time to live is a numeric value 1 - 255 *.ECMD0 TTL # from 1 to 255 that specifies the number of iterations or transmissions the packet can undergo before it is discarded. The default value is 7. Multicast sets the physical connector (on Ethernet *.ECMD0 MCN # Connector...
Page 21
Video Menu The following diagram illustrates the structure and flow of the V ideo Menu on the Adtec EN-31 device: Control Function Options API Command Input Video Input designates the type *.ECMD# INP of video signal being received, COMPOSITE either SDI or Composite.
Page 22
by downstream devices. The configuration can be set to OFF, WSS for AFD ‘passthrough’ or manually set. GOP Type GOP Type can be set to open or OPEN *.ECMD# GOP closed. An OPEN GOP uses CLOSED referenced pictures from the previous GOP at the current GOP boundary.
Page 23
Audio Menu The following diagram illustrates the structure and flow of the A udio Menu on the Adtec EN-31 device: Control Function Options API Command << 1 - 2 >> Parallel Menus. Surround Determines the surround OFF, DD, DD-06, *.ECMD# SMO 0...
Page 24
one-decibel increments, with a range of -18 to +8 decibels. Available only in Encode Mode. Sync Audio Sync set the audio sync +/- 800 ms *.ECMD# AUS (0-3) offset. The valid range is +/- 800 milliseconds. Non functional for Musicam Encode Format Determines the format of the STEREO...
Page 25
problematic (or non-compliant) ECC words. SDI Audio 1 and 2 Per SMPTE 272/299M SDI supports embedded audio Groups Group 3 and 4 1, 2, 3, 4. Each group has 2 channels and each channel is a stereo pair. The same menu options are available for both Channel 1 and Channel 2 Note:...
Page 26
PIDs Menu The following diagram illustrates the structure and flow of the P IDs Menu on the Adtec EN-31 device: Control Function Options API Command PMT PID Configures PID marked Hex value 0x0020 - *.ECMD# PPI for the PMT...
Page 27
turned on, waveform closed captions and teletext will not be able to be processed. ...
Page 28
VBI Menu The following diagram illustrates the structure and flow of the V BI Menu o n the Adtec EN-31 device: Control Function Options API Command VBI Source VBI Source allows selection of *.ECMD# VBS Composite or SDI for as vbi data Composite source.
Page 29
CAS Menu The following diagram illustrates the structure and flow of the C AS Menu on the Adtec EN-31 device: Control Function Options API Command Channel 1 Turns Service 1 *.ECMD0 ECR Encryption ON/OFF Channel 2 Turns Service 2 *.ECMD1 ECR...
Page 30
System Menu The following diagram illustrates the structure and flow of the S ystem Menu on the Adtec EN-31 device: Login Units ship with the front panel logged in by default. If you become logged out and are prompted for a password, use the following key sequence for access.
Page 31
Backlight Dim Delay Action Press <Select> Using the <Up> and <Down> arrows, select the value you wish. Press <Enter> to save your selection Network Sub Menu Item Function Options Ethernet IP Address This is the address of your device user-defined using the numeric on your network specific to the keypad Ethernet Port.
Page 32
allows only the designated keypad Stealth IP Address to communicate with the unit for Default is 0.0.0.0. Using all 0s FTP and other services. This effectively turns this function control allows one-point override off. access to the Stealth IP Address. Time Sub Menu Item Function...
Page 33
Management Protocol (SNMP) CLEAR feature. We support SNMPv2c version. Read-only The Simple Network user-defined community Management Protocol (SNMP) Read-Only Password. Default Value: "adtec" Read-write The Simple Network user-defined community Management Protocol (SNMP) Read-Write Password. Default Value: "none" Trap The Simple Network...
Page 34
Feature Sub Menu Item Function Options Permanent ID This is one of the unique IDs read only value for your unit. This number along with your serial number are used to generate permanent feature keys. Temporary ID This is the other unique ID. It read only value along with the permanente ID, and serial number are...
Page 35
Back Panel Diagram Processor Connectors Connection Function AC Power Redundant AC Power, Standard 3 pin computer power plug (Auto range 70-240 VAC Input) COM1 Serial Port used for Troubleshooting COM2 API Serial Communication Interface GigE Interface- Default Management Port GigE Interface- Default TSoIP Output GPIO Tally and Control Port Video/Audio Inputs ...
Page 36
EAS Audio In Vertical single RCA jack EAS Audio Loop Out Vertical single RCA jack ASI Input for Remux BNC 75 Ohm ASI Input to Modulator BNC 75 Ohm (Future Integration) TSoIP Input to Modulator (Future Integration) Output Connection Function ASI Out BNC 75 Ohm, Asynchronous Serial Interface (EN 50083-9) RF L-Band...
Page 37
Access the application by pointing your web browser to the unit's IP address. Log in to the application by clicking the " Proceed to Login" button and typing in the user name ' adtec' and the password ' none' in the pop-up box that appears.
Page 38
The application has two operating windows, the S tatus Window and the M ain Window : Status Window: The Status Window is fixed on the left-hand side of the screen- it will display regardless of what function is being displayed in the Main Window. The current status parameters of the unit's are always in view and are updated in real time.
Page 39
You can upgrade your Adtec device's firmware via built-in web-based application, described in the U pgrade Tab section, or via a Telnet/FTP session, described in this article. To update your Adtec device 's firmware via a Telnet session, perform the following: Manual Upgrade Process Step Action Obtain the desired firmware version file from www.adtecftp.com...
Page 40
FTP is only useful for collecting logs from the device. How to Use API Commands The Adtec EN-31 device is unique in that it handles two physical encoders. To accommodate commands for controlling both encoders, you will need to specify which encoder you are working with for each command you issue.
Page 41
How Video Rates are Configured (Example is pertinent to MPEG2) Video rates can be configured manually or automatically. The factory default is to automatically set the video rate based on TMR. This option is referred to as VAF (Video Autofill). VAF determines what the TMR is.
Page 42
GO button. To disable EAS mode press the large STOP button. How to configure Network EAS Triggering By default, the EN-31 is configured to send an EAS trigger over the local network to all Adtec dual channel encoders (HDMI2QAM, YUV2QAM, EN-20 or EN-31). This feature can be disabled by unchecking the box next to “Network EAS Triggering”, then pressing the apply...
Page 43
How passthru audio function - Dolby E / 5.1 / 2.0, Dolby D, LPCM The Adtec EN-31 encoder supports four pairs of audio encoding or two pairs of passthru per service. An audio passthru consists of a compressed bitstream ( Dolby E 20 Bit / Dolby E 16 Bit / Dolby Digital / Linear Acoustic Stream Stacker 2 ) or an uncompressed stereo pair ( LPCM ) from embedded SDI passed into the egress transport stream ( IP, *RF, ASI ).
Page 44
not being presented on the corresponding input. The SDI matrix can be changed to each pair without restarting the encode session. Once hash is heard, then a compressed bitstream should be present. Set the mode back to Passthru for the automatic detection mechanism to configure the Dolby type and bitrate.
Page 45
○ Even if Service 2 is set to OFF, Service 1 can still only allocate 50% of the Audio resources Encoding: The EN-31 has the following Audio Encoding capabilities and resources. Different CODECs require a different amount of resources. The EN-31 has logic built-in so that the user cannot exceed the audio resources. CODEC MODE...
Page 46
The important thing is to be aware of different configurations and how resource intensive they are. If an EN-31 is not accepting the settings being submitted, then check the other pairs of audio and ensure the threshold is not being exceeded.
Page 47
How to use ASI Remux Terminology: “ASI Remux” refers to the ability for an Adtec EN to accept a Transport Stream (TS) via ASI input, and multiplex the incoming service or services with it’s locally encoded service. The result is that the transport stream output becomes a MPTS containing the services from the ASI input in addition to the locally encoded service.
Page 48
PMT - Program Map Table. This MPEG-2 table specifies PID values for components of programs. The Adtec EN-3X and EN-100 encoders have an ASI input available for the ASI remux feature. Further information can be read about ASI Remux in the ASI Remux article. In some cases, users may want to add custom PID’s from third party generators, such as a DVB Subtitles, into...
Page 49
As EN encoders do not perform PID conflict resolution at this time, the PID’s inserted into the system should not conflict with other PID’s utilized by the EN-31. To configure ASI Passthrough of DVB subtitles, visit the Manual PIDs tab. This tab contains PMT template entries that will be used to insert into the PMT.
Page 50
The user will then need to map the entry into the associated PMT by visiting the Manual PID Mapping tab. The Italian DVB Subtitle PID was entered into the first manual PID configuration. This can be mapped by moving the associated PID from the ‘Unmapped PIDs’ box into the ‘Mapped PIDs’...
Page 51
MPEG1_Layer2 MPEG2_Part3 ISO_IEC_13818_PRIVATE ISO_IEC_13818_PES_PRIVATE DVB_AC3_AUDIO ISO_IEC_13522_MHEG DSM_CC ITU_T_REC_H222_1 ISO_IEC_13818_6_Type_A ISO_IEC_13818_6_Type_B ISO_IEC_13818_6_Type_C ISO_IEC_13818_6_Type_D ISO_IEC_13818_1_Aux ISO_IEC_13818_7_AUDIO_ADTS H264_VIDEO AVC_VIDEO DCII_VIDEO DOLBY_AC3 DCII_SUBTITLES DVB Specification for Service Information (SI) in DVB systems. Descriptor information can be reviewed here. https://www.dvb.org/resources/public/standards/a38_dvb-si_specification.pdf ...
Page 52
Vertical Interval Time Code Vertical Interval Time Code (VITC) is typically used in transmissions that require time code from the originating source to be preserved. It was originally developed for analog television recording systems, but has new standards for transmitting in digital systems (SMPTE-12M-1 / SMPTE-12M-2).
Page 53
How to setup a Zixi IP stream on the Adtec Encoders The Zixi technology can be used to enhance the stability of an IP stream when the network is not in a controlled environment. The use of FEC and latency allows the receiver to request any missing packets and the encoder to resend as needed.
Page 54
Chapter 5 - Appendix Appendix A - GNU General Public License Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
Page 55
copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language.
Page 56
object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following: a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange;...
Page 57
would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.
Page 58
OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Page 59
Appendix B - Technical Specifications EN31-MP2 Video Specs (MPEG2): Encoder Video Profiles MPEG 2 SD Profile 1: Adaptive Field Frame (AFF) ISO13818-2 MP@ML MPEG 2 SD Profile 2: AFF ISO13818-2 422P@ML MPEG 2 HD Profile 1: ISO13818-2 MP@HL (1920/1440x1080 or 1280 x 720) Video Encoding Data Rates (Manual) MPEG 2 MP@ML SD: 1 Mb/s - 15 Mb/s (NTSC and PAL) MPEG 2 422P@ML SD: 1 Mb/s - 50 Mb/s (NTSC and PAL)
Page 60
SD-SDI (SMPTE 259M - 270 Mb/s) with embedded audio per SMPTE 272M HD-SDI (SMPTE 272M - 1.485 Gb/s) with embedded audio per SMPTE 299M Connector: BNC 75 Ohm Interface: SD Composite (CVBS) A nalog Composite NTSC and PAL Audio Input: Connector/Interface:...
Page 61
Interface: Terminated NTSC or PAL D1 Composite Input with loop EAS Audio: Connector: Vertical single RCA jack Interface: mono audio channel with loop EAS Triggering Interface: Web UI Conditional Access: BISS 1/E Transport Outputs: All outputs operate concurrently. Connector: BNC x2 ISO13818-1 MPEG 2 Transport Stream per EN 50083-9:1997 (188 byte only).
Page 63
Adtec Digital. EN-31 is a trademark of Adtec Digital. Other product and company names may be trademarks or registered trademarks of their respective companies. This information may not, in whole or in part, be copied, photocopied, reproduced and translated, or reduced to any electronic...
Page 64
Appendix C - DB9-M Analog audio input pinout Signal Left + (Audio 1) Left - (Audio 1) Ground Right - (Audio 1) Right + (Audio 1) Left + (Audio 2) Left - (Audio 2) Right - (Audio 2) Right + (Audio 2) ...
Page 65
All inquiries will be processed in the order in which they are received and by the criteria outlined in the Call Response Order. Inquiries and inquiry responses made after 5:00 PM (CST) weekdays, Saturday, Sunday or on an Adtec-recognized holiday will be processed the next business day in the order received.
Page 66
material being inserted and what the operator reported about the incident. It is also helpful to note any recent changes to the system. More information is always better than too little information. Your Contact Data: P lease include contact information so we can reach you to ●...
Page 67
** Excludes equipment that has been subject to misuse, negligence, or accident All SLAs are subject to terms and conditions of Sale and Support. For details, see Adtec Digital Terms of Sale of Sale and Adtec Digital Terms of Standard Limited Support...
