INSTRUCTION MANUAL
B·IRON DUAL NANO
Dual Battery-Powered
Nano Soldering Station

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B-IRON DUAL NANO and is the answer not in the manual?

Questions and answers

Related Manuals for jbc B-IRON DUAL NANO

Summary of Contents for jbc B-IRON DUAL NANO

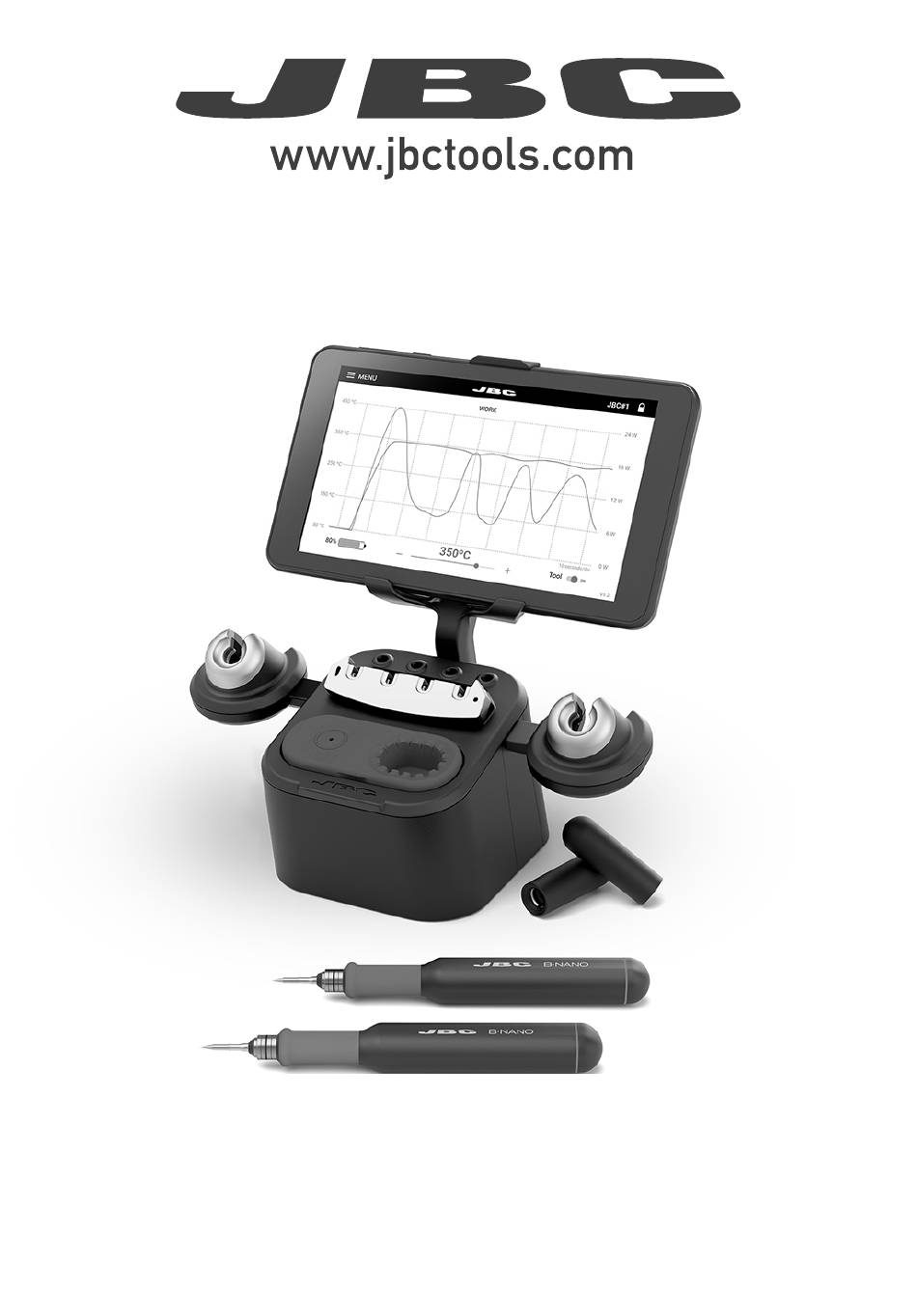

  • Page 1 INSTRUCTION MANUAL B·IRON DUAL NANO Dual Battery-Powered Nano Soldering Station...

  • Page 2: Packing List

    This manual corresponds to the following references: BINN-5A* - with Portable Display * Depending on customer requirements, various power BINN-5QA* - without Portable Display cords are available. Suitable for: 120V - N. America / Taiwan 230V - India / Europe / United Kingdom Packing List The following items are included: C115 Cartridge ....

  • Page 3: Features And Connections

    para manuales - color gris 200 mm 130 mm 130 mm Please read this manual and its safety guidelines thoroughly before using the product. Features and Connections 100 mm 80 mm PDS* Portable Display 7” for B·IRON 60 mm 50 mm Cartridge Exchanger 40 mm H2464...
  • Page 4 Features and Connections PDS* Portable Display 7” for B·IRON B·IRON Display Holder 5” to 7” Ref. 0030723 B·NANO Nano B·NANO Handle Display Nano Handle Support for B·IRON B·IRON Safety Cap Holder C115 C115 Cartridge Cartridge USB Connector Range Range Power Socket B1596 B1596 Safety Cap...

  • Page 5: Station Setup

    para manuales - color gris 200 mm Station Setup 130 mm 130 mm 1. Display Holder Assembling 2. Display Holder Setting 100 mm 80 mm Display 60 mm Holder Insert the thin end of the display holder into the Insert the fi xing knob (3) and tighten it just enough upper area of the rear rail of the charging base so that it stays in place but the display holder can 50 mm...
  • Page 6 250 ºC Update 6 W 100% 150 ºC 0 W 100% 50 ºC 350ºC 10 seconds/div Tool V1.2 5. Turning on the Portable Display JBC#1 MENU Work MENU 28174 Work CHARGE 450 ºC 24 W 100% Settings Power Button Tool ID...
  • Page 7 2822 para manuales - color gris 200 mm Hibernation delay (seconds) Minimum Temperature Maximum Temperature 100ºC 400ºC Tool Status Temperature units Charging Working Low battery No cartridge ºC ºF Tool Connection Power OFF 130 mm 130 mm Device List Make sure that the charging base is connected to the mains.
  • Page 8 Safety Cap Thanks to their safety cap, B·IRON handles can be transported safely, even with the cartridge inserted. When the cap is placed onto the handle, the cartridge stops heating, data transfer is cut off Handle Handle and the handle is disconnected from the station. If the cap is removed before 60 minutes, the tool reconnects and heats up immediately.

  • Page 9: Operation

    - color gris 200 mm Operation 130 mm 130 mm JBC’s Most Efficient Soldering System MENU JBC#1 This revolutionary technology recovers tip temperature extremely quickly. This allows the user to work WORK at a lower temperature and therefore cartrige tips last longer.
  • Page 10 It allows modifying the tool working temperature, checking the battery status and turning the tool 350ºC 10 seconds/div 10 seconds/div Tool Tool in use on and off. V1.2 V1.2 Temperature and Power Graph JBC#1 MENU CHARGE Updat 24 W 450 ºC Tool I 348ºC 18 W 350 ºC 12 W 250 ºC...
  • Page 11 10 seconds/div 10 seconds/div Tool Workscreen Tool (continuation) 130 mm 130 mm V1.2 V1.2 Connected Tool and Tool Selector JBC#1 MENU 100 mm CHARGE Updat 24 W 450 ºC Tool ID 348ºC 80 mm 18 W 350 ºC 12 W 250 ºC...
  • Page 12 Cartridge Exchanger Cartridge Exchanger The cartridge exchanger saves time and allows changing cartridges safely without switching the tool off. The cartridge exchanger saves time and allows changing cartridges safely without switching the tool off. 1. Removing Cartridges 2. Inserting Cartridges 1.
  • Page 13 para manuales - color gris 200 mm 3. Fixing Cartridges Depending on the shape of the tip, use the 3. Fixing Cartridges 130 mm 130 mm holes on the sides of the cartridge exchanger to properly adjust the cartridge. Depending on the shape of the tip, use the holes on the sides of the cartridge exchanger Important: Push the cartridge in until it stops, to properly adjust the cartridge.

  • Page 14: Tip Cleaner

    It also includes a temperature-resistant wiper for removing excess solder by gently tapping or wiping the cartridge tip on it. If the tip is very dirty, JBC recommends cleaning it first Wiper with the wiper to remove excess solder and then with the brass wool.
  • Page 15 12 W 100% Documents: JBC#1 28174 28174 MENU MENU Work User manuals related to the station or to the tools can be consulted in this section or on JBC’s Work Work Work CHARGE CHARGE 450 ºC 24 W 100% 450 ºC...
  • Page 16 Settings Parameter Description Tool ID Allows modifying the tool identifier. Lock parameters Allows locking the parameters of the station using a four-digit code. The default code is 0105, but a new code can be set by simply entering some other four digits of choice when locking the parameters. Sleep Mode / Set Sleep Mode on/off.

  • Page 17: App Versions

    JBC Software 130 mm 130 mm The app is already installed on JBC’s B·IRON Display. If another display is to be used, the app must be downloaded to the corresponding display (see chapters below). 100 mm At the moment of purchasing the B·IRON tool, the current firmware is already downloaded to the tool.
  • Page 18 Go to the internal folder and unzip the downloaded file. Display without internet connection: Download the firmware update file to another device with an internet connection from JBC’s website: https://www.jbctools.com/jbcsoftware.html and unzip the downloaded file. Then do as described in the table.
  • Page 19 Once the update is completed, “Tool updated” (3) will be displayed. 50 mm 40 mm If “No new version available” is displayed (4), no update is possible nor required. MENU vices ºC cuments ght Theme ºC rk Theme ºC ºC 350ºC JBC#1...
  • Page 20 Display Holder B·IRON Display Holder 10”-13” Ref. 0031246 In addition to the display holder supplied with the B·IRON station, JBC offers a holder for tablet sizes between 10” to 13”. Assemble the display holder at the rear part of the charging base.
  • Page 21 para manuales - color gris 200 mm B·500* 130 mm 130 mm B·500 Handle Handle for B·IRON Safety Cap Perfect for continuous and intensive work. Its technical performance has enabled more 100 mm autonomy than the B·100. Note: The charging holder on the B·IRON NANO station is fully compatible with B·500.
  • Page 22 Replacing Brass Wool 1. Lifting 2. Replacing Lift the wiper by using the recess on the edge. Remove the wiper and replace the brass wool with a new one. 3. Reassembling 4. Pressing on Assemble the new wiper onto the charging base. Press the wiper down at the 4 corners until Make sure that the brass wool is on the far left you feel it click into place.
  • Page 23 para manuales - color gris 200 mm Replacing B1510 Grips (Soft Foam) 130 mm 130 mm Inserting Fitters Assembling Grips Removing Fitters 100 mm Fitter New Grip 80 mm Hold this way Handle so the fi tters can slide Insert the fitters into the new Push the grip with the fitters To remove the fitters, hold the 60 mm...

  • Page 24: Maintenance

    Clean the contact surfaces regularly to ensure that the - Do not use liquids such as alcohol, thinner or tool gets charged benzene to clean the portable display. correctly. - Repairs should only be performed by a JBC authorized technical service.
  • Page 25 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire. - The power cord must be plugged into approved bases.

  • Page 26: Safety - Battery

    - In the event of damage, leakage, or overheating of the batteries, discontinue use immediately and contact customer support or JBC technical service facility. - Dispose of devices with batteries inside, responsibly according to regulations. They must be disposed of in accordance with local regulations so that they can be recycled.

  • Page 27: Specifications

    para manuales - color gris 200 mm Specifications 130 mm 130 mm B·IRON NANO Dual Battery-Powered Nano Soldering Station Ref. BINN-5A - with Portable Display 7” 100 mm Ref. BINN-5QA - without Portable Display 7” Charging Base - Input: 100 V - 240 V 50/60 Hz - Nominal Power: 40 W 80 mm...
  • Page 28 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. If you register, you will receive e-mail notifications about new software updates for your registered product.
