Summary of Contents for jbc BIS-5B

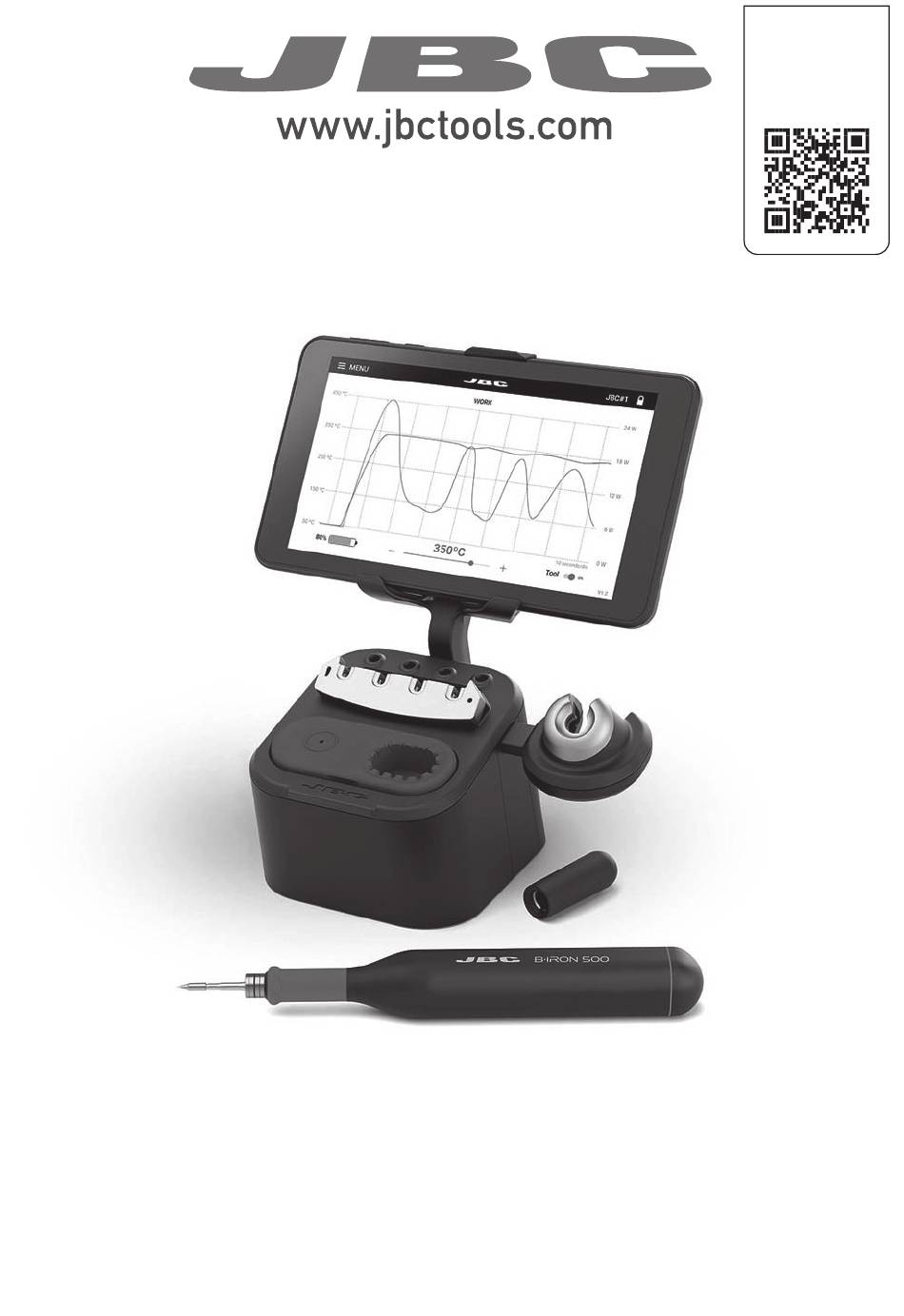

- Page 1 Product website 130 mm INSTRUCTION MANUAL B·IRON 500 Battery-Powered Soldering Station...
-
Page 2: Packing List
This manual corresponds to the following references: BIS-5B* - with Portable Display * Depending on customer requirements, various power BIS-5QB* - without Portable Display cords are available, suitable for: 120V - N. America / Taiwan 230V - India / Europe / United Kingdom... -
Page 3: Features And Connections
para manuales - negro plano 200 mm Important 130 mm 130 mm Please read this manual and its safety guidelines thoroughly before using the product. Note: Even if the display is turned off, the tool remains operational as long as the 100 mm batteries are charged, even when the cartridge is removed. - Page 4 Note: All B·IRON components comply with CE standards, but the tool by itself is not grounded. Therefore, to comply with ESD regulations, the user of the B·IRON tool must be ESD-compliantly grounded. JBC offers ESD tablemats, earthing cables, plugs and wristbands. More information on www.jbctools.com.
-
Page 5: Station Setup
para manuales - negro plano 200 mm Station Setup 130 mm 130 mm Display Holder Assembling Display Holder Setting 100 mm 80 mm Display 60 mm Holder Insert the thin end of the display holder into the Insert the fi xing knob (3) and tighten it just enough upper area of the rear rail of the charging base so that it stays in place but the display holder can 50 mm... - Page 6 Station Set Up (continuation) Cartridge Exchanger The exchanger is suitable for C115 and C210 cartridges. C115 Cartridges Retention The holding area of C115 Cartridges is delimited by the two Clamps rings at the cartridge shaft (x). C115 Cartridge C210 Cartridges The holding area of C210 Cartridges goes from the collar of The cartridge exchanger allows the tip until the cartridge begins to widen (x).
-
Page 7: Operation
Tool with cap on Cools down to room temperature. Hibernation Remains at room temperature (tool is shut off). Shut off Sleep and Charging Sleep Mode can be activated/deactivated (1). If it JBC#1 JBC#1 MENU JBC#1 MENU Return to Work JBC#1... - Page 8 Tool Status (continuation) HIBERNATION & charging SLEEP & charging mains AUTO tool in disconnected WORK CHARGER SHUT-OFF (mains connected) tool to charger tool laid after 5’ AUTO HIBERNATION SHUT-OFF HIBERNATION Work When the tool is taken out of the charger while in Sleep (1) or Hibernation (2) Modes, the cartridge tip heats up to the set work temperature and the tool is ready to use (3).
- Page 9 Tool Tool V1.2 V1.2 Tool Status (continuation) 130 mm 130 mm JBC#1 MENU Tool Reactivation CHARGE 450 ºC 24 W Once the tool has automatically shut off, place it back in the charging holder (9) to reactivate it (see 100 mm diagram on previous page).
- Page 10 2822 Hibernation delay (seconds) Minimum Temperature Maximum Temperature 100ºC 400ºC Tool Status Temperature units Charging Working Low battery No cartridge ºC ºF Tool Connection Power OFF Device List Make sure that the charging base is connected to the mains. MENU 28174 Work Note: Tools supplied with a station are already...
- Page 11 It allows modifying the tool working temperature, checking the battery status and turning the tool 350ºC 10 seconds/div 10 seconds/div Tool Tool in use on and off. V1.2 V1.2 100 mm Temperature and Power Graph JBC#1 MENU 80 mm CHARGE Updat 24 W 450 ºC Tool I 348ºC 60 mm 18 W 350 ºC 12 W 250 ºC...
- Page 12 50 ºC 350ºC 350ºC 10 seconds/div 10 seconds/div Tool Workscreen Tool (continuation) V1.2 V1.2 Connected Tool and Tool Selector JBC#1 MENU CHARGE Updat 24 W 450 ºC Tool ID 348ºC 18 W 350 ºC 12 W 250 ºC 150 ºC 50 ºC...
- Page 13 12 W 100% Documents: Work CHARGE 24 W 100% 450 ºC User manuals related to the station or to the tools can be consulted in this section or on JBC’s Settings 0 W 100% 6 W 100% 6 W 100% website: www.jbctools.com Counters 350ºC...
-
Page 14: Compatible Cartridges
Settings Parameter Description Tool ID Allows modifying the tool identifier. Lock parameters Allows locking the parameters of the station using a four-digit code. The default code is 0105, but a new code can be set by simply entering some other four digits of choice when locking the parameters. Sleep Mode / Set Sleep Mode on/off. - Page 15 It leaves a small layer of solder on the tip, preventing Note: If the tip is very dirty, JBC recommends cleaning it first with oxidation between cleaning the wiper to remove excess solder and then with the brass wool.
-
Page 16: App Versions
JBC Software No installation or initial download are required for newly purchased JBC products. Both JBC display and tools come with its current software/firmware installed and updated, and are ready to use. Note: App: If a third-party display (tablet or smartphone) is used, the B·IRON app must be downloaded from JBC’s web page and installed on the device. - Page 17 100 mm jbcsoftware.html. Go to the internal folder and unzip the downloaded file. Display without Internet connection: Download the firmware update file to another device with an Internet connection from JBC’s website: 80 mm https://www.jbctools.com/jbcsoftware.html and unzip the downloaded file.
- Page 18 If “No new version available” is displayed (4), no update is possible or required. Accessories B·IRON Display Holder 10” to 13” Ref. 0031246 Mount on charging base In addition to the display holder supplied with the B·IRON station, JBC offers a holder for tablet sizes between 10” and 13”. Display Holder...
- Page 19 para manuales - negro plano 200 mm Accessories (continuation) 130 mm 130 mm Soldering Tools for B·IRON Stations B·NANO* 100 mm Nano Handle for B·IRON Ergonomic and lightweight soldering handle. Designed for use in labs and high-precision soldering in hard-to-reach areas. 80 mm Works with C115 Cartridges.
- Page 20 Accessories (continuation) Tool Expansion Kits for B·IRON Stations Charging Nano Handle B·NANO K* Holder Nano Handle Expansion Kit This kit allows extending B·IRON stations with B·NANO Handle. Adapters for C115 Cartridges Safety Cap Works with C115 Cartridges. B·TWEEZERS K* Nano Tweezers Nano Tweezer Expansion Kit This kit allows upgrading B·IRON stations to a Charging...
- Page 21 para manuales - negro plano 200 mm Maintenance - B·IRON Handles 130 mm 130 mm Replacing Soft Foam Grips - B5050 includes 4 grips Inserting Fitters Assembling Grips Removing Fitters 100 mm Fitter New Grip 80 mm Hold this way Handle so the fi...
-
Page 22: Safety - Battery
- Do not use liquids such as alcohol, thinner or correctly. benzene to clean the portable display. - Repairs should only be performed by a JBC authorized technical service. Safety - Battery It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Page 23 para manuales - negro plano 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause a fire. - The power cord must be plugged into approved bases.
- Page 24 Notes...
- Page 25 para manuales - negro plano 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
- Page 26 Notes...
-
Page 27: Specifications
- negro plano 200 mm Specifications 130 mm 130 mm B·IRON 500 Battery-Powered Soldering Station Ref. BIS-5B - with Portable Display 100 mm Ref. BIS-5QB - without Portable Display Charging Base - Input: 100 V - 240 V 50/60 Hz... - Page 28 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. If you register, you will receive e-mail notifications about new software updates for your registered product.
