7. Development Boards

The C8051T60x Development Kit includes a main board which interfaces to various daughter boards. The
"C8051T600 Emulation Daughter Board" contains a C8051F300 device to be used for preliminary software
development. The socketed C8051T600 daughter boards allow programming and evaluation of the actual
C8051T60x family of devices. Numerous input/output (I/O) connections are provided on the main board to facilitate
prototyping. Refer to Figure 2 for the locations of the various connectors on the main board. Figure 3, Figure 4 and
Figure 5 show the available daughter boards that can be used with the C8051T600 main board.
P1, P2
P3
J1
J2
J3
J6
J7
J8
J10
Downloaded from Elcodis.com electronic components distributor
Daughter board connection (Daughter boards are plugged into the P1 and P2 connectors for
evaluation and programming)
Power connector (accepts input from 7.5 to 15 VDC unregulated power adapter)
USB Debug connector
RS-232 connector
LED/Switch/RS-232 connection block
Analog I/O terminal block
Connects potentiometer to P0.1
Direct device pin connection block
VPP supply connection (used when programming OTP devices)
RESET
J6
P1
C20
J8
R18
R12
P2
J2

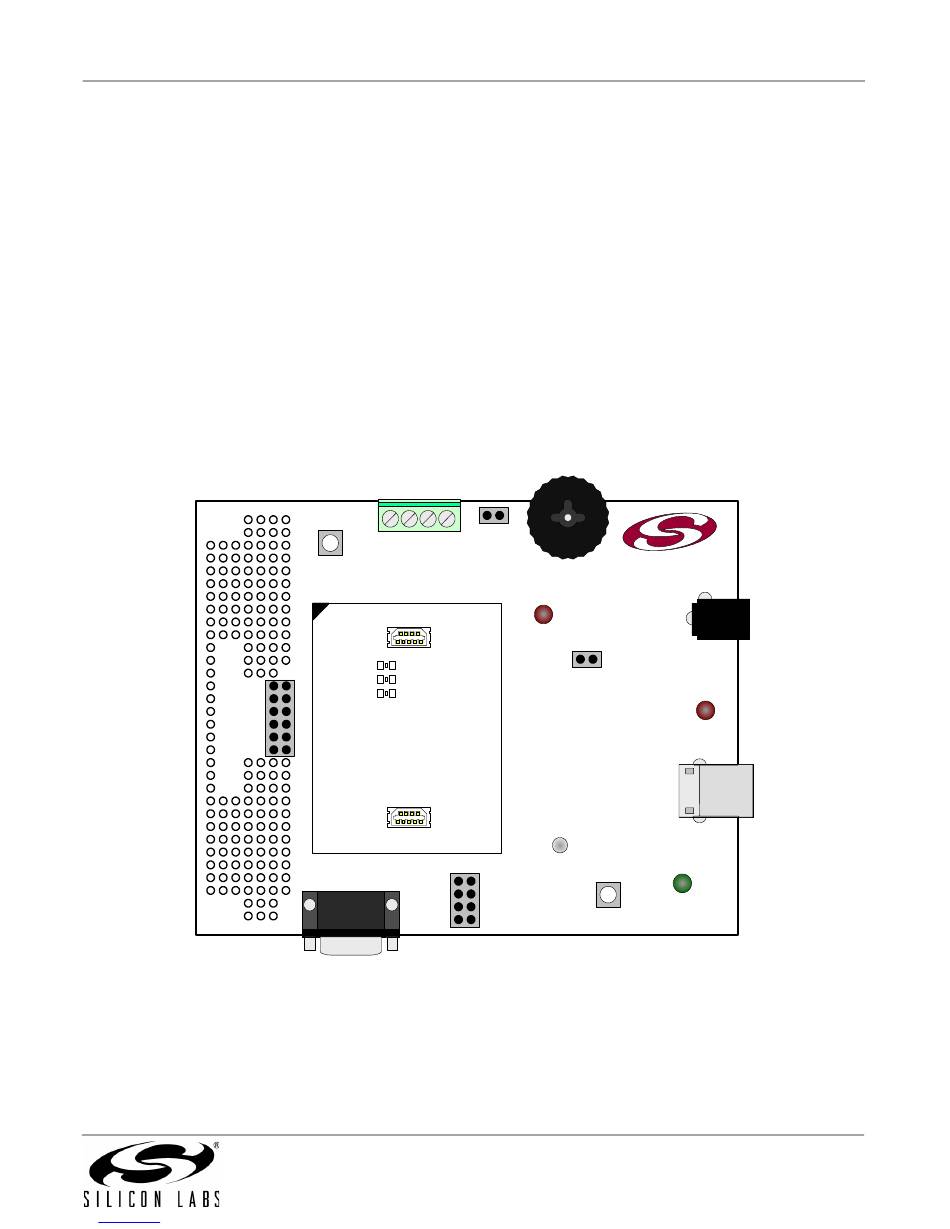

Figure 2. C8051T600 Main Board (Included in Kit)
J7
SILICON LABS
R13
D7
J10
D2
SW1
J3
P0.3
Rev. 0.1
C8051T60x-DK
www.silabs.com
P3
D4
PWR
J1
DEBUG
D1
P0.6
