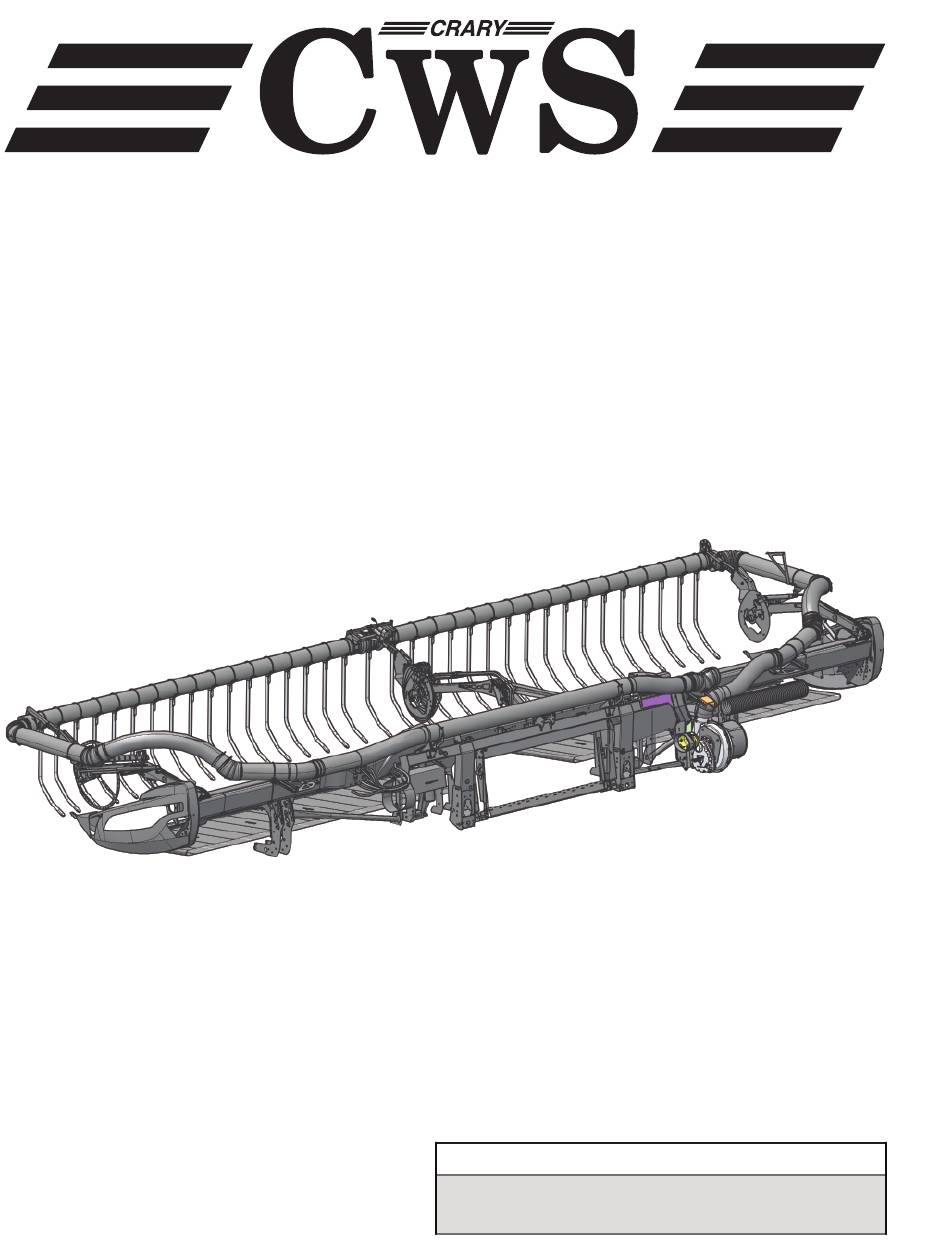

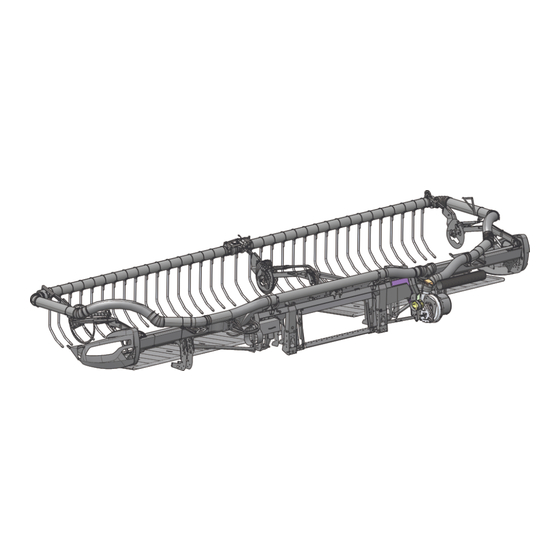

CRARY WIND SYSTEM
P RO D U C T
M A N UA L
MACDON
FD2
RECORD SERIAL NUMBER HERE
Manual P/N 55231-00
Rev. 081822.10
SN Range: ~ -Current

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CWS MACDON FD2 and is the answer not in the manual?

Questions and answers

Related Manuals for Crary CWS MACDON FD2

Summary of Contents for Crary CWS MACDON FD2

  • Page 1 CRARY WIND SYSTEM P RO D U C T M A N UA L MACDON RECORD SERIAL NUMBER HERE Manual P/N 55231-00 Rev. 081822.10 SN Range: ~ -Current...
  • Page 3 Features may be described herein which are not present in all systems. Crary Industries assumes no obligation of notice to holders of this document with respect to changes subsequently made.
  • Page 4 10 DAYS OF DELIVERY OF THE PRODUCT TO THE ORIGINAL OWNER OR THE WARRANTY WILL BE VOID. In the event of a failure, return the product, at your cost, along with proof of purchase to the selling Crary Industries dealer.
  • Page 5 Only genuine Crary replacement parts should be used to repair the CWS. Crary replacement parts are available from your Crary Dealer. To obtain prompt, effi cient service, remember to give the dealer the correct part description and serial number of the CWS.
  • Page 6 RIGHT HAND DRIVE KIT 55317 NUMBER OF KIT NUMBER BOXES IN KIT 55319 55314 55321 55316 55240 55318 55320 REEL ARM MOUNT KIT 55235 NUMBER OF KIT NUMBER BOXES IN KIT 55228 55229 Macdon FD2 Crary Wind System PN 55231-00...

  • Page 7: Table Of Contents

    5.6.1 MANIFOLD TILT: ..............32 5.6.2 FAN AIR VOLUME ACTUATOR: ........... 32 5.6.3 LIFT/FORE AND AFT ADJUSTMENT: ........32 5.6.4 PROGRAMMING INSTRUCTIONS: ........32 5.6 OPERATING HINTS ................. 33 5.7 TRANSPORTING ................33 5.8 STORAGE ..................34 PN 55231-00 Macdon FD2 Crary Wind System...

  • Page 8: Introduction

    Use the in fi nding the information you need. Your Crary dealer will Table of Contents as a guide to locate required information. be happy to answer any further questions you may have about the machine.

  • Page 9: Safety

    It may also be used to alert against unsafe practices. IMPORTANT - Instructions that must be followed to ensure proper installation/operation of equipment. NOTE - General statements to assist the reader. PN 55231-00 Macdon FD2 Crary Wind System...

  • Page 10: General Safety

    Think SAFETY! Work SAFELY! Macdon FD2 Crary Wind System PN 55231-00...

  • Page 11: Maintenance Safety

    10. Keep safety decals clean. Replace any decal that is 6. Replace all damaged or missing parts or shields with damaged or not clearly visible. the correct original manufacturer’s parts. Think SAFETY! Work SAFELY! PN 55231-00 Macdon FD2 Crary Wind System...

  • Page 12: Transport Safety

    1. Store the unit in an area away from human activity. 2. Do not permit children to play on or around the stored machine. 3. See the owner’s manual that came with your combine and header for proper storage. THINK SAFETY! WORK SAFELY! Macdon FD2 Crary Wind System PN 55231-00...

  • Page 13: Sign-Off Form

    SAFETY 2.11 SIGN-OFF FORM Crary Industries follows the general safety standards Make these periodic reviews of safety and operation a specified by the American Society of Agricultural standard practice for all of your equipment. An untrained Engineers (ASAE) and the Occupational Safety and Health operator is unqualifi...

  • Page 14: Safety Decals

    REMEMBER - If safety decals have been damaged, removed or become illegible or parts have been replaced without safety decals, new decals must be applied. New safety decals are available from the manufacturer or an authorized dealer. Macdon FD2 Crary Wind System PN 55231-00...

  • Page 15: Assembly

    Gleaner - ALL U-BOLT, 1/2” NUT, 1/2 BOLT, 1/2 X 1-1/4” NUT, BACK GEARBOX BRACE MOUNT BOLT, 3/8 BOLT, 3/8 X 1-1/4” CRG X 1-1/2” GEARBOX LOWER SUPPORT NUT, 3/8 Figure 1: Gearbox/fan mount kit PN 55231-00 Macdon FD2 Crary Wind System...

  • Page 16: Pto Support Bracket & Shield - All

    5. Next step, Drive Line Adjustment, cut driveline if required, go to page 11. 55240 KIT, SERIES II LH DR 50 FT 6. Next step, Real Arm Mount installation, go to page Figure 2: Right hand drive kit Macdon FD2 Crary Wind System PN 55231-00...

  • Page 17: Driveline Adjustment

    6. File both shaft ends to deburr them, and then slide the two halves back together. Figure 4: Removing the shield tube PN 55231-00 Macdon FD2 Crary Wind System...

  • Page 18: Reel Arm Mount

    4. Bolt installed in position 2 may need to be adjusted after manifolds are installed. Position 2 is normal, position 3 raises the bracket and position 1 lowers the bracket. Figure 6: Reel arm mount assembly (LH) Figure 7: Left hand side shown Macdon FD2 Crary Wind System PN 55231-00...
  • Page 19 BOLT, 1/2 X 3-1/4 NUT, 1/2 OUTER INNER LH REEL LH REEL MOUNT MOUNT NUT, 1/2 BOLT, 1/2 X 3-1/4 NUT, 3/8 BOLT, 1/2 X 5-1/2 BOLT, 3/8 Figure 8: Reel arm mount (LH) PN 55231-00 Macdon FD2 Crary Wind System...

  • Page 20: 35/40/45/50 Ft (Center)

    Figure 9: Reel arm mount assembly, Center shown 4.4.2 35/40/45/50 FT (CENTER) 1. Install right bracket, remove OEM hardware and install Crary plate (2) using supplied two 1/2 X 1-1/4” bolts and nuts. 2. Install left bracket, remove OEM hardware and bracket, see next page.

  • Page 21: Bracket To Be Removed

    BOLT, 1/2 X 3-1/4 SADDLE MOUNT TUBE GUIDE BOLT, 1/2 MANIFOLD PIVOT X 3-1/4 NUT, 3/8 HALF CLAMP LEFT CENTER REEL MOUNT NUT, 1/2 RIGHT CENTER REEL MOUNT Figure 13: Center reel arm mount PN 55231-00 Macdon FD2 Crary Wind System...

  • Page 22: 35/40/45/50 Ft (Right Hand)

    Secure with one 1/2” x 2-3/4” bolt and a 1/2” nut. 5. Next step, Manifold installation, go to page 18. Figure 15: Reel arm mount assembly (RH) Figure 16: Right hand side shown Macdon FD2 Crary Wind System PN 55231-00...
  • Page 23 RELOCATE BRACKET BOLT, 1/2 X 3-1/4 NUT, 1/2 BOLT, 1/2 X 1-1/4, CRG .875 O.D. SPACER (5) OUTER RIGHT REEL MOUNT (2) NUT, 1/2 BOLT, 1/2 X 5-1/2 Figure 17: Reel arm mount (RH) PN 55231-00 Macdon FD2 Crary Wind System...

  • Page 24: Manifold

    (Figure 20) 17. Tighten the manifold pivot hardware once the manifold and drop tubes are properly positioned. 18. Repeat steps 10 - 17 for triple reel. Figure 20: Air tube adjustment Macdon FD2 Crary Wind System PN 55231-00...
  • Page 25 To ad- just the indicator, the electric actuator should be fully extended. Adjust the indicator so the arrow is pointing at 4-1/2, then tighten the clamp on the manifold. Figure 21: Center manifold Assembly PN 55231-00 Macdon FD2 Crary Wind System...
  • Page 26 ASSEMBLY Macdon FD2 Crary Wind System PN 55231-00...

  • Page 27: Drop Tube Assembly

    Figure 22: X-Long 2 Bend Drop Tube Kit DRILL HERE # OF X-LONG MANIFOLD RH Side LH Side 2 BEND DROP LENGTH TUBES Figure 23: Drilling Drop Tube Holes 35 FT. 40 FT. 45 FT. 50 FT. PN 55231-00 Macdon FD2 Crary Wind System...

  • Page 28: Right Hand Routing

    (12). Install the 45º elbow (13) angled up forward towards the other 45º elbow (7). 18. Insert a 5” support tube (16) into the 45º elbow (13). Figure 25: Tube end dimensions (bracket edge to tube end) Macdon FD2 Crary Wind System PN 55231-00...
  • Page 29 40” (41’ HEADERS) 40” (41’ HEADERS) RH TRANSITION 65” (45’ HEADERS) 65” (45’ HEADERS) SWING ARM 94” (50’ HEADERS) 94” (50’ HEADERS) FLEX HOSE (18) FLEX HOSE (17) Figure 27: Flex hose installation PN 55231-00 Macdon FD2 Crary Wind System...

  • Page 30: Left Hand Routing

    (29). Then, slide the elbow (29) onto the left end of the swing tube (31). Install the 45º elbow (29) angled up and forward towards the other 45º elbow (25). Figure 30: Damper position indicator installed Macdon FD2 Crary Wind System PN 55231-00...
  • Page 31 T-BOLT (32) ELBOW (28) CLAMP 5” SUPPORT CLAMP 8-11/16" FLEX TUBE T-BOLT 8-3/8" (31) HOSE CLAMP (29) T-BOLT 8-11/16" SWING CLAMP T-BOLT ELBOW CLAMP TUBE Figure 32: Flex hose installation - Dual Flow PN 55231-00 Macdon FD2 Crary Wind System...
  • Page 32 FLEX TUBE (15) RUBBER “Y” (38) (38) CONNECTION MIDDLE REAR MIDDLE REAR TUBE MOUNT TUBE MOUNT BOLT, 3/8 X 3/4 CAPSCREW Figure 33: Flex hose installation - Dual Flow (35 FT/40 FT/45 FT/50 FT) Macdon FD2 Crary Wind System PN 55231-00...

  • Page 33: Electrical Wiring

    FOR TRIPLE REEL ONLY MANIFOLD TILT ACTUATOR (TO 15 AMP HARNESS) (Green/Yellow Wires) SWITCH/MOUNT ASSEMBLY (MOUNT INSIDE COMBINE CAB) (Blue/Orange Wires) FAN BUTTERFLY ACTUATOR (TO 5 AMP HARNESS) WIRELESS REMOTE CONTROL Figure 36: Electrical wiring PN 55231-00 Macdon FD2 Crary Wind System...

  • Page 34: Operation

    Untrained Keep hands and fi ngers clear of swing transition arm. operators are not qualifi ed to operate the machine. Macdon FD2 Crary Wind System PN 55231-00...

  • Page 35: Machine Components

    The CWS stationary air tubes deliver a constant stream high pressure fan. of high velocity air which fi rmly pushes the crop off the Figure 37: Front and Rear views of Machine Components PN 55231-00 Macdon FD2 Crary Wind System...

  • Page 36: Initial Adjustments

    3 times. If it still doesn’t slip, check that all the center locknuts are loosened and not placing tension on the pressure plates. 4. After the torque limiter has slipped, refer to the next section for instructions on how to reset the torque limiter. Macdon FD2 Crary Wind System PN 55231-00...

  • Page 37: Pre-Operation Checklist

    3. Check that all required nuts and bolts are installed and tightened to their specified torque. 5.4.2 AFTER OPERATING FOR 2 HOURS 1. Re-torque fasteners and hardware. PN 55231-00 Macdon FD2 Crary Wind System...

  • Page 38: Controls

    Figure 39: Manifold tilt and fan air volume switch BUTTERFLY INDICATOR (SHOWN FULLY OPEN POSITION) FAN BUTTERFLY ACTUATOR INDICATOR (FULLY OPEN POSITION) Figure 41: Fan butterfl y actuator Figure 40: Air fl ow Macdon FD2 Crary Wind System PN 55231-00...

  • Page 39: Operating Hints

    Add extra lights when transporting at night or during periods of limited visibility. 3. See the owner’s manual that came with your combine and header for proper transportation guidelines. PN 55231-00 Macdon FD2 Crary Wind System...

  • Page 40: Storage

    6. Apply a light coat of grease on the shafts. 7. Check the cutterbar, reel area and drives for entangled material. 8. Touch up all paint nicks and scratches to prevent rust- ing. Macdon FD2 Crary Wind System PN 55231-00...

  • Page 41: Service & Maintenance

    √ FAN ROTOR BELT, IDLER, PULLEY ALIGNMENT √ AND CONDITION YEARLY GEARBOX LUBE CONDITION OF FRICTION DISC √ TORQUE LIMITER (SLIP CLUTCH) √ INSPECT IMPELLER FOR WEAR √ HARDWARE √ DEBRIS IN MANIFOLD PN 55231-00 Macdon FD2 Crary Wind System...

  • Page 42: Fluids And Lubricants

    See Figure 42 for the location of oil fi ll and drain plugs. Every 500 operating hours or annually, whichever comes fi rst, the oil should be replaced. When changing the oil, follow this procedure: Macdon FD2 Crary Wind System PN 55231-00...

  • Page 43: Fan Housing And Air Hose

    THIS LOWER SURFACE IS WORN TO A THIN KNIFE EDGE AND NEEDS TO BE REPLACED. Figure 46: Critically worn impeller blades Figure 45: CV driveline lubrication PN 55231-00 Macdon FD2 Crary Wind System...

  • Page 44: Slip Clutch Maintenance

    Collar, Spring, Ball, Lock Belville Clutch Hub, Plate, Clutch Thrust Bolt, M10 Ring, Set, Friction X 1.5 Backup Disc Ring, Spring, Backup Compression Set, Friction Disc Yoke, Flange Figure 48: Slip clutch components Macdon FD2 Crary Wind System PN 55231-00...

  • Page 45: Troubleshooting

    If you encounter a problem that is diffi cult to solve, even after having read through this troubleshooting section, please call your local Crary dealer. Before you call, please have this manual and the serial number from your machine ready.

  • Page 46: Specifications

    The table shown below is for reference purposes only and its use by anyone is entirely voluntary, unless otherwise noted. Reliance on its contents for any purpose is at the sole risk of that person. Crary Co. is not responsible for any loss claim or damage arising therefrom.

  • Page 47: Parts Catalog

    PARTS PARTS CATALOG Macdon Headers acdon Headers PN 55231-00 Macdon FD2 Crary Wind System...

  • Page 48: Gearbox Mount Kit

    BOLT, 1/2-13X1-1/4 SERR FLANGE CMS F1 5ANS 15905-00 NUT, 3/8-16 NYLOCK FLANGE 51638-12 BRACKET, MOUNT SUPPORT-OUTER 51639-12 BRACKET, MOUNT SUPPORT-INNER 55209-12 WELDMENT, HYDRO TANK BRACE 55234-12 WELDMENT, SERIES II GEARBOX MOUNT(MDON FD2) 31716-00 THREADLOCKER, MEDIUM STRENGTH, 10ML (NOT SHOWN) Macdon FD2 Crary Wind System PN 55231-00...
  • Page 49 32212-00 PTO SHIELD 54450-12 PTO LOCK 31716-00 THREADLOCKER, MEDIUM STRENGTH, 10ML (NOT SHOWN) 15360 BOLT, 3/8-16 X 1-1/2, HEX, FLANGE, GR5, CMS F1 5ANS 15905-00 NUT, 3/8-16 NYLOCK-FLANGE 55237-12 BRACKET, PTO HOLDER FD2 PN 55231-00 Macdon FD2 Crary Wind System...

  • Page 50: Gearbox/Fan

    PARTS GEARBOX/FAN KIT #52042: S/N 0-CURRENT Macdon FD2 Crary Wind System PN 55231-00...
  • Page 51 ASSEMBLY, SERIES II GEARBOX/FAN (1/6.647) 54503-00 ASSEMBLY, SERIES II GEARBOX/FAN (1/7.250) 54504-00 ASSEMBLY, SERIES II GEARBOX/FAN (1/8.429) 54506-00 ASSEMBLY, SERIES II GEARBOX/FAN (1/8.846) 54505-00 ASSEMBLY, SERIES II GEARBOX/FAN (1/9.385) 17755 LUBRICANT, ANTI-SEIZE (NOT SHOWN) 0.002 PN 55231-00 Macdon FD2 Crary Wind System...

  • Page 52: Gearbox Replacement Parts

    32258-00 GEAR BOX, 6.647:1 54932 32254-00 GEAR BOX, 7.250:1 54928 3 2255-00 GEAR BOX, 8.429:1 54929 32257-00 GEAR BOX, 8.846:1 54931 32256-00 GEAR BOX, 9.385:1 54930 Kit Includes Service Manual Threadlocker & Box Macdon FD2 Crary Wind System PN 55231-00...
  • Page 53 BOLT, 3/8NC X 5-1/2 HEX GR8 ZINC COATED 15042 NUT, 3/8 HEX NC 30738-00 BUSHING, DOWEL 3/8 X 1 OIL, MOBIL DELVAC 75W-90 SYNTHETIC (NOT SHOWN) 28 OZ. NPN = No Part Number PN 55231-00 Macdon FD2 Crary Wind System...

  • Page 54: Driveline/C Flange Assembly

    PARTS DRIVELINE/C FLANGE ASSEMBLY ALL MODELS 21 SPLINE SHOWN Macdon FD2 Crary Wind System PN 55231-00...
  • Page 55 RING, SNAP 14732-00 PROFILE, INNER 1B (LONG) 14733-00 PROFILE, OUTER 2A (LONG) 14734-00 TUBE, INNER SHIELD (LONG) 14735-00 TUBE, OUTER SHIELD (LONG) 15575 PIN, M10 X 80 SPRING 12210 DECAL, OUT 12211 DECAL, IN PN 55231-00 Macdon FD2 Crary Wind System...

  • Page 56: Damper Indicator Kit

    NUT, 10/24 NYLOCK TYPE NM, ZP 15860-00 SCREW, HEX SOC #10-24 X 1.00 ZP 15908-00 BOLT, 5/16-18 X 3/4 ZP FLANGE SHOULDER 52012-12 WELDMENT, DUAL FLOW LINK 52013-12 BAR, GAUGE DUAL FLOW INDICATOR 52015-35 BRACKET, INDICATOR DUAL FLOW Macdon FD2 Crary Wind System PN 55231-00...
  • Page 57 ASSEMBLY, RH TRANSITION SWING ARM 73063 SPACER, .50 X .25 76280-00 HOSE, FLEXIBLE 8” ID X 4 FT LONG 50660-00 ASSEMBLY, DUAL FLOW Y 17777 HOSE, FLEXIBLE 8” ID X 8 FT LONG PN 55231-00 Macdon FD2 Crary Wind System...

  • Page 58: Fan Hose Assembly

    PARTS FAN HOSE ASSEMBLY DUAL FLOW Macdon FD2 Crary Wind System PN 55231-00...
  • Page 59 55325-00 ASSEMBLY, LH TRANSITION SWING ARM 73063 SPACER, .50 X .25 15907-00 SCREW, 5/16-18 X 1” ZP THREAD ROLLING 55242-12 WELDMENT, TRANSITION TUBE MOUNT 76280-00 HOSE, FLEXIBLE 8” ID X 4 FT LONG PN 55231-00 Macdon FD2 Crary Wind System...

  • Page 60: Reel Arm Mount, Lh

    25908-00 ASSEMBLY, HALF CLAMP 23501-12 CLAMP, HALF 22809 GUIDE, SADDLE 52008-12 WELDMENT, REEL ARM MOUNT 54343-12 WELDMENT, REEL MOUNT 55225-12 WELDMENT, MOUNT OUTER - REEL LH 55224-12 WELDMENT, MOUNT OUTER - REEL LH Macdon FD2 Crary Wind System PN 55231-00...

  • Page 61: Reel Arm Mount, Center

    WELDMENT, ARM MOUNT, GUSSETED CENTER 15.75”L X 2.13”W 54365-12 WELDMENT, CENTER REEL MOUNT 54370-12 WELDMENT, MANIFOLD PIVOT 54886-12 WELDMENT, MANIFOLD PIVOT ROD 55219-12 BRACKET, MOUNT CENTER - REEL RH 55220-12 BRACKET, MOUNT CENTER - REEL LH PN 55231-00 Macdon FD2 Crary Wind System...

  • Page 62: Reel Arm Mount, Rh

    WELDMENT, REEL MOUNT W/INDICATOR 52510-00 ASSEMBLY, MANIFOLD PIVOT W/INDICATOR 55217-12 WELDMENT, MOUNT OUTER - REEL RH 55218-12 WELDMENT, MOUNT INNER - REEL RH 55226-12 SPACER, .875 OD X .562 ID X 4.50 L 55294-12 BRACKET, RELOCATE Macdon FD2 Crary Wind System PN 55231-00...

  • Page 63: Air Manifold

    ASSEMBLY, 40FT. CWS MANIFOLD ( 54381) ITEM PART NUMBER DESCRIPTION 54379-00 ASSY., 40FT. CWS MANIFOLD - LH 14077-00 DECAL, CWS LOGO (YELLOW) DECAL, SERIAL NUMBER 54380-00 ASSY., 40FT. CWS MANIFOLD - RH 14077-00 DECAL, CWS LOGO (YELLOW) PN 55231-00 Macdon FD2 Crary Wind System...
  • Page 64 DECAL, CWS LOGO - YELLOW 15360-00 BOLT, 3/8-16 X 1-1/2, HEX, FLANGE, GR5, CMS F1 5ANS 15905-00 NUT, 3/8-16 NYLOCK-FLANGE DECALS, CRARY PATENT & SERIAL NUMBER 55298-33 MANIFOLD, CWS, 122.75, L/R-END, 12-10, FL 55352-00 MANIFOLD, CWS, 122.75, R-LH-END, 12-10, FL (WITH DECAL)
  • Page 65 55286-00 ASSY, CWS 167.50, CENTER MANIFOLD, 12-14 (INCLUDES ITEMS 3-6) 14077-00 DECAL, CWS LOGO (YELLOW) DECALS, CRARY PATENT & SERIAL NUMBER MANIFOLD, CWS, 107.50, CENTER, 12-9, N-FL (MANIFOLD ONLY, 55232-33 NO DECAL) MANIFOLD, CWS, 167.50, CENTER, 12-14, N-FL (MANIFOLD ONLY,...

  • Page 66: Switch/Mount Plate

    REMOTE CONTROL - CWS/FAR ACTUATOR CONTROLLER 50870-00 PART ITEM DESCRIPTION NUMBER 35120-00 VELCRO STRIP 33186-00 LANYARD, CRARY (BLACK) (NOT SHOWN) 33184-00 HARNESS, ACTUATOR - MANIFOLD 31133-00 HARNESS, ACTUATOR - BUTTERFLY 30349-00 SWITCH AND REMOTE, CWS/FAR ACTUATOR CONTROL ASSM 55181-00 KIT, REMOTE, CWS/FAR ACTUATOR CONTROLLER (INCLUDED IN ITEM 4)

  • Page 67: Drop Tube Kit

    KIT, X-LONG 2 BEND DROP TUBE (INCLUDES ITEMS BELOW) D=48” 15351 NUT, 5/16” SERRATED FLANGE NC ZP 15700-00 U-BOLT, 5/16-18 X 8.19” X 6.59” 52557-00 WELDMENT, X-LONG 2 BEND DROP TUBE 17313 FOAM SEAL- DROP TUBE PN 55231-00 Macdon FD2 Crary Wind System...

  • Page 68: Assembly, Rh Transition Swing Arm

    BRACKET, TRANSITION TUBE PIVOT MD FD2 55198-12 BRACKET, TRANSITION TUBE MOUNT SLIDE FD2 55199-12 BRACKET, TRANSITION TUBE SLIDE TOP FD2 55242-12 WELDMENT, TRANSITION TUBE MOUNT FD2 55291-12 WELDMENT, TRANSITION TUBE SWING ARM FD2 55322-12 WELDMENT, MANIFOLD UNIVERSAL SUPPORT Macdon FD2 Crary Wind System PN 55231-00...

  • Page 69: Kit, Drop Tube Feederhouse Cleaner

    NUT, 5/16 HX NC - ZP 15356 NUT, 5/16 NYLOCK 15700-00 U-BOLT, 5/16-18 X 8.19 X 6.59 17313 SEAL, FOAM 31756-00 BOX, 14 X 14 X 6 (NOT SHOWN) 50381-00 BRACKET, FEEDERHOUSE CLEANER 50385-00 TUBE, FEEDERHOUSE CLEANER PN 55231-00 Macdon FD2 Crary Wind System...

  • Page 70: Kit, Single Flow Feeder House Cleaner

    TUBE, 1-1/2" X 2.94" 90 DEG ELBOW 37025-00 RAM 1.125"-1.5" RAIL MOUNT W/ 1.5" BALL 37027-00 CLAMP, 1.75, T-BOLT HOSE 50381-00 BRACKET, FEEDERHOUSE CLEANER 55525-00 TUBE, NOZZLE SHORT AIR 55526-00 HOSE, 1-1/2" X 144" REINFORCED FLEX Macdon FD2 Crary Wind System PN 55231-00...

  • Page 71: Transport Support Kit

    PIN, 3/8 X 2-3/4 IN SNAPPER 33805-00 PIN, LOCKING 1/4 X 2 LOOP 51470-33 WELDMENT, BASE 51471-35 WELDMENT, LOWER HINGE 51472-33 WELDMENT, UPPER TRANSPORT MOUNT 51475-35 ARM, EXTENSION TUBE 51478-00 ASSEMBLY, TRANSPORT TUBE PN 55231-00 Macdon FD2 Crary Wind System...
