Crary Tile Pro Owner's & Parts Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

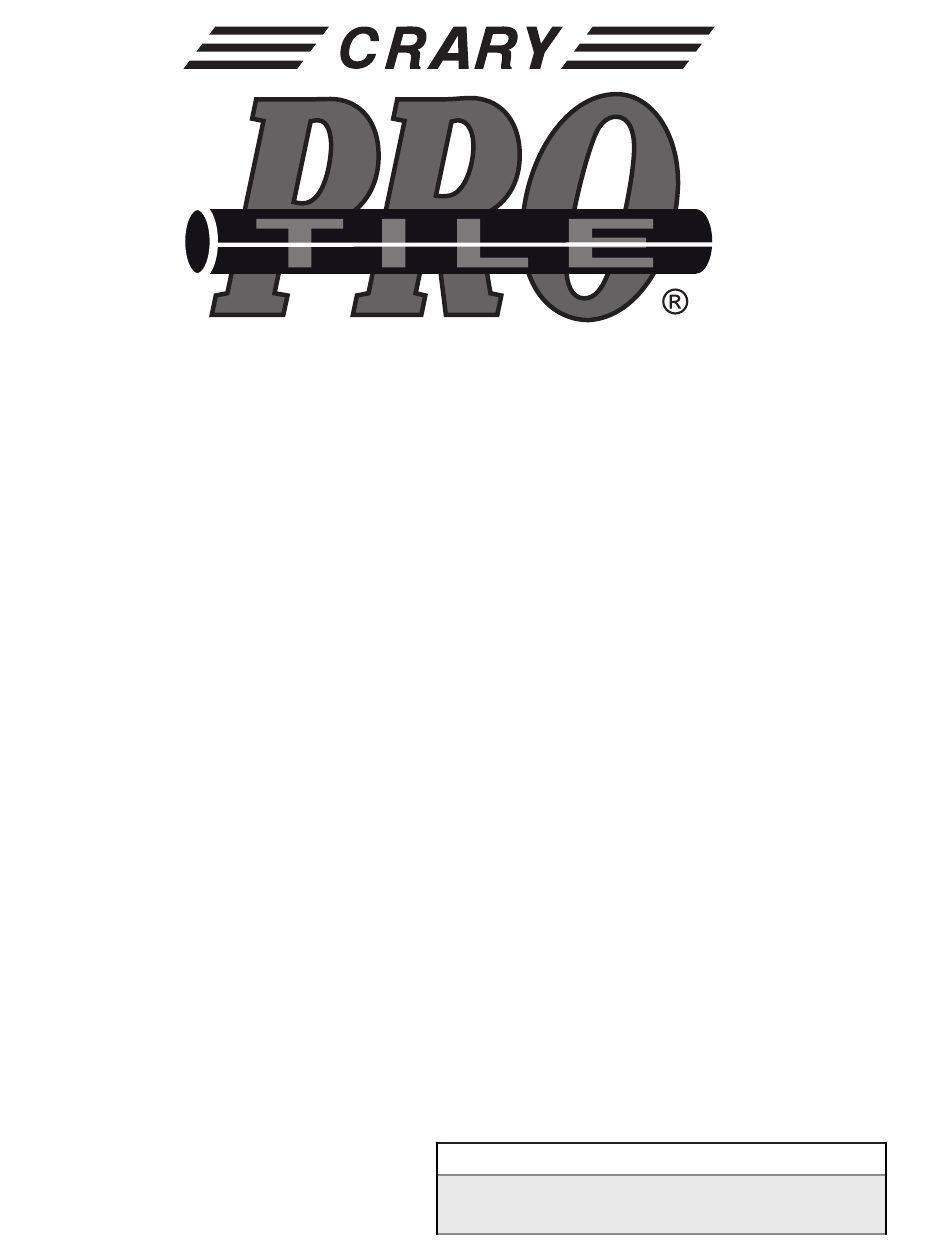

OWNER'S/PARTS
MANUAL
TILE PRO
RECORD SERIAL NUMBER HERE
Manual P/N: 90807-00
Rev. 090114

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tile Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Crary Tile Pro

Summary of Contents for Crary Tile Pro

  • Page 1 OWNER'S/PARTS MANUAL TILE PRO RECORD SERIAL NUMBER HERE Manual P/N: 90807-00 Rev. 090114...
  • Page 2 Features may be described herein which are not present in all systems. Crary Agricultural Solutions assumes no obligation of notice to holders of this document with respect to changes subsequently made.
  • Page 3 This warranty applies to all Crary Tile Pro equipment manufactured by Crary Agricultural Solutions, LLC (Crary). Crary warrants to the original owner of each new Crary Tile Pro product to be free from defects in material and workmanship, under normal use and service. The warranty shall extend as shown below from date of delivery. The product is warranted to the original owner as evidenced by a completed warranty registration on file at Crary and is non-transferable beyond the initial purchaser.
  • Page 4 Tile Plow Owner’s/Parts Manual PN:90807-00 R090114...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS DESCRIPTION PAGE DESCRIPTION PAGE INTRODUCTION ............ 1 SAFETY ..............2 2.1 SAFETY ALERT SYMBOL ..............2 2.2 CALL BEFORE YOU DIG ..............3 2.3 GENERAL SAFETY................4 2.4 OPERATING SAFETY ................5 2.5 MAINTENANCE SAFETY ..............5 2.6 HYDRAULIC SAFETY ................
  • Page 6 Tile Plow Owner’s/Parts Manual PN:90807-00 R090114...

  • Page 7: Introduction

    Use the Table of Contents as a guide to locate required information. Keep this manual handy for frequent reference and to pass on to new operators or owners. Call your Crary Tile Pro dealer or distributor if you need assistance, information, or additional copies of the manual.

  • Page 8: Safety

    SAFETY Section 2.1 SAFETY ALERT SYMBOL This Safety Alert Symbol means: The Safety Alert symbol identifies important safety messages on the Tile Plow and in the manual. When you see this symbol, be ATTENTION! BECOME ALERT! alert to the possibility of personal injury or YOUR SAFETY IS INVOLVED! death.

  • Page 9: Call Before You Dig

    SAFETY 2.2 CALL BEFORE YOU DIG Call 811 first. You really have no idea what is under the ground. your life! It’s a free service and could save ALWAYS CALL BEFORE YOU One free, easy call gets your utility lines marked AND helps protect you from injury and expense.

  • Page 10: General Safety

    SAFETY 2.3 GENERAL SAFETY YOU are responsible for the SAFE operation and mainte- 1. Read and understand the nance of your Tile Plow. You must ensure that you and any- Owner’s Manual and all safe- one else who is going to operate, maintain or work around ty decals before operating, the machine are familiar with the operat ing and maintenance maintaining, adjusting or...

  • Page 11: Operating Safety

    SAFETY 2.4 OPERATING SAFETY 2.5 MAINTENANCE SAFETY 1. Follow ALL operating, maintenance, and safety informa- 1. Read and understand the owner’s manual and all safety tion in this manual. decals before servicing, adjusting or repairing. 2. Support the equipment with blocks or safety stands 2.

  • Page 12: Hydraulic Safety

    SAFETY 2.7 TRANSPORT SAFETY 2.6 HYDRAULIC SAFETY 1. Make sure you are in compliance with all local regula- 1. Always place all hydraulic controls in neutral before dis- tions regarding transporting equipment on public roads connecting from tractor or working on hydraulic system. and highways.

  • Page 13: Safety Decals

    SAFETY 2.10 SAFETY DECALS 1. Keep safety decals clean and legible at all times. 2. Replace safety decals that are missing or have become illegible. 3. Replaced parts that displayed a safety decal should also display the current decal. 4. Decals that need to be replaced are to be placed back in the original location.

  • Page 14: Sign-Off Form

    SAFETY 2.11 SIGN-OFF FORM Crary Agricultural Solutions follows the general safety standards specified by the American Society of Agricultural En- gineers (ASAE) and the Occupational Safety and Health Administration (OSHA). Anyone who will be operating and/ or maintaining the equipment must read and clearly understand ALL safety, operating and maintenance information presented in this manual.

  • Page 15: Safety Decals

    SAFETY DECALS Section Good safety requires that you familiarize yourself with the various safety decals, the type of warning and the area, or particular function related to that area, that requires your SAFETY AWARENESS. Think SAFETY! Work SAFELY! PN: 32901-000 PN: 32893-00 REMEMBER - If safety decals have been damaged, removed or become illegible or parts have been replaced without safety decals, new decals must be applied.

  • Page 16: Assembly

    ASSEMBLY Section Read all instructions to become familiar with the parts and Unload the plow using one of the following methods. (Fig- procedure used before starting the actual work. You may ure 1) refer to the parts catalog in the back of this manual for ad- METHOD 1: ditional aid.

  • Page 17: Hydraulic Hose Identification

    ASSEMBLY 4.1 UNLOADING (CONTINUED) 4.2 HYDRAULIC HOSE IDENTIFICATION Make sure that the jack stands are solidly bolted on and in Hoses are identified with an attached colored zip tie the perpendicular position to the ground. (Figure 2) Do not • Elevation Up =Red over extend the arms as they may become unstable and fail.

  • Page 18: Power Feeder (Pf-100)

    ASSEMBLY 4.3 POWER FEEDER (PF-100) Bolt the grey swing arm mounting bracket to the laser arm Mount the power feeder to the arm assembly using the as shown in Figure 4. silver colored pin and clip. Figure 4: Power Feeder Mounting Bracket Figure 6: Mount Power Feeder The 4”...
  • Page 19 ASSEMBLY 4.3 POWER FEEDER (PF-100) Figure 8: Weld Locations Tile Plow Owner’s/Parts Manual PN:90807-00 R090114...

  • Page 20: Operation

    OPERATION Section WARNING 5. Clear the area of bystanders, especially small chil- 1. Read and understand the owner’s manual and all dren, before starting. safety signs before servicing, adjusting or repairing. 6. Keep all hydraulic lines, fittings, and couplers tight 2.

  • Page 21: Machine Components

    OPERATION 5.1 MACHINE COMPONENTS A. Mast Arm H. Main Hitch O. Boot Pin B. Gauge Rod Jack Stands P. Lower A-Frame C. Upper A-Frame J. Shipping Bar Q. Elevation Cylinders D. Upper Main Pin K. Removable Knife Tip R. Main Pin E.

  • Page 22: Initial Adjustments

    OPERATION you stop and start or you run the risk of burning a 5.2 INITIAL ADJUSTMENTS hole in the tile. Before going to the field be sure to do the following: • If using the automatic hydraulics of your tractor •...

  • Page 23: Pitch Grading With A Laser

    OPERATION 5.4 PITCH GRADING WITH A LASER 5.5 PITCH GRADING WITH GPS 1. After you have set your laser to grade and are prepared NOTE to lay pipe, lower the plow into trench or starter hole to your determined depth. To begin operation be sure to consult the AGPS or Trimble control system user guide.

  • Page 24: Dual Grading With Gps

    OPERATION 5.6 DUAL GRADING WITH GPS 5.7 PARALLEL GRADING MODE The parallel mode is when you can raise your plow up and NOTE down with the long 5” x 36” cylinders, and not change the angle of the plow shank or knife tip. To begin operation be sure to consult the AGPS or Trimble control system user guide.

  • Page 25: Parallel Grading With A Laser

    OPERATION 5.8 PARALLEL GRADING WITH A LASER 5.9 PARALLEL GRADING WITH GPS NOTE 1. After you have set your laser to grade and are prepared to lay pipe, lower the plow into trench or starter hole to To begin operation be sure to consult the AGPS or Trimble your determined depth.

  • Page 26: Transporting

    OPERATION 5.10 TRANSPORTING 5.11 STORAGE The Tile Plow is designed to be easily and conveniently 8. Move the equipment to its storage area. moved from location to location. When transporting the 9. Select an area that is dry, level, and free of debris. equipment, review and follow these safety instructions: 10.

  • Page 27: Service & Maintenance

    SERVICE & MAINTENANCE Section 6.1 MAINTENANCE CHECKLIST Along with a servicing interval, perform a visual inspection. Maintenance personnel can often detect potential problems from any unusual sounds made by such components as shafts, bearings and drives. These service recommendations are based on normal operating conditions. Severe or unusual conditions may require more frequent attention.

  • Page 28: Fluids And Lubricants

    SERVICE & MAINTENANCE 6.3 GREASING 6.2 FLUIDS AND LUBRICANTS 1. Use the maintenance checklist provided to keep a 1. GREASE: Use an SAE multi-purpose high temperature record of all scheduled maintenance. grease with extreme pressure (EP) performance meet- ing or exceeding the NLGI #2 rating for all requirements. 2.

  • Page 29: Troubleshooting

    If you encounter a problem that is difficult to solve, even after having read through this troubleshooting section, please call your local Crary dealer. Before you call, please have this manual and the serial number from your machine ready. BEFORE YOU CALL...

  • Page 30: Specifications

    SPECIFICATIONS Section 8.1 TILE PLOW SPECIFICATIONS MODEL 612 MODEL 712 DIMENSIONS Height (transport position) Varies by tractor Varies by tractor Width (transport position) Varies by tractor Varies by tractor Height (operating position) 10.6 ft. (3.2 m) 11.6 (3.5 m) WEIGHT Weight 7500 lbs.

  • Page 31: Hydraulic Fitting Torque

    SPECIFICATIONS 8.2 HYDRAULIC FITTING TORQUE TIGHTENING FLARE TYPE TUBE FITTINGS * FLARE TYPE TUBE FITTINGS NUT SIZE RECOMMENDED TURNS TUBE SIZE TORQUE ACROSS TO TIGHTEN 1. Check flare and flare seat for defects that might VALUE * FLATS (AFTER FINGER TIGHTENING) cause leakage.

  • Page 32: Bolt Torque

    The table shown below is for reference purposes only and its use by anyone is entirely voluntary, unless otherwise noted. Reliance on its contents for any purpose is at the sole risk of that person. Crary Co. is not responsible for any loss claim or damage arising therefrom.
  • Page 33 Tile Plow Owner’s/Parts Manual PN:90807-00 R090114...
  • Page 34 Tile Plow Owner’s/Parts Manual PN:90807-00 R090114...
  • Page 36 SERIAL NUMBER LOCATION Always give Lockwood the serial number of your machine when ordering parts, requesting service, or any other information. Please record the serial number in the space provided on the front cover and on the war- ranty and registration card. OPERATOR ORIENTATION All references to left, right, front and rear of the machine, as mentioned throughout the manual, are determined by standing behind the machine and facing the direction of forward travel.
  • Page 37 CONTENTS DESCRIPTION PAGE BOOT - 6 FT. ABRASION RESISTANT ..................................42 BOOT - 6 FT. STAINLESS STEEL ....................................44 BOOT - 7 FT. ABRASION RESISTANT ..................................43 BOOT - 7 FT. STAINLESS STEEL ....................................45 HOSE KIT ............................................39 HOSE KIT - POWER FEEDER .....................................51 KNIFE FACE..........................................37 KNIFE FACE - BOOT ........................................46 KNIFE TIP .............................................36...

  • Page 38: Tile Plow (Standard)

    TILE PLOW (STANDARD) 6 FT. & 7 FT. 09/14 PN:90807-00 R090114 Tile Plow Owner’s/Parts Manual...
  • Page 39 DECAL, MODEL 712 32893-00 DECAL, CHOKE POINT 30662-00 DECAL, MADE 29 YEARS IN USA 32898-00 DECAL, TILE PRO, LARGE 32901-00 DECAL, 8II CALL BEFORE YOU DIG, HORIZONTAL 90208 ASSEMBLY, KNIFE TIP - BOLT ON (PAGE 36) 90209 ASSEMBLY, LEVEL - WATER (PAGE 38)

  • Page 40: Tile Plow (Steerable)

    TILE PLOW (STEERABLE) 6 FT. & 7 FT. 09/14 PN:90807-00 R090114 Tile Plow Owner’s/Parts Manual...
  • Page 41 DECAL, MODEL 712 32893-00 DECAL, CHOKE POINT 30662-00 DECAL, MADE 29 YEARS IN USA 32898-00 DECAL, TILE PRO, LARGE 32901-00 DECAL, 8II CALL BEFORE YOU DIG, HORIZONTAL 35068-00 VALVE, DUAL RELIEF W/CHECK 90208 ASSEMBLY, KNIFE TIP - BOLT ON (PAGE 36)

  • Page 42: Knife Tip

    KNIFE TIP 09/14 ASSEMBLY, KNIFE TIP - BOLT ON (90208) ITEM PART NUMBER DESCRIPTION 0103-0675-00 BOLT, 3/4 X 6-1/2 HEX GR5 ZP 15027 NUT, 3/4 SERR FLANGE 90618-33 WELDMENT, KNIFE TIP PN:90807-00 R090114 Tile Plow Owner’s/Parts Manual...

  • Page 43: Knife Face

    KNIFE FACE 09/14 ASSEMBLY, KNIFE FACE 6” (90269) ITEM PART NUMBER DESCRIPTION 15947-00 PIN, 3/8 X 1-1/2 LYNCH 90617-33 WELDMENT, 6" KNIFE FACE Tile Plow Owner’s/Parts Manual PN:90807-00 R090114...

  • Page 44: Water Level

    WATER LEVEL 09/14 ASSEMBLY, LEVEL - WATER (90209) ITEM PART NUMBER DESCRIPTION 15053 NUT, 1/4-20 SERR FLANGE NC ZP 15920-00 BOLT, 1/4 X 4.00 HEX GR5 ZP 15950-00 U-BOLT, 1/4 X 1 X 2.125 RND ZP 90570-27 SHEET, WATER LEVEL 90571-27 SHEET, WATER LEVEL 90572-27...

  • Page 45: Hose Kit

    6 FT. & 7 FT. 09/14 HOSE KIT STEERABLE HOSE KIT, STEERABLE PLOW (90273-00) ITEM PART NUMBER DESCRIPTION 16605 COUPLER, 1/2 X -8 FORING MALE 90535-00 HOSE, .375 X 45 -8 FJICSW 90 DEG. / -8 MORING 90 DEG. 90536-00 HOSE, .375 X 45 -8 FJIC / -8 MORING 90537-00 HOSE, .375 X 45 -8 FJIC / -8 MORING 90 DEG.

  • Page 46: Lower Linkage

    LOWER LINKAGE 09/14 HOSE KIT, 7 FT. LOWER LINKAGE (90235-00) ITEM PART NUMBER DESCRIPTION 16605 COUPLER, 1/2 X -8 FORING MALE 32812-00 ADAPTER, -8 FNPT / -8 FNPT / -8 FNPT TEE 90532-00 HOSE, .50 X 90 -8 MORING / -8 NPTF 90533-00 HOSE, .50 X 68 -8 MORING / -8 NPTF 90534-00...

  • Page 47: Upper Linkage

    UPPER LINKAGE 09/14 HOSE KIT, 7 FT. UPPER LINKAGE (90236-00) ITEM PART NUMBER DESCRIPTION 0163-0139-00 ADAPTER, -12 MNPT / -8 FMNPT 90 DEG. 16605 COUPLER, 1/2 X -8 FORING MALE 32812-00 ADAPTER, -8 FNPT / -8 FNPT / -8 FNPT TEE 90530-00 HOSE, .50 X 136 -8 MORING / -8 NPTF 90531-00...

  • Page 48: Boot - 6 Ft. Abrasion Resistant

    BOOT - 6 FT. ABRASION RESISTANT 6 FT. 09/14 KIT, 6 FT. ABRASION RESISTANT BOOT WITH KNIFE FACE 90257 90259 90261 PART ITEM DESCRIPTION 6' X 8" 6' X 10" 6' X 12" NUMBER 90111 ASSEMBLY, ABRASION RESISTANT BOOT - 6'X8" 90113 ASSEMBLY, ABRASION RESISTANT BOOT - 6'X10"...

  • Page 49: Boot - 7 Ft. Abrasion Resistant

    09/14 7 FT. BOOT - 7 FT. ABRASION RESISTANT KIT, 7 FT. ABRASION RESISTANT BOOT WITH KNIFE FACE 90263 90265 90267 PART ITEM DESCRIPTION 7' X 8" 7' X 10" 7' X 12" NUMBER 90123 ASSEMBLY, ABRASION RESISTANT BOOT - 7'X8" 90125 ASSEMBLY, ABRASION RESISTANT BOOT - 7'X10"...

  • Page 50: Boot - 6 Ft. Stainless Steel

    BOOT - 6 FT. STAINLESS STEEL 6 FT. 09/14 KIT, 6 FT. STAINLESS STEEL BOOT WITH KNIFE FACE 90258 90260 90262 PART ITEM DESCRIPTION 6' X 8" 6' X 10" 6' X 12" NUMBER 90112 ASSEMBLY, STAINLESS STEEL SKIN BOOT - 6'X8" 90114 ASSEMBLY, STAINLESS STEEL SKIN BOOT - 6'X10"...

  • Page 51: Boot - 7 Ft. Stainless Steel

    BOOT - 7 FT. STAINLESS STEEL 09/14 7 FT. KIT, 7 FT. STAINLESS STEEL BOOT WITH KNIFE FACE 90264 90266 90268 PART ITEM DESCRIPTION 7' X 8" 7' X 10" 7' X 12" NUMBER 90124 ASSEMBLY, STAINLESS STEEL SKIN BOOT - 7'X8" 90126 ASSEMBLY, STAINLESS STEEL SKIN BOOT - 7'X10"...

  • Page 52: Knife Face - Boot

    KNIFE FACE - BOOT 6 FT. 09/14 ASSEMBLY, KNIFE FACE 90204 90205 90206 PART ITEM DESCRIPTION 8" 10" 12" NUMBER 15947-00 PIN, 3/8 X 1-1/2 LYNCH 90852-33 WELDMENT, 8" KNIFE FACE 90856-33 WELDMENT, 10" KNIFE FACE 90860-33 WELDMENT, 12" KNIFE FACE PN:90807-00 R090114 Tile Plow Owner’s/Parts Manual...
  • Page 53 THIS PAGE INTENTIONALLY LEFT BLANK Tile Plow Owner’s/Parts Manual PN:90807-00 R090114...

  • Page 54: Power Feeder

    POWER FEEDER 09/14 PN:90807-00 R090114 Tile Plow Owner’s/Parts Manual...
  • Page 55 32562-00 CLAMP, DOUBLE TUBE, .687 DIA, VINYL COATED 32566-00 TIRE, 13X5.00-6 32569-00 FLOW CONTROL, PARKER F800S 32719-00 DECAL, SERIAL NUMBER 32892-00 DECAL, TILE PRO, SMALL 90031-27 WELDMENT, SHELL 90039-27 WELDMENT, SIDE MOUNT 90045-27 WELDMENT, IDLER BRACE 90048-27 WELDMENT, IDLER BRACKET...

  • Page 56: Swing Arm & Mount

    SWING ARM & MOUNT 09/14 ASSEMBLY, PF-100 SWING ARM & MOUNT (90056-00) ITEM PART NUMBER DESCRIPTION 0122-0064-00 PIN, 3/16 X 2 COTTER ZP 0122-0230-00 PIN, .120 X 2.375 HAIRPIN ZP 15616 NUT, 1/2 SERR FLANGE 15017 BOLT, 1/2 X 4-1/2 HEX GR5 NC ZP 15923-00 PIN, 1.00 X 5.00 CAP HEAD 90057-33...

  • Page 57: Hose Kit - Power Feeder

    HOSE KIT - POWER FEEDER 09/14 HOSE KIT, PF-100 (90070-00) ITEM PART NUMBER DESCRIPTION 16605 COUPLER, 1/2 X -8 FORING MALE 32842-00 ADAPTER, -8 NPTF / -8 NPSM 32843-00 ADAPTER, -8 NPTF / -8 NPTF 90271-00 HOSE, .375 X 258 -8 NPTF / -8 MORING Tile Plow Owner’s/Parts Manual PN:90807-00 R090114...
  • Page 58 PN:90807-00 R090114 Tile Plow Owner’s/Parts Manual...
  • Page 60 Part # Page(s) Part # Page(s) Part # Page(s) 0103-0675-00 ..........36 90056-00 ..........49,50 90571-27 ............38 0103-0698-00 .......... 33,35 90057-33 ............50 90572-27 ............38 0122-0056-00 ..........49 90061-33 ............50 90617-33 ............37 0122-0062-00 ..........49 90064-33 ............50 90618-33 ............
  • Page 61 Part # Page(s) Part # Page(s) Part # Page(s) Tile Plow Owner’s/Parts Manual PN:90807-00 R090114...
  • Page 64 Crary Industries 237 12th St. NW • P.O. Box 849 West Fargo, ND 58078-0849 PH: 1-800-247-7335 • FAX: (701)282-9522 www.crary.com...
