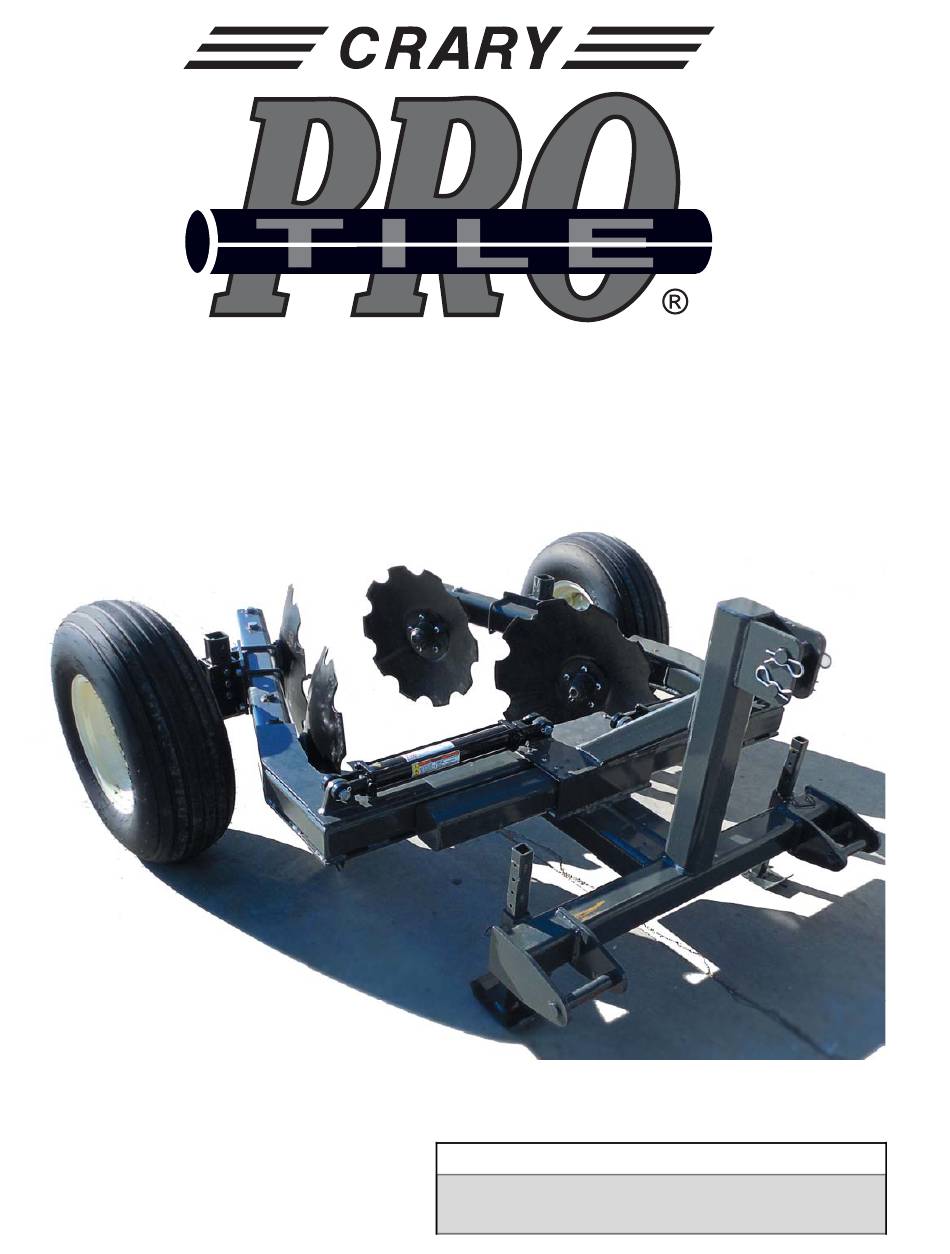

- Page 1 OWNER'S/PARTS MANUAL TRENCH FILLER RECORD SERIAL NUMBER HERE Manual P/N:91316-00 Rev. 122818.00...
- Page 2 Features may be described herein which are not present in all systems. Crary Agricultural Solutions assumes no obligation of notice to holders of this document with respect to changes subsequently made.
- Page 3 This warranty applies to all Crary Tile Pro equipment manufactured by Crary Agricultural Solutions, LLC (Crary). Crary warrants to the original owner of each new Crary Tile Pro product to be free from defects in material and workmanship, under normal use and service. The warranty shall extend as shown below from date of delivery. The product is warranted to the original owner as evidenced by a completed warranty registration on fi...
- Page 4 Trench Filler Owner’s/Parts Manual PN:91316-00...
-
Page 5: Table Of Contents
TABLE OF CONTENTS DESCRIPTION PAGE DESCRIPTION PAGE INTRODUCTION ..........1 5.5 OPTIONAL ROLLING BASKET ............13 5.6 OPTIONAL WHEEL KIT ..............13 5.7 TRANSPORTING ................14 SAFETY ..............2 5.8 STORAGE ..................14 2.1 SAFETY ALERT SYMBOL ..............2 2.2 CALL BEFORE YOU DIG ..............3 PARTS .............. - Page 6 TRENCH FILLER WITH ROLLING BASKET KIT TRENCH FILLER WITH WHEEL ATTACHMENT KIT Trench Filler Owner’s/Parts Manual PN:91316-00...
-
Page 7: Introduction
Keep this manual handy for frequent reference and to pass on to new operators or owners. Call your Crary Tile Pro OPERATOR ORIENTATION - All references to left, right, front and rear of the equipment, as mentioned throughout the manual, are determined by standing behind the machine and facing the direction of forward travel. -
Page 8: Safety
SAFETY Section 2.1 SAFETY ALERT SYMBOL This Safety Alert Symbol means: The Safety Alert symbol identifi es important safety messages on the Stringer Trailer and in the manual. When you see this symbol, ATTENTION! BECOME ALERT! be alert to the possibility of personal injury or YOUR SAFETY IS INVOLVED! death. -
Page 9: Call Before You Dig
SAFETY 2.2 CALL BEFORE YOU DIG Call 811 fi rst. You really have no idea what is under the ground. your life! It’s a free service and could save ALWAYS CALL BEFORE YOU One free, easy call gets your utility lines marked AND helps protect you from injury and expense. -
Page 10: General Safety
SAFETY 2.3 GENERAL SAFETY YOU are responsible for the SAFE operation and main- 1. Read and understand the tenance of your Stringer Trailer. You must ensure that Owner’s Manual and all safe- you and any one else who is going to operate, maintain or ty decals before operating, work around the machine are familiar with the operat ing maintaining, adjusting or... -
Page 11: Operating Safety
SAFETY 2.4 OPERATING SAFETY 2.5 MAINTENANCE SAFETY 1. Follow ALL operating, maintenance, and safety 1. Read and understand the owner’s manual and all safety information in this manual. decals before servicing, adjusting or repairing. 2. Support the equipment with blocks or safety stands 2. -
Page 12: Hydraulic Safety
SAFETY 2.7 TRANSPORT SAFETY 2.6 HYDRAULIC SAFETY 1. Make sure you are in compliance with all local 1. Always place all hydraulic controls in neutral before regulations regarding transporting equipment on public disconnecting from tractor or working on hydraulic roads and highways. system. -
Page 13: Safety Decals
SAFETY 2.10 SAFETY DECALS 1. Keep safety decals clean and legible at all times. 2. Replace safety decals that are missing or have become illegible. 3. Replaced parts that displayed a safety decal should also display the current decal. 4. Decals that need to be replaced are to be placed back in the original location. -
Page 14: Sign-Off Form
SAFETY 2.11 SIGN-OFF FORM Crary Agricultural Solutions follows the general safety standards specifi ed by the American Society of Agricultural Engineers (ASAE) and the Occupational Safety and Health Administration (OSHA). Anyone who will be operating and/ or maintaining the equipment must read and clearly understand ALL safety, operating and maintenance information presented in this manual. -
Page 15: Safety Decals
SAFETY DECALS Section Good safety requires that you familiarize yourself with the various safety decals, the type of warning and the area, or particular function related to that area, that requires your SAFETY AWARENESS. Think SAFETY! Work SAFELY! PN: 32901-000 REMEMBER - If safety decals have been damaged, removed or become illegible or parts have been replaced without safety decals, new decals must be applied. -
Page 16: Assembly
ASSEMBLY Section Read all instructions to become familiar with the parts and procedure used before starting the actual work. You may refer to the parts catalog in the back of this manual for additional aid. 4.1 MOUNTING INSTRUCTIONS 1. Back tractor up to Trench Filler. 2. - Page 17 ASSEMBLY REMOVE STABILIZERS BEFORE OPERATION Figure 2: REMOVING STABILIZERS FOR OPERATION PN:91316-00 Trench Filler Owner’s/Parts Manual...
-
Page 18: Operation
OPERATION Section WARNING 1. Read and understand the owner’s manual and all 5. Clear the area of bystanders, especially small chil- safety signs before servicing, adjusting or repairing. dren, before starting. 2. Install and secure all guards and shields before start- 6. -
Page 19: Pre-Operation Checklist
OPERATION 5.2 PRE-OPERATION CHECKLIST 5.4 HITCH SETTINGS - DRAFT CONTROL Effi cient and safe operation of the Trench Filler requires Adjust tractor 3pt draft control to achieve desired working that each operator reads and understands the operating depth and allow Trench Filler to follow terrain. procedures and all related safety precautions outlined in this section. -
Page 20: Transporting
OPERATION 5.7 TRANSPORTING 5.8 STORAGE The Trench Filler is designed to be easily and conveniently 8. Select an area that is dry, level, and free of debris. moved from location to location. When transporting the 9. If the equipment cannot be stored inside, cover with a equipment, review and follow these safety instructions: waterproof tarpaulin and tie securely in place. -
Page 21: Parts
PA R T S MANUAL PARTS... -
Page 22: Narrow Trench Filler Assembly
PARTS NARROW TRENCH FILLER ASSEMBLY Trench Filler Owner’s/Parts Manual PN:91316-00... - Page 23 0122-0064-00 PIN, 3/16 X 2 COTTER ZP 0732-0093-00 DECAL, RED 2" X 9" 32889-00 DECAL, CTP, WEB 32892-00 DECAL, TILE PRO, SMALL 33802-00 HOSE,.375 X 84" -8MORING/-8MORING90SW 33803-00 HOSE,.375 X 102" -8MORING/-8MORING90SW 36366-00 CYLINDER, 2 X 140 DEG HYDRAULIC 73449-12...
-
Page 24: Wide Trench Filler Assembly
PARTS WIDE TRENCH FILLER ASSEMBLY Trench Filler Owner’s/Parts Manual PN:91316-00... - Page 25 SICKLE BOLT,7/32”X1”CSK.HD. 0122-0064-00 PIN, 3/16 X 2 COTTER ZP 0732-0093-00 DECAL, RED 2” X 9” 32889-00 DECAL, CTP, WEB 32892-00 DECAL, TILE PRO, SMALL 33802-00 HOSE,.375X84” -8MORING/-8MORING90SW 33803-00 HOSE,.375X102” -8MORING/-8MORING90SW 36366-00 CYLINDER, 2 X 14 O DEG HYDRAULIC 73449-12 WELDMENT, REAR STABILIZER...
-
Page 26: Wheel Attachment Kit
PARTS OPTIONAL WHEEL ATTACHMENT KIT Trench Filler Owner’s/Parts Manual PN:91316-00... - Page 27 PARTS OPTIONAL WHEEL ATTACHMENT KIT WHEEL ATTACHMENT KIT (91275) ITEM PART NUMBER DESCRIPTION 15034 WASHER, 1/2 FLAT 15174 BOLT, 1/2 X 4 HEX HD 15234 BOLT, 1/2 X 6 HEX HD 15162-00 NUT, 1/2-13 NYLOCK FLANGE 30301-00 ASSEMBLY, WHEEL ST225-75R15 91268-33 PLATE, WHEELMOUNT-INSIDE 91279-33...
-
Page 28: Rolling Basket Kit
PARTS OPTIONAL ROLLING BASKET KIT BASKET ROLLING KIT (91285) ITEM PART NUMBER DESCRIPTION 15023 BOLT, 5/8 X 6 HEX HD 15038 NUT, 5/8” SERRATED FLANGE 0122-0064-00 PIN, 3/16 X 2 COTTER ZP 15923-00 PIN, CAP HEAD, 1 X 5 33278-00 ASSEMBLY, BASKET ROLLING 48”... - Page 29 PARTS PN:91316-00 Trench Filler Owner’s/Parts Manual...
- Page 32 Crary Industries 237 12th St. NW • P.O. Box 849 West Fargo, ND 58078-0849 Manufactured in the PH: 1-800-247-7335 • FAX: (701)282-9522 United States of America www.crary.com by Crary Industries...
