Summary of Contents for IKA PETTE fix

  • Page 1 IKA PETTE...
  • Page 3 ENGLISH...

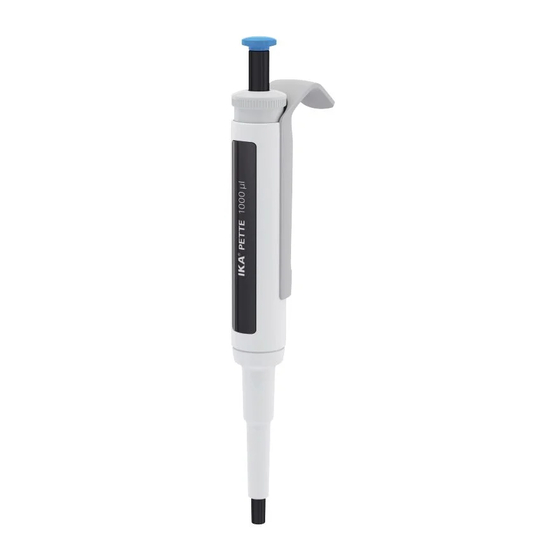

  • Page 4 PETTE fix PETTE vario Fig. 1...
  • Page 5: Table Of Contents

    Declaration of conformity ������������������������������������������������������������������6 Explication of warning symbols ��������������������������������������������������������� 6 Safety instructions ����������������������������������������������������������������������������� 7 Intended use ������������������������������������������������������������������������������������� 8 Unpacking ���������������������������������������������������������������������������������������� 9 Assembly ���������������������������������������������������������������������������������������� 10 Operation ��������������������������������������������������������������������������������������� 12 Maintenance and cleaning �������������������������������������������������������������� 19 Accessories ������������������������������������������������������������������������������������� 32 Troubleshooting ������������������������������������������������������������������������������ 33 Technical Data �������������������������������������������������������������������������������� 34 Warranty ����������������������������������������������������������������������������������������...
  • Page 6: Declaration Of Conformity

    We declare under our sole responsibility that this product conforms with the following standards or other normative documents: EN ISO 12100, EN ISO 8655-6� A copy of the complete Declaration of Conformity can be requested at sales@ika�com� Explication of warning symbols...
  • Page 7: Safety Instructions

    › Follow the cleaning instructions� › Check the nominal volume after replacing parts that might affect it� /// Accessories › Safe operation is guaranteed only with the use of original IKA accessories� › Only use IKA original spare parts! /// Disposal instructions ›...
  • Page 8: Intended Use

    /// Area of use › The device is suitable for use in all areas if the operating conditions are observed, IKA accessories are used and the safety regulations and information are followed� › Any use of this device in a medical environment or in the context of IVD is the sole...
  • Page 9: Unpacking

    (mail, rail or freight forwarding company)� /// Scope of delivery only for PETTE 0.5–5 ml/1–10 ml IKA PETTE Filters (3x) Large handle (hard material) IKA PETTE grease Large handle (soft material) User guide Small handle (hard material) Warranty card Holding bracket Calibration certificate...
  • Page 10: Assembly

    Assembly /// Operating elements and display Ejector Pipetting button Tipcone Handle Shaft Multi-function button Seal Housing Piston Display Serial number...
  • Page 11 /// Change the handle 2�1 3 or 4 2�2 Click Click...
  • Page 12: Operation

    Operation /// Setting the volume (for PETTE vario)
  • Page 13 /// Attaching the filter (for PETTE 0.5 - 5 ml/1 - 10 ml) /// Attaching pipette tips...
  • Page 14 /// Pipetting...
  • Page 15 Pipetting recommendations › Observe “Technical data“� › The pipette, pipette tip and liquid to be pipetted must have reached the ambient tempera- ture� › Only aspirate liquid if a pipette tip is attached to the tip cone� › Do not touch the pipette tip at the tip orifice� ›...
  • Page 17 Reverse pipetting ≈2...5mm...
  • Page 19: Maintenance And Cleaning

    Maintenance and cleaning › A pipette should be cleaned, greased and checked (calibrated), at regular intervalls (IKA recommendation every 4 months or immediately in case of contamination)� /// Materials of pipette parts › PSU (polysulfone) › Stainless Steel › PP (polypropylene) ›...
  • Page 20 /// Disassembling & reassembling Vario 0,1 - 2 µl | 0,5 - 10 µl | 2 - 20 µl Fix 5 µl | 10 µl | 20 µl...
  • Page 21 Click Click Click Click...
  • Page 22 Vario 10 - 100 µl | 20 - 200 l Fix 25 µl | 50 µl | 100 µl | 200 l...
  • Page 23 Click Click Click Click...
  • Page 24 Vario 100 - 1000 µl Fix 250 µl | 500 µl | 1000 µl...
  • Page 25 Click Click Click...
  • Page 26 Vario 0,5 - 5 ml...
  • Page 27 Click Click Click...
  • Page 28 Vario 1 - 10 ml...
  • Page 29 Click Click Click...
  • Page 30 › All pipettes are supplied by IKA with a calibration certificate� IKA recommends calibration ac- cording to EN ISO 8655 in regular intervals (IKA recommendation every 4 months or after every maintenance, cleaning or autoclaving)� If adjustment is necessary, please observe the following instructions�...
  • Page 31 Adjust IKA PETTE fix › Decrease or increase the volume by turning the pipetting button� Adjust IKA PETTE vario › Set the displayed volume to the mean volume measured during calibration by turning the mul- ti-function button� = V –...
  • Page 32: Accessories

    › It is recommended to store the pipette in a vertical position when not in use� Placing the pipette on its side can cause liquid to enter the pipette body and cause corrosion� IKA recommends the use of a pipette stand�...
  • Page 33: Troubleshooting

    › Piston (2 µl - 200 µl) or shaft (250 µl - 10 ml) soiled or damaged� › Filter (IKA PETTE vario 0,5 - 5 ml; 1 - 10 ml) soiled� Solutions › Clean and slightly grease the seal and the piston (2 µl - 200 µl) or the cylinder (250 µl - 10 ml)�...
  • Page 34: Technical Data

    Technical data /// IKA Pette fix: PETTE Fix (μl) 1000 Design Air displacement piston-operated pipette Handling mechanical Volume Number of channels Colour Code Gray Yellow Blue Nominal volume µl 1000 Accuracy with nominal volume ±µl 0�06 0�12 0�2 0�25 0�35 0�6...
  • Page 35: Warranty

    Warranty In accordance with IKA warranty conditions, the warranty period is 12 months� For claims under the warranty please contact your local dealer� You may also send the device direct to our factory, enclosing the delivery invoice and giving reasons for the claim� You will be liable for freight costs�...
  • Page 36 VIETNAM IKA Vietnam Company Limited Phone: +84 28 38202142 eMail: sales�lab-vietnam@ika�com Discover and order the fascinating products of IKA online: www.ika.com IKAworldwide IKAworldwide /// #lookattheblue @IKAworldwide Technical specifications may be changed without prior notice�...

This manual is also suitable for:
