INSTALLATION MANUAL
235SBPB1 Reduced Depth Backing Plate - INSERTS ONLY
CSA approved for use with Valor P2 200 Models installed in fully insert applications only
The 235SBPB1 Backing Plate can be installed on the P2 200
fi replace model in fully inserted applications only. It allows
installation in cavity with reduced depth of a miminum of 12".
The backing plate fi ts directly against the outside of the masonry
fi replace. The bottom of the plate is fl ush with the bottom of the
appliance when installed.
The 245CFV Front is required to complete this installation. See the
manual supplied with the front for details.
For 235BPB1 and 235BPB2 Backing plates installation, see manual
with each plate.

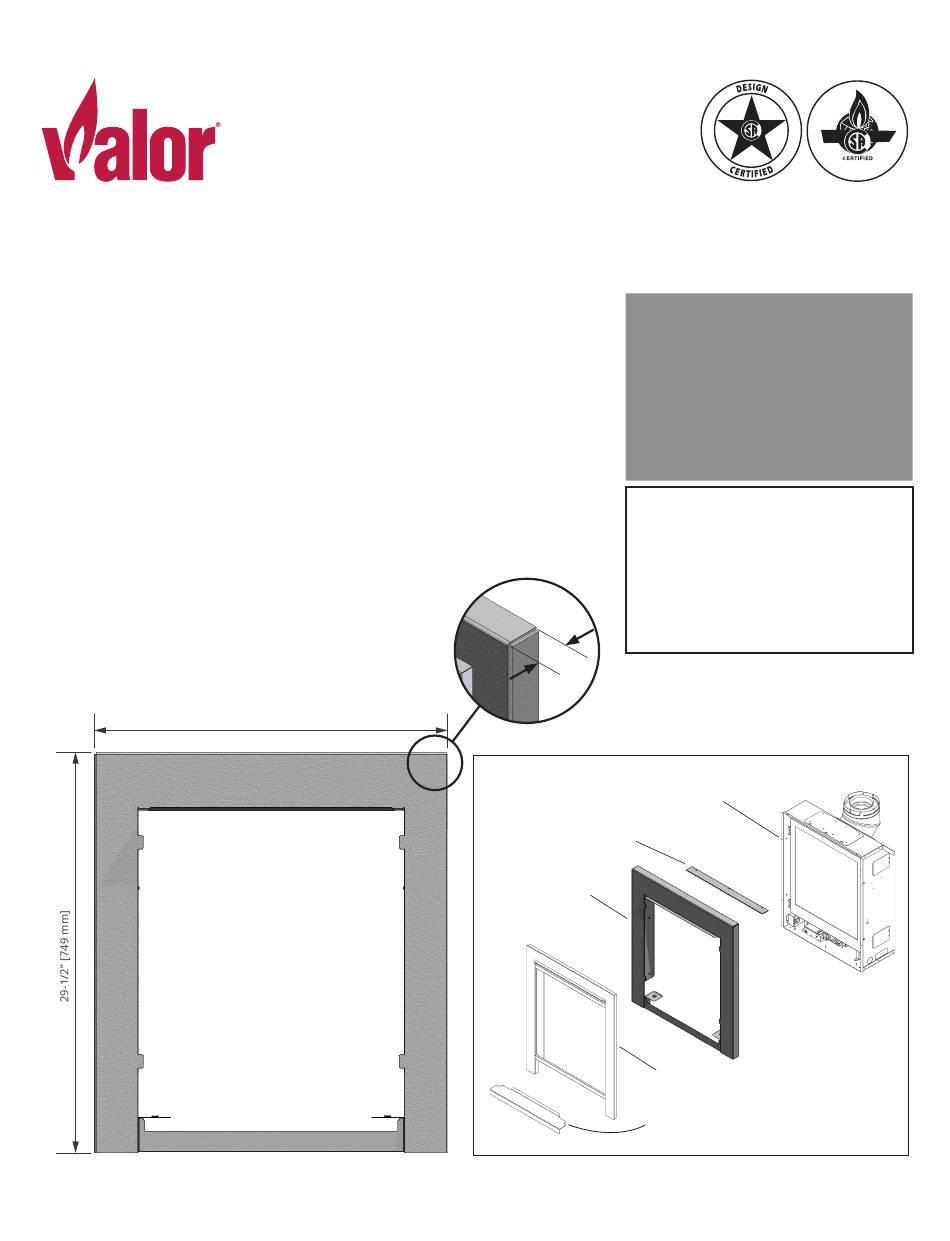

Dimensions
4009577-01
© Copyright Miles Industries Ltd., 2024
P2 Series
26" [661 mm]
I N ST A LL E R
L e a v e t h i s m a n u a l
w i t h t h e a p p l i a n c e .
C O N S U M E R
Retain this manual
for future reference.
Note: This kit must be installed
by a qualifi ed installer, service
agency or gas supplier at the time
of the heater installation. These
instructions are to be used in
1-1/2"
conjunction with the fi replace
[38 mm]
main installation instructions.
Overview
Convection
bracket
Backing plate
assembly
245CFV
Clearview Front
Removable panel
P2 200 engine
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the P2 235SBPB1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Valor P2 235SBPB1

  • Page 1 P2 Series 235SBPB1 Reduced Depth Backing Plate - INSERTS ONLY CSA approved for use with Valor P2 200 Models installed in fully insert applications only The 235SBPB1 Backing Plate can be installed on the P2 200 I N ST A LL E R fi...
  • Page 2 Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication. Designed and Manufactured by / for Miles Industries Ltd. 190 – 2255 Dollarton Highway, North Vancouver, B.C., CANADA V7H 3B1 Tel. 604-984-3496 Fax 604-984-0246 www.valorfi replaces.com...
  • Page 3 Plaque de fi nition, profondeur réduite 235SBPB1 ENCASTRABLES SEULEMENT Certifi é par la CSA pour usage avec les foyers Valor P2 200 dans applications encastrables avec foyer entièrement dans l'âtre seulement La plaque de fi nition 235SBPB1 peut être installée sur le foyer P2 200 dans INSTALLATEUR : Laissez une application encastrable seulement lorsqu'il est entièrement inséré...
  • Page 4 Installation Le P2 200 doit être installé dans un foyer de maçonnerie existant à combustibles solides d'une profondeur minimale de 12 pouces. 1. Placez le défl ecteur de convection sous le bord supérieur de la caisse de l'appareil et fi xez-le avec 3 vis à...
