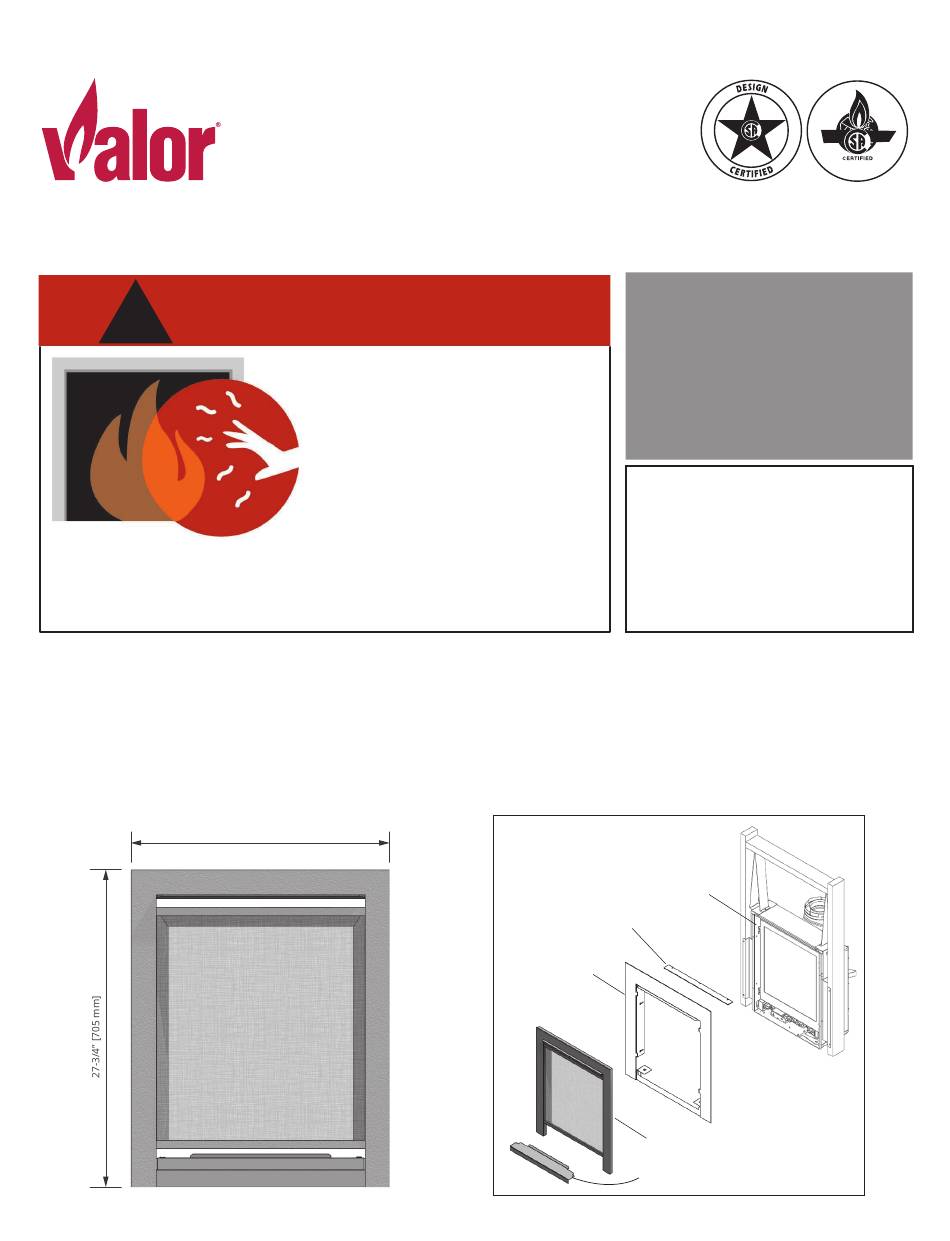

Valor P2 245CFV Installation Manual

INSTALLATION MANUAL
245CFV Clearview Front
CSA approved for use with Valor P2 200 Models only
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and must be
installed for the protection of children and other at-risk
individuals.
The 245CFV Clearview Front can be installed on the P2 200 fi replace model either in zero clearance or insert
applications using the 235BPB1 or 235BPB2 (fl at) Backing Plates, or in insert applications when fully inserted into
a solid-fuel burning cavity using the 235SBPB1 Reduced-depth Backing Plate, which allows a cavity of a minimum
depth of 12 inches.
Once installed, both the 245CFV and backing plate are fl ush with the bottom of the appliance. The backing plate sits
fl at against the wall fi nish or masonry, and the front trim protrudes slightly from the plate.
See separate instructions provided with the backing plate used for your installation. The backing plate must be
installed prior to installation of this front.
22-1/2" [571 mm]
4009578-01
© Copyright Miles Industries Ltd., 2024
P2 Series
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
I N ST A LL E R
L e a v e t h i s m a n u a l
w i t h t h e a p p l i a n c e .
C O N S U M E R
Retain this manual
for future reference.
Note: This kit must be installed
by a qualifi ed installer, service
agency or gas supplier at the time
of the heater installation. These
instructions are to be used in
conjunction with the fi replace
main installation instructions.
Overview
P2 200 engine
(shown zero
clearance)
Convection
bracket
Backing plate
assembly
(235BPB1
shown)
245CFV
Clearview Front
Removable panel
1
