Summary of Contents for Stairville AFH-600

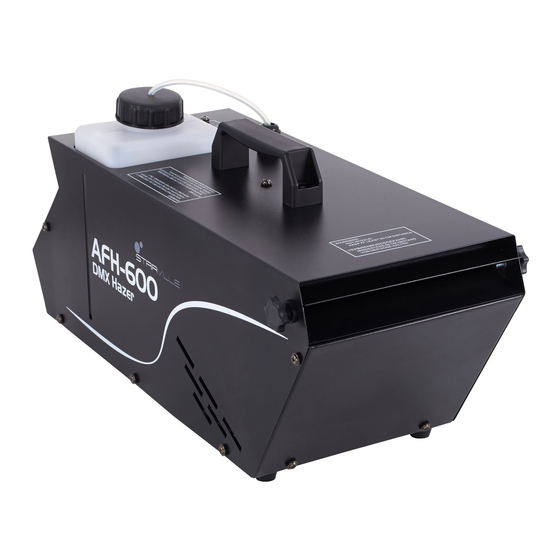

- Page 1 AFH-600 Hazer...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 14.08.2023, ID: 306309 (V4)
-
Page 3: Table Of Contents
1.1 Symbols and signal words....................... 5 Safety instructions............................. 8 Features............................... 12 Installation..............................13 Starting up..............................14 Connections and controls........................16 Operation..............................20 Technical specifications........................25 Plug and connection assignments....................27 Troubleshooting............................28 Cleaning............................... 29 Protecting the environment......................31 AFH-600 Hazer... - Page 4 AFH-600 Hazer...
-
Page 5: General Information
Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. AFH-600 Hazer... - Page 6 This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – flammable substances. AFH-600 Hazer...
- Page 7 General information Warning signs Type of danger Warning - slip hazard. Warning – harmful or irritating substances. Warning – danger zone. AFH-600 Hazer...
-
Page 8: Safety Instructions
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device when covers, safety equipment or optical components are missing or damaged. AFH-600 Hazer... - Page 9 Do not use any fog fluids other than the ones approved for the device. Any claims for compensation for damages caused by using non-approved fluids are excluded. Do not let the device produce fog in poorly ventilated areas. Do not expose people with health problems (e.g. allergy-related respiratory symptoms, asthma) to artificial fog. AFH-600 Hazer...
- Page 10 Using fuses of a different type than compatible with the device may cause a fire and seriously damage the device. Only use fuses of the same type. Observe the labelling on the device casing and the information in the "Technical data” chapter. AFH-600 Hazer...
- Page 11 During operation, ensure that the visibility in the room does not fall below 2 m so that everyone in the room can still orient themselves safely. The fog or haze generated by the device may trigger smoke alarms. AFH-600 Hazer...
-
Page 12: Features
Features Features This hazer is suitable to be used in clubs, bars, discotheques and on stages. Special features of the device: Compact design Suitable for mobile use Large liquid container for the fog liquid AFH-600 Hazer... -
Page 13: Installation
The device requires 20 cm clearance at the sides and above. Place the unit on a flat, stable sur‐ face. The device must never be operated in a more than 15° tilted position. AFH-600 Hazer... -
Page 14: Starting Up
Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). AFH-600 Hazer... - Page 15 Connect the DMX output of the master device to the DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so on. AFH-600 Hazer...
-
Page 16: Connections And Controls
Connections and controls Connections and controls Front ö AFH-600 Hazer... - Page 17 Connections and controls 1 Haze nozzle 2 Fog fluid container with screw-cap 3 Fog fluid feed line from fluid container to vaporiser 4 Carrying handle AFH-600 Hazer...
- Page 18 Connections and controls Back & ä FUNC ENTER POWER FUSE AFH-600 Hazer...
- Page 19 | Decreases the displayed value by one. button | Increases the displayed value by one. [ENTER] button | Selects an option of the respective operating mode. 9 [ON / OFF] | Mains switch. Turns the device on and off. AFH-600 Hazer...
-
Page 20: Operation
Open the screw-cap of the liquid container and fill in the fog fluid. Make sure that no fog fluid is spilled or gets into the device. The easiest way is using a funnel. The container capacity is 2.3 litres. Screw the cap firmly back on. AFH-600 Hazer... - Page 21 The device supports the following operating modes that you can select with the buttons on the device: Manual control Master / Slave mode DMX control The haze volume that you have set either directly on the device, on the ‘Master‘ or with your DMX controller is uniformly ejected In all modes. AFH-600 Hazer...
- Page 22 ‘NASt’ : The device operates as the “Master” and controls other devices that follow as a “Slave”. ‘SLAu’ : The device works as a “Slave” and follows the exact operation of the “Master” to which it is connected. Press [ENTER] to confirm and to start operation in “Master / Slave” mode. AFH-600 Hazer...
- Page 23 Turning the device off Switch off the device using the main switch. Transport the device only when it has cooled down completely. To avoid leaking fog fluid during transport, you should transport the device only with an empty fluid container. AFH-600 Hazer...
- Page 24 Operation Menu overview Addr SLNd F001 NASt F100 SLAu AFH-600 Hazer...
-
Page 25: Technical Specifications
650 W Supply voltage 230 V 50 Hz Fuse 5 mm × 20 mm, 4 A, 250 V, fast blow International Protection Rating IP20 Dimensions (W × H × D) 290 mm × 265 mm × 450 mm AFH-600 Hazer... - Page 26 Technical specifications Weight 5.5 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 50%…55%, non-condensing AFH-600 Hazer...
-
Page 27: Plug And Connection Assignments
The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) AFH-600 Hazer... -
Page 28: Troubleshooting
3. Check to see if the DMX cables run near or alongside to high voltage cables that may cause damage or interference to DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. AFH-600 Hazer... -
Page 29: Cleaning
As soon as the required operating temperature is reached, the display shows ‘read’ . The device is now operational. Use the arrow keys to set the value ‘F100’ for maximum haze output and let the device produce haze for about 20 seconds. AFH-600 Hazer... - Page 30 Cleaning Insert the suction hose of the haze machine back into the hazer fluid container and let the device again produce haze for about 20 seconds. This will rinse the lines. ð The cleaning is completed. AFH-600 Hazer...
-
Page 31: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. AFH-600 Hazer... - Page 32 Notes AFH-600 Hazer...
- Page 33 Notes AFH-600 Hazer...
- Page 34 Notes AFH-600 Hazer...
- Page 36 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
