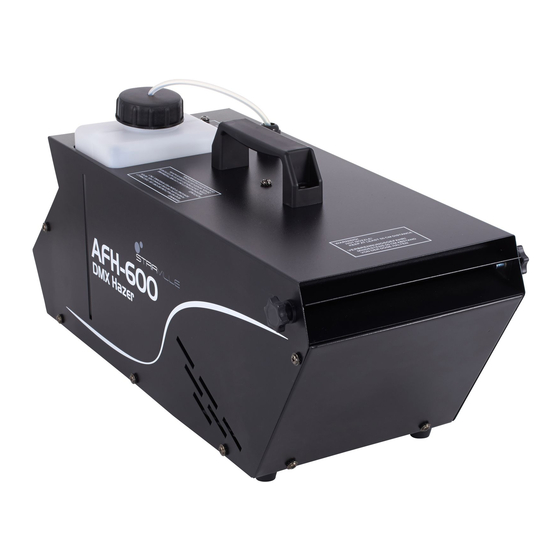

- Page 1 AFH-600 Hazer...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 23.10.2024, ID: 306309 (V5)
-
Page 3: Table Of Contents
1.1 Symbols and signal words....................... 5 Safety instructions............................. 8 Features............................... 12 Installation..............................13 Starting up..............................14 Connections and controls........................16 Operating..............................18 Technical specifications........................24 Plug and connection assignments....................26 Troubleshooting............................27 Cleaning............................... 28 Protecting the environment......................30 AFH-600 Hazer... - Page 4 AFH-600 Hazer...
-
Page 5: General Information
Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. AFH-600 Hazer... - Page 6 This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – flammable substances. AFH-600 Hazer...
- Page 7 General information Warning signs Type of danger Warning - slip hazard. Warning – harmful or irritating substances. Warning – danger zone. AFH-600 Hazer...
-
Page 8: Safety Instructions
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device when covers, safety equipment or optical components are missing or damaged. AFH-600 Hazer... - Page 9 Never ingest hazer fluid and avoid contact with eyes. In case of accidental ingestion of or eye contact with hazer fluid: Do not induce vomiting if swallowed. Thoroughly rinse the eyes with water upon contact. Get immediate medical attention. AFH-600 Hazer...
- Page 10 Never subject the device to liquids or moisture. Never move the device to another location while it is in operation. In environments with increased dirt levels (for example due to dust, smoke, nicotine or mist): Have the device cleaned by qualified specialists at reg‐ ular intervals to prevent damage due to overheating and other malfunctions. AFH-600 Hazer...
- Page 11 The plasticiser contained in the rubber feet of this product may react with the coating of the floor and cause permanent dark stains after some time. If necessary, use a suitable mat or felt slide to prevent direct contact between the product’s rubber feet and the floor. AFH-600 Hazer...
-
Page 12: Features
Suitable for mobile use High-performance hazer with short heating time and continuous haze output Integrated DMX512 interface allows control via any commercially available DMX control Large fluid container for PHF Pro Haze Fluid (item no. 260572, not included) AFH-600 Hazer... -
Page 13: Installation
Place the device on a stable, fire-proof basis that is at least twice as large as the device. The device requires 20 cm clearance at the sides and above. The unit should be installed horizon‐ tally, a maximum deviation of 15° is allowed. AFH-600 Hazer... -
Page 14: Starting Up
If the DMX connections are wired incorrectly, this can cause errors during the data transfer. Do not connect the DMX input and output to audio devices, e.g. mixers or ampli‐ fiers. Use special DMX cables for the wiring instead of normal microphone cables. AFH-600 Hazer... - Page 15 DMX output of the master unit to the DMX input of the first slave unit. Then connect the DMX output of the first slave unit to the DMX input of the second slave unit and so on. AFH-600 Hazer...
-
Page 16: Connections And Controls
Connections and controls Connections and controls ö & FUNC ENTER POWER FUSE AFH-600 Hazer... - Page 17 8 [ON/OFF] | Mains switch. Turns the device on and off. 9 Display and control panel [FUNC] | Opens the main menu. | Decreases the displayed value by one. | Increases the displayed value by one. [ENTER] | Selects an option of the respective operating mode. AFH-600 Hazer...
-
Page 18: Operating
Fill in the hazer fluid. Make sure that no hazer fluid is spilled or gets into the device. The easiest way to do so is to use a funnel. The container capacity is 2.3 litres. Screw the cap on tightly. AFH-600 Hazer... - Page 19 When operating the device, always ensure that there is sufficient hazer fluid in the fluid container to avoid running it without fluid. During operation, ensure that visibility in the room does not drop below 2 m, to ensure that people can find their way safely around the space. AFH-600 Hazer...
- Page 20 When the display shows the desired value, press [ENTER]. To return to the main menu without any changes, press [FUNC] or wait a minute. ð All previous settings are retained even when you disconnect the device from the power grid. AFH-600 Hazer...
- Page 21 Use the arrow keys to set the desired amount of haze between ‘F001’ (no fog output) and ‘F100’ (maximum fog output). Press [ENTER]. To interrupt the haze output, press [ENTER]. ð The display shows ‘read’ . To restart the haze output, press [ENTER]. ð The display shows the last set value. AFH-600 Hazer...
- Page 22 Set the number of the first DMX channel to be used by the device (DMX address). Use the arrow buttons to select a value between ‘1’ and ‘512’ . Press [ENTER]. ð Operation starts in “DMX” mode. Make sure the number matches the configuration of your DMX controller. AFH-600 Hazer...
- Page 23 Switch off the device using the main switch. Do not transport the device before it has cooled down completely. To avoid leaking hazer fluid during transport, you should transport the device only with an empty fluid container. Menu overview Addr SLNd F001 NASt F100 SLAu AFH-600 Hazer...
-
Page 24: Technical Specifications
650 W Supply voltage 230 V 50 Hz Fuse 5 mm × 20 mm, 4 A, 250 V, fast blow International Protection Rating IP20 Dimensions (W × H × D) 290 mm × 265 mm × 450 mm AFH-600 Hazer... - Page 25 Technical specifications Weight 5.5 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) AFH-600 Hazer...
-
Page 26: Plug And Connection Assignments
The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) AFH-600 Hazer... -
Page 27: Troubleshooting
3. Check to see if the DMX cables run near or alongside to high voltage cables that may cause damage or interference to DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. AFH-600 Hazer... -
Page 28: Cleaning
Wait until the device has reached the required operating temperature. ð The display shows ‘read’ . The device is now operational. Use the arrow keys to set the value ‘F100’ for maximum haze output and let the device produce haze for about 20 seconds. AFH-600 Hazer... - Page 29 Cleaning Insert the suction hose of the hazer back into the fog fluid container and let the device produce haze again for about 20 seconds. This will rinse the lines. ð Cleaning is complete. AFH-600 Hazer...
-
Page 30: Protecting The Environment
Do not dispose of these materials with your normal household waste, but make sure that they are collected for recycling. Please follow the instructions and markings on the packaging. Observe the disposal note regarding documentation in France. AFH-600 Hazer... - Page 31 Also note that waste avoidance is a valuable contribution to environmental protection. Repairing a device or passing it on to another user is an ecologically valuable alternative to disposal. If your old device contains personal data, delete those data before disposing of it. AFH-600 Hazer...
- Page 32 Notes AFH-600 Hazer...
- Page 33 Notes AFH-600 Hazer...
- Page 34 Notes AFH-600 Hazer...
- Page 36 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
