ASSEMBLY
INSTRUCTIONS

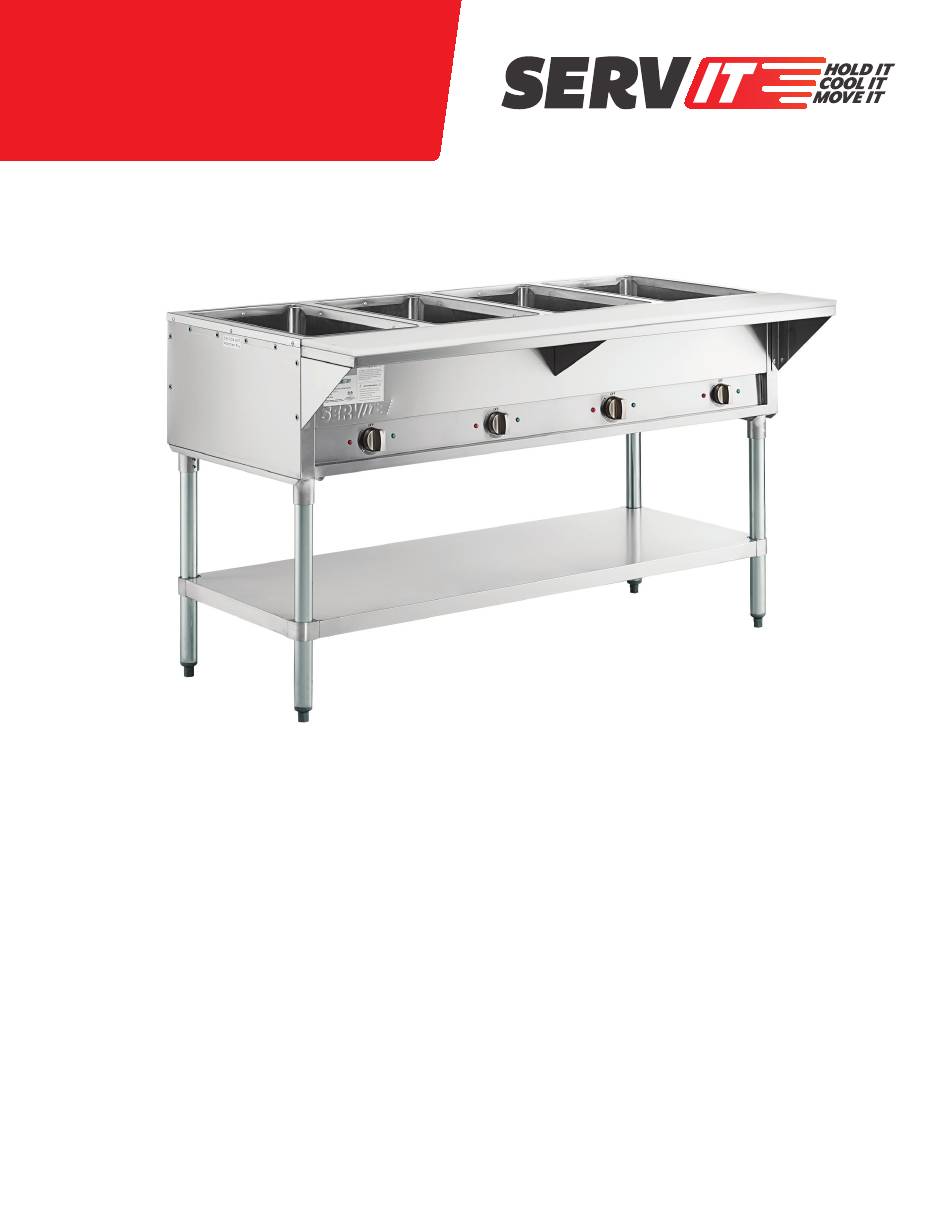

ELECTRIC STEAM TABLES
ELECTRIC STEAM TABLES
PLEASE READ THE ASSEMBLY INSTRUCTIONS THOROUGHLY FOR PROPER SETUP.
TABLE OF CONTENTS
Open Base Steam Table . . . . . . . . . . . . . . . . . . . . . . . . . 2
Partially Enclosed Steam Table . . . . . . . . . . . . . . . . . . . 3
Fully Enclosed Steam Table . . . . . . . . . . . . . . . . . . . . . . 5
TM
423EST4WS500
REVISED 03/2024
Advertisement
Related Manuals for SERVIT 423EST2WO
Summary of Contents for SERVIT 423EST2WO
- Page 1 ASSEMBLY INSTRUCTIONS ELECTRIC STEAM TABLES 423EST4WS500 ELECTRIC STEAM TABLES TABLE OF CONTENTS Open Base Steam Table . . . . . . . . . . . . . . . . . . . . . . . . . 2 Partially Enclosed Steam Table .
- Page 2 ASSEMBLY INSTRUCTIONS OPEN BASE STEAM TABLE MODELS: 423EST2WO, 423EST3WO, 423EST4WO500, 423EST4WO750, 423EST5WO, 423EST2WS, 423EST3WS, 423EST4WS500, 423EST4WS750, 423EST5WS PARTS NOTE: 2 and 3 well models do not have a middle support (E) or the three screws used to attach it. Steam Table (1)
- Page 3 ASSEMBLY INSTRUCTIONS PARTIALLY ENCLOSED STEAM TABLE MODELS: 423EST2WOPB, 423EST2WSPB, 423EST3WOPB, 423EST3WSPB, 423EST4WOPBA, 423EST4WOPBH, 423EST4WSPBA, 423EST4SPBH, 423EST5WOPB, 423EST5WSPB PARTS NOTE: 2 and 3 well models do not have a middle support (E) or the three screws used to attach it. Steam Table (1) Right Support for Cutting Board Shelf (1) Back Apron (1)
- Page 4 ASSEMBLY INSTRUCTIONS PARTIALLY ENCLOSED STEAM TABLE STEP 4 STEP 5 Connect the steam table (A) to the base of the unit using Attach the left, middle, and right shelf supports (C, D, E) to the provided screws (N). the front of the unit using the provided screws (N). STEP 6 Attach the cutting board shelf (G) to the supports and screw into place using the provided screws (N).
- Page 5 ASSEMBLY INSTRUCTIONS FULLY ENCLOSED STEAM TABLE MODELS: 423EST2WOFB, 423EST3WOFB, 423EST4WOFBA, 423EST4WOFBH, 423EST5WOFB, 423EST2WSFB, 423EST3WSFB, 423EST4WSFBA, 423EST4WSFBH, 423EST5WSFB PARTS NOTE: 2 and 3 well models do not have a middle support (E) or the three screws used to attach it. Steam Table (1) Right Support for Cutting Board Shelf (1) Back Apron (1)
- Page 6 ASSEMBLY INSTRUCTIONS FULLY ENCLOSED STEAM TABLE STEP 5 STEP 6 Attach the cutting board shelf (G) to the supports and Attach the right door (L) to the by securing it into the screw into place using the provided screws (N). Align the back top track then setting it on the back bottom track holes on the poly cutting board (F) with the pegs on the as shown below.
