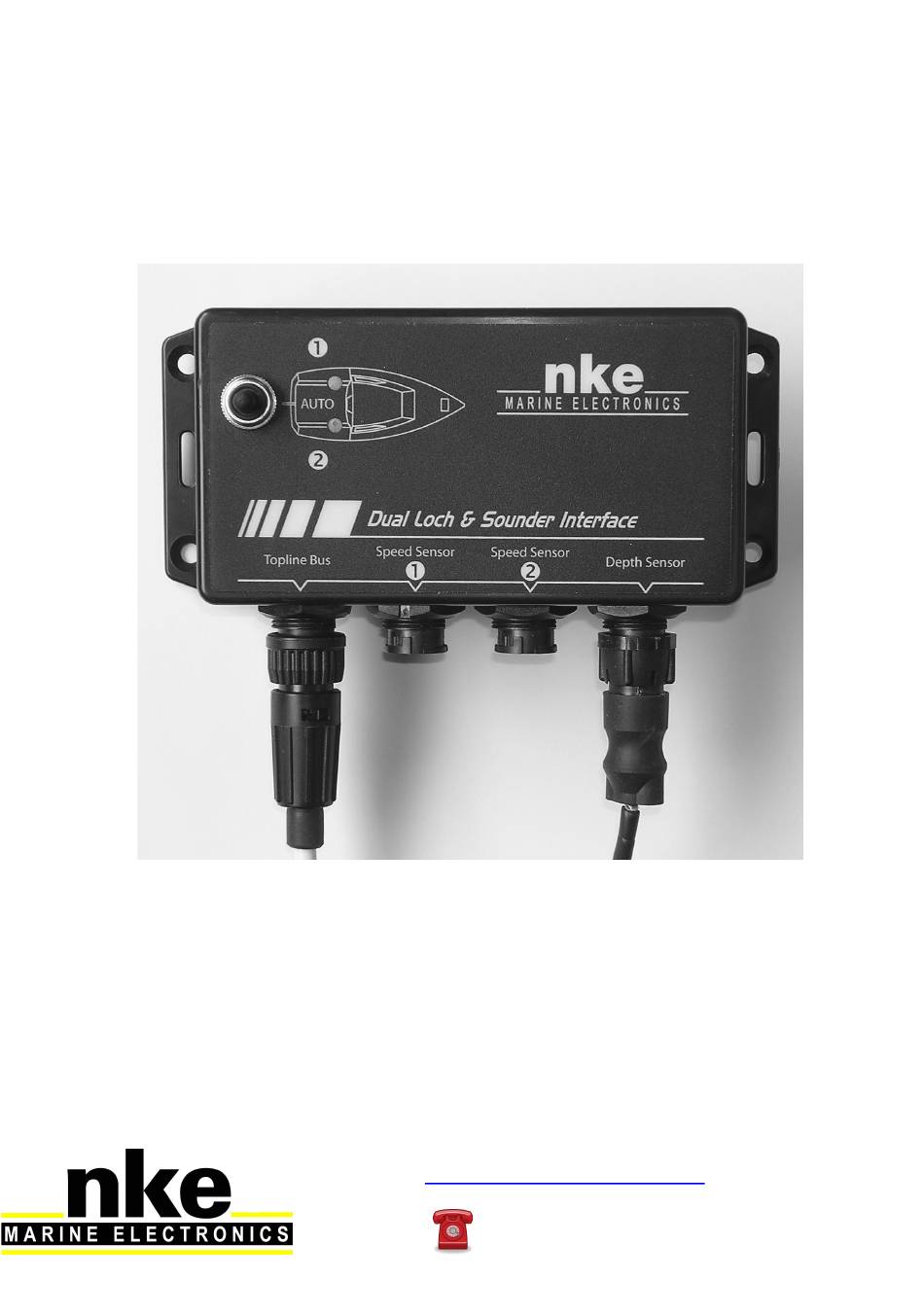

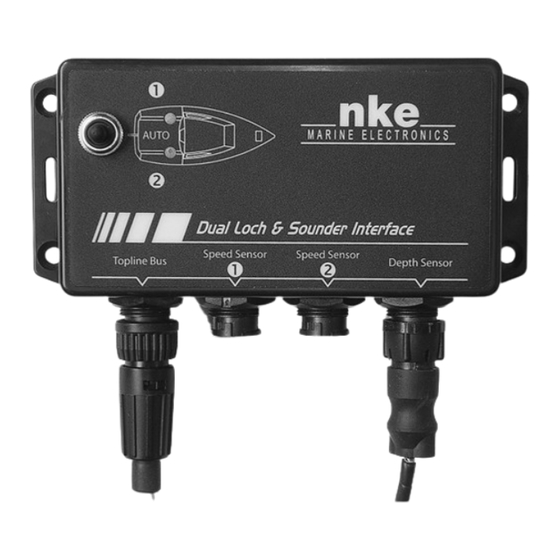

- Page 1 Dual loch sounder interface Reference product : 90-60-451 INSTALLATION GUIDE REV A Zi de Kerandré – Rue Gutemberg – 56700 – HENNEBONT – FRANCE www.nke-marine-electronics.com +33 297 365 685...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PRESENTATION ........................3 TECHNICAL SPECIFICATIONS ................... 4 DIAGNOSTIC FOR 1 LEVEL TROUBLESHOOTING............5 INSTALLATION ........................6 4.1 L ......................6 IST OF ACCESSORIES 4.2 I ....................6 NSTALLATION PRECAUTIONS 4.3 I ..........6 NSTALLATION OF THE DUAL LOCH SOUNDER INTERFACE HOUSING 4.4 C .................. -
Page 3: Presentation
SPEEDO, it is necessary to connect a sensor Starboard and a sensor Port. It is forbidden to connect two identical sensors 1.1 Architecture of the installation TOPLINE display Interface Dual loch Sondeur Interface Dual loch Sondeur depth dual loch interface 90-60-451 90-60-451 90-60-451 TOPLINE bus 20-61-001 GND tresse DATA black 12VDC white Boîte de connexion... - Page 4 Switch on position Auto : the speedometer, port side or starboard, is selected according to the apparent wind angle side. Note that : the mode Auto is running only if an nke masthead unit is connected to the TOPLINE BUS of your installation.
-
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS Power supply : 10 to 16VDC Consumption : 60mA Tightness :IP54 Weight : 160 g Operating temperature : -10°C to +50°C Storage temperature : -20°C to +60°C DIAGNOSTIC FOR 1 LEVEL TROUBLESHOOTING. This chapter can help you rapidly resolve minor problems which do not require the intervention of a specialist. -
Page 6: Installation
INSTALLATION 4.1 List of accessories 15 meter bus cable fitted with a connector : 90-60-460 TOPLINE Terminal box : 90-60-121 Cable adapter for old version of depth-finder sensor 90-60-453. Cable adapter for old version of vaned rotor log sensor : 90-60-454 TOPLINE bus connector : 90-60-465. -
Page 7: Connection To The Topline Bus
Make the bus cable run from the depth dual log interface to the TOPLINE terminal box of your installation. Connect the bus cable inside the terminal box. VITES 1.20 SURF Interface Dual loch depth 90-60-451 supply 12Vdc DATA black 12VDC white connecting box 90-60-121 Figure 3 : connecting to TOPLINE bus If you reduce the length of the bus cable 90-60-460, strip and galvanise the wires before connecting them inside the terminal box. - Page 8 NOTES _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ _________________________________________________________________ ______________________________________________________ Dual_Loch_Sondeur_Interface_um_EN_18_21...
