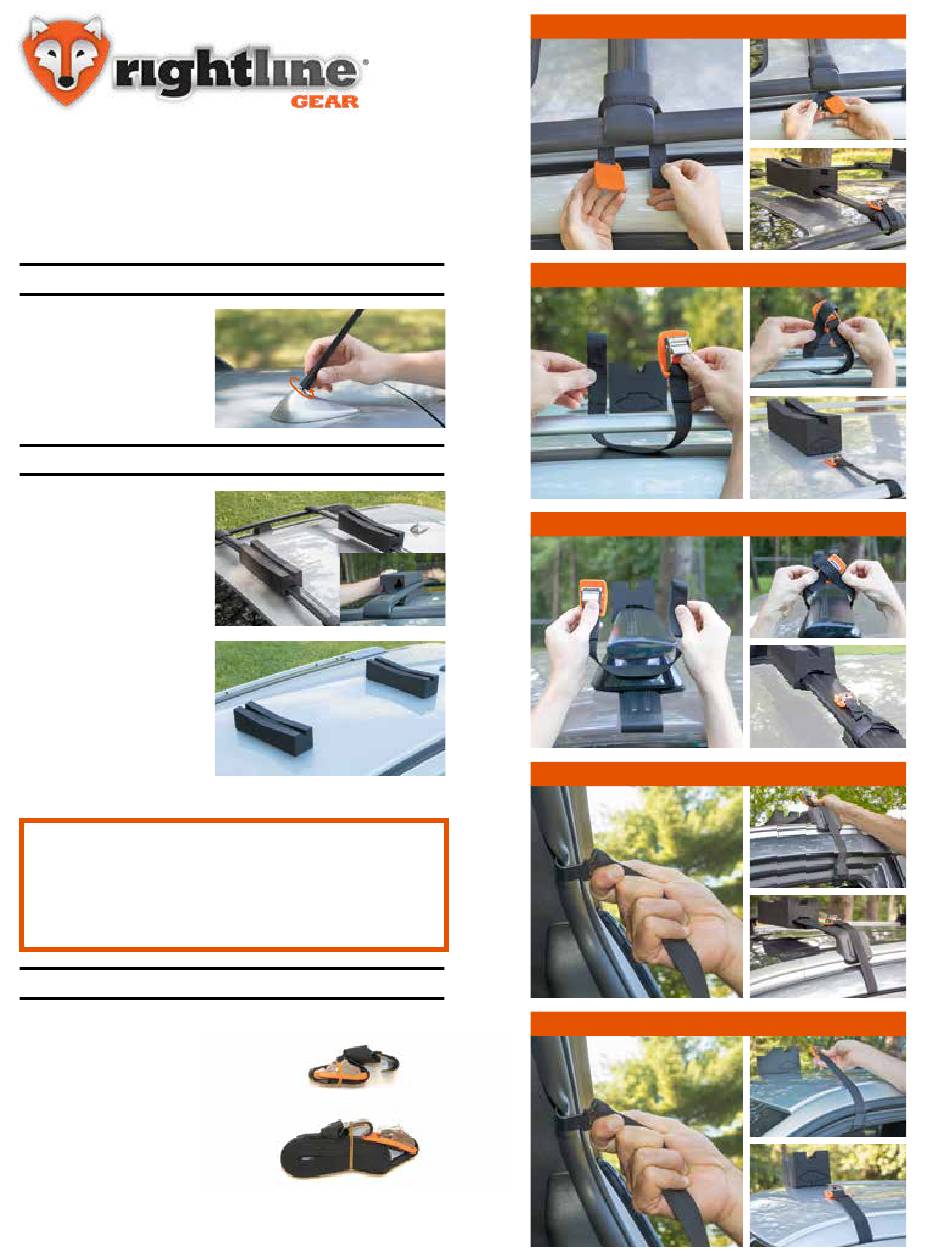

Rightline Gear 100K10 Manual

Foam Block Kayak Carrier
The correct attachment of this product is critical and
beyond the control of Rightline Gear. The safe use
and long life of this product depends entirely on
your good judgment and following these directions.
Prepare The Vehicle
1-Clean the vehicle's
roof of all dirt and debris.
2-If your vehicle has an
antenna in the center
of its roof, temporarily
remove it (Fig 1).
Place The Foam Blocks
Vehicles WITH Cross
Bars – Remove the roof
rack cutouts from the
(2) Foam Blocks and
push the blocks over the
center of the cross bars
(Fig 2).
Vehicles WITHOUT Cross
Bars – Keep the roof
rack cutouts in the (2)
Foam Blocks and place
the blocks on the
center of the vehicle's
roof. Line up the Foam
Blocks with the vehicle's
doors (Fig 3).
NOTE: IF A 4-DOOR VEHICLE, (1) FOAM BLOCK WILL
LINE UP WITH THE FRONT DOORS AND (1) FOAM
BLOCK WILL LINE UP WITH THE REAR DOORS. IF A
2-DOOR VEHICLE, BOTH FOAM BLOCKS WILL LINE
UP WITH THE FRONT DOORS.
Attach The Dual Lock Straps
1-Identify the short strap
piece and long strap
piece that make up each
of the (2) Dual Lock
Straps (Fig 4).
2-Choose the attachment
points for your vehicle, and
attach the short and long
strap piece of each of
the Dual Lock Straps.
100K10
Fig 1
Fig 2
Fig 3
Short Strap Piece
Long Strap Piece
Fig 4
Factory Cross Bars, Space Under Side Rails
1
No Cross Bars, Space Under Side Rails
1
Aftermarket Cross Bars
1
Factory Cross Bars, No Space Under Side Rails
1
1
WITHOUT Roof Rack
1
1
2
3
2
3
2
3
2
3
2
3
