Rightline Gear 100J72 Installation Manual

Trunk storage bag for jeep wrangler

Download this manual

Installation Time: 1 Hour

Tools Required:

 Box Cutter/Knife

Installation Instructions:

1. Carefully open the package using a box cutter or knife (Figure A) and ensure the bag, inserts and straps are

included and undamaged.

2. Slide the hard-plastic insert (included) into the top sleeve (Figure B).

Rightline Gear Trunk Storage Bag

Installation Guide for Jeep Wrangler '07-'16 2-Door JK

Figure A

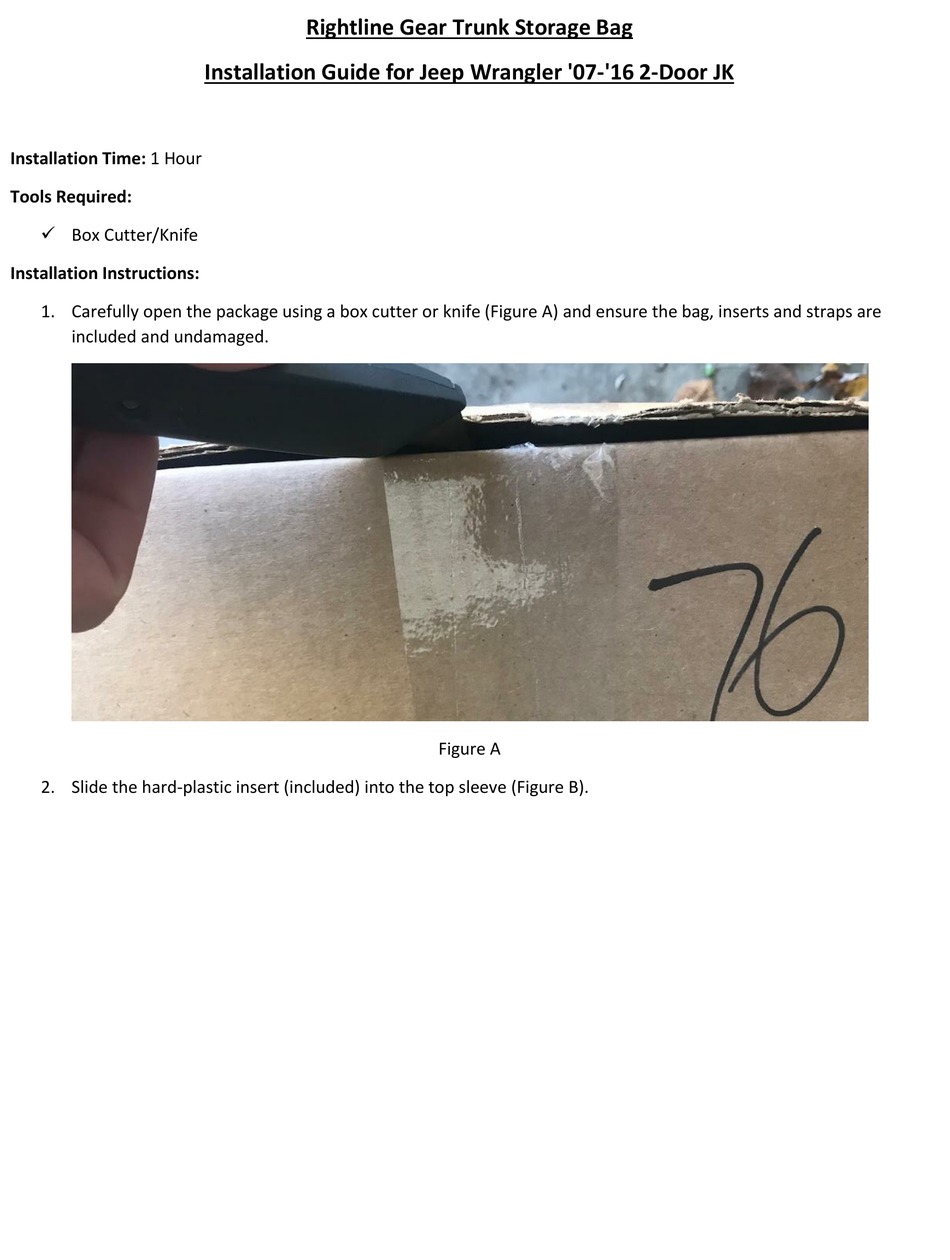

Page 1 Rightline Gear Trunk Storage Bag Installation Guide for Jeep Wrangler '07-'16 2-Door JK Installation Time: 1 Hour Tools Required:  Box Cutter/Knife Installation Instructions: 1. Carefully open the package using a box cutter or knife (Figure A) and ensure the bag, inserts and straps are included and undamaged.
Page 2 Figure B 3. Secure the two hard plastic shelves (included) onto the horizontal dividers by aligning the Velcro strips (Figure Figure C 4. Close the zippers (Figure D) and reconnect Velcro.
Page 3 Figure D 5. Place the storage bag behind the rear seat (Figure E). Figure E...
Page 4 6. Run the two rear clasps through the matching attachment rings on the bottom of the rear seat (Figure F). Figure F 7. Run the straps through the clasp to hold in place (Figure G). Figure G 8. Run the top left and top right straps around the rear vertical roll bars above the seat belt holders on each side (do not twist straps) (Figure H).
Page 5 Figure H 9. Buckle the straps in place (Figure I). Figure I 10. Run the two shorter inner straps around the headrests on each side (do not twist straps) (Figure J).
Page 6 Figure J 11. Buckle the straps in place (Figure K).
Page 7 Figure K 12. Tighten all straps down. Optional: Fill the bag compartments completely to help displace the wrinkles created by the shipping package.
Page 8 Before After Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 11/10/2017...
