Symmons Dia 352SH Operation & Maintenance Manual

352SH, 352SH-3
Dia Showerhead Series
™
Operation & Maintenance Manual
Model Numbers
352SH
352SH-3
Modifications
-1.5 1.5 gpm (5.7 L/min) flow restrictor
-2.0 2.0 gpm (7.6 L/min) flow restrictor
-STN Satin nickel finish
Note: Append appropriate -suffix to model number.
Dimensions
352SH
A A
352SH-3
C C
Note: Dimensions are subject to change without notice.
Symmons Industries, Inc.
1
©2014 Symmons Industries, Inc.

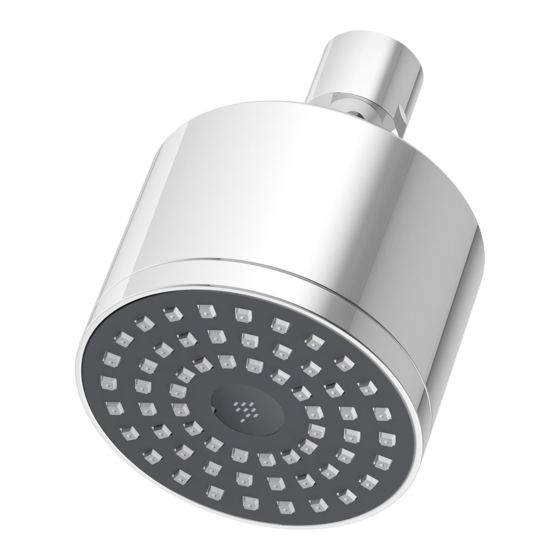

Dia 3" 1 Mode Showerhead
Dia 3" 3 Mode Showerhead
B B
D D
■
31 Brooks Drive
■
www.symmons.com
Specifications
3" 1 mode showerhead (352SH) and 3" 3 mode
showerhead (352SH-3) inlcude standard 2.5 gpm
(9.5 L/min) flow restrictor. Components made from metal
and plastic materials plated in standard polished chrome
finish.
Compliance
-ASME A112.18.1/CSA B125.1
-WaterSense (1.5 & 2.0 gpm)
Warranty
Limited Lifetime - to the original end purchaser in
consumer installations.
5 Years - for commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
A
B
C
D
Required for Installation
Teflon Tape
■ ■
Braintree, MA 02184 (800)796-6667
■
gethelp@symmons.com
Certi ed by
IAPMO R&T
Measurements
4 1/4", 108 mm
4 1/8", 105 mm
4 3/4", 121 mm
4 1/2", 114 mm
■
Fax: (800)961-9621
■
ZV-3013 REV 0 01/15/2014
c
