352SH, 352SH-3
Dia
Showerhead Series
™
Operation & Maintenance Manual
Model Number
352SH
Dia 3" 1 Mode Showerhead

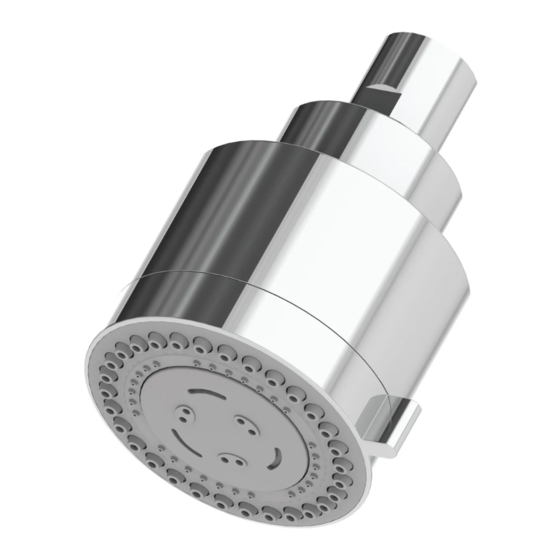

352SH-3
Dia 3" 3 Mode Showerhead
Modifications
-1.5
1.5 gpm (5.7 L/min) flow restrictor
-2.0
2.0 gpm (7.6 L/min) flow restrictor
-STN
Satin Nickel finish
Note: Append appropriate -suffix to model number.
Dimensions
352SH
352SH-3
B B
A A
D D
C C
Specification
1 mode showerhead (352SH) and 3 mode
showerhead (352SH-3) include standard 2.5 gpm
(9.5 L/min) flow restrictors. Components made from
metal and nonmetallic materials plated in standard
polished chrome finish.
Compliance
-ASME A112.18.1; CSA B125.1
-WaterSense: 2.0 gpm (7.6 L/min) Max.
1.5 gpm (5.7 L/min) Min.
Warranty
Limited Lifetime - to the original end purchaser in
consumer installations.
5 Years - for commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
A
B
C
D
Tools Required for Installation
Plumber tape
Notes: Dimensions subject to change without notice.
Certi ed by
IAPMO R&T
Measurements
4 1/4", 108 mm
4 1/8", 105 mm
4 3/4", 121 mm
4 1/2", 114 mm
c
