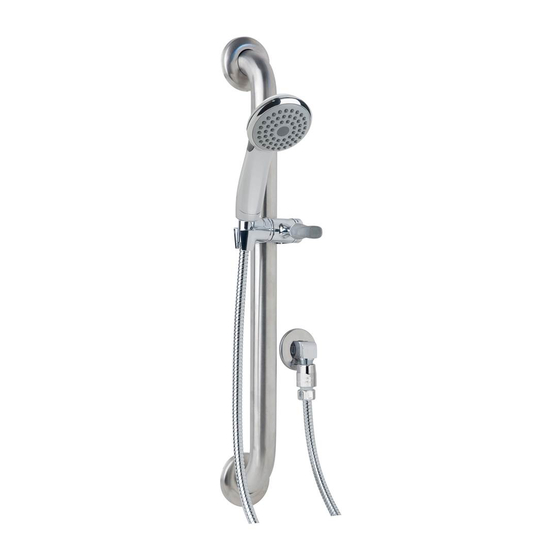

Symmons T724 Series Installation Manual

Wall Mounted Slide/Grab Bar &
ADA Hand Shower with non-positive shut-off
T724, T736, T748 Series
Installation Guide
Model Numbers
T724
24 inch slide/grab bar with polished
chrome or satin nickel ADA hand shower
T736
36 inch slide/grab bar with polished
chrome or satin nickel ADA hand shower
T748
48 inch slide/grab bar with polished
chrome or satin nickel ADA hand shower
Visual Guide
Step 1 Mount grab bar
six (6) #10 x 2"
(51 mm) wood
screws included
Grab Bar must be
secured with at least
two (2) of three (3)
screws at each end.
For California Residents
WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Tools and Materials
5/32" drill bit
1/4" carbide
tip drill bit for
wall tiles
Compliance
-ASME A112.18.1/CSA B125.1
-WaterSense 1.5 gpm and 2.0 gpm
Wall Mounted Slide/Grab Bar & Hand Shower
Step 2
drill hole
5/32 inch
escutcheon
bottom side
Adjust for
ease of
movement
1 2 3 4
Certi ed by
CSA Group
Attach slider assembly
at edge
SLIDE
LOCK
SLIDE

Need Help?
Symmons customer service:
Phone: (800) 796-6667
gethelp@symmons.com
Mon - Fri 7:30 am - 7:00 pm EST

www.symmons.com/service
• Technical help
• Product information
• Warranty policy
Step 3 Install hand shower
wall
elbow
step
washer
vacuum
breaker
washer
hose
