- Page 1 Installation and Operating instructions for Control Cabinet PC C6210 Version: 1.2 Date: 2007-03-07...
-
Page 3: Table Of Contents
Cleaning the Industrial PC Replacing the battery on the motherboard Servicing Shutting down Disposal Troubleshooting Fault correction Service and Support Beckhoff's branch offices and representatives Beckhoff headquarters Beckhoff Support Beckhoff Service Assembly dimensions Appendix Technical data Approvals FCC: Federal Communications Commission... -
Page 4: General Instructions
© This documentation is copyrighted. Any reproduction or third party use of this publication, whether in whole or in part, without the written permission of Beckhoff Automation GmbH, is forbidden. Description of safety symbols The following safety symbols are used in this operating manual. They are intended to alert the reader to the associated safety instructions. -
Page 5: Basic Safety Measures
General instructions Basic safety measures Only switch the PC off after Before the Industrial PC is switched off, software that is running must closing the software be properly closed. Otherwise it is possible that data on the hard disk is lost. Please read the section on Switching the Industrial PC on and off. -
Page 6: Operator's Obligation To Exercise Diligence
General instructions Operator's obligation to exercise diligence The operator must ensure that • the Industrial PC is only used for its intended use (see also Product Description). • the Industrial PC is in a sound condition and in working order during operation. -
Page 7: Product Description

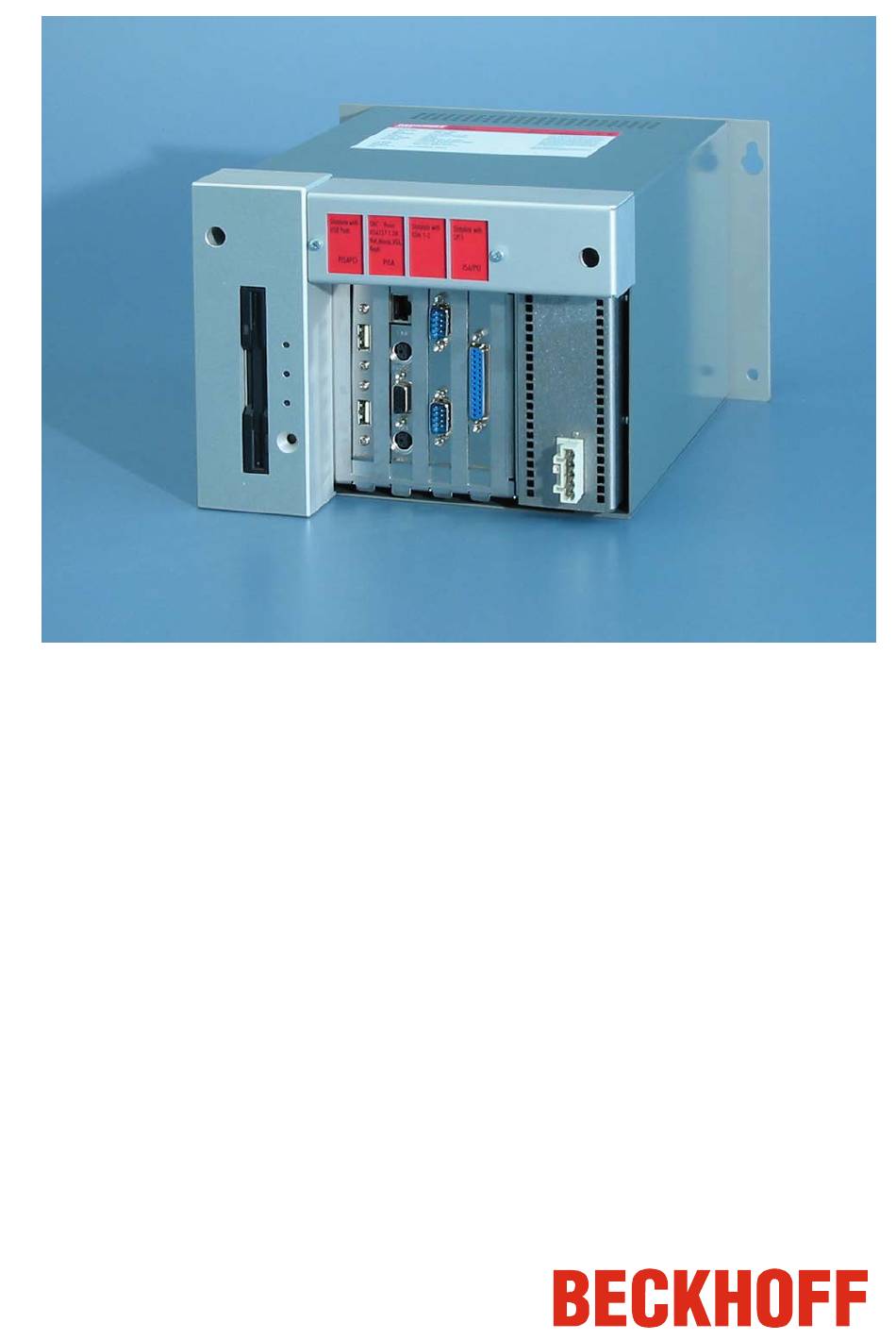

Product Description Product Description Appropriate Use The C6210 Industrial PC is designed for mounting in control cabinets in machine and plant engineering applications. Structure Front view of the C6210 Opening the housing To open the PC housing, initially rotate the two fast closing screws (see photograph above) by 90 degrees in either direction using a screwdriver. - Page 8 Product Description View of the open PC Under the housing cover (1) is a 4-slot computer core with an all-in-one plug-in card motherboard and power supply unit (2). The connections are located at the front of the housing (3). C6210...
-
Page 9: Interfaces
Product Description Interfaces Interfaces to the C6210 Industrial PC USB interfaces USB1 – USB2 Both USB interfaces (1) and (2) are used to connect peripheral devices with USB connections. PS/2 connections PS/2 The upper PS/2 connector (4) allows a PS/6 mouse to be used, while a PC keyboard can be connected to the lower PS/2 connector (6). -
Page 10: Installation Instructions
4. Please keep the associated paperwork. It contains important information for handling the unit. 5. Check the contents for visible shipping damage. 6. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service. C6210... -
Page 11: Installation Of The Pc In The Control Cabinet
Installation Instructions Installation of the PC in the control cabinet The C6210 Industrial PCs are designed for mounting in control cabinets for machine and plant engineering applications. The ambient conditions specified for operation must be observed (see chapter Technical data). Preparation of the control Four holes for the fixing bolts have to be provided in the control cabinet cabinet... -
Page 12: Power Supply Connection
Installation Instructions Power Supply Connection The 5-pin CAGE CLAMP plug connector and mounting flange illustrated is located on the PC housing in order to connect the power supply. Socket at the PC housing Technical data Connecting socket Number of contacts Contact spacing 5 mm Minimum conductor cross-section... -
Page 13: Fitting The Power Supply Cable
Installation Instructions Fitting the Power Supply Cable Coding pieces The connectors are coded differently at the factory, using snap-on coding pieces, according to the power supply unit that has been fitted. Differently coded plug connectors Coding for the 24 V power supply Coding for the 100-240 V unit... -
Page 14: Pin Assignment And Cable Requirements
Installation Instructions Pin assignment and cable requirements Pin assignment There is an adhesive label with the pin assignments on the top of the female plug connector. The minimum permitted conductive cross- section is 1.5 mm², fused for 10 A (AWG 16). Industrial PCs with 100-240 V , 50-60 Hz power supply unit Pin assignment for the... -
Page 15: Connecting Devices
Installation Instructions Connecting devices The power supply plug must be withdrawn! Warning Please read the documentation for the external devices prior to connecting them. During thunderstorms, plug connector must neither be inserted nor removed. When disconnecting a plug connector, always handle it at the plug. Do not pull the cable! Connecting cables The connections are located on the front of the Industrial PC, and are... -
Page 16: Operating Instructions
Operating Instructions Operating Instructions Please also refer to chapter General instructions. Switching the Industrial PC on and off Switch on The Industrial PC does not have its own mains switch. The Industrial PC will start when the equipment is switched on, or when it is connected to the power supply. -
Page 17: Maintenance
Operating Instructions Maintenance Please also refer to chapter General instructions. Cleaning the Industrial PC Switch off the Industrial PC and all connected devices, and disconnect the Industrial PC from the power supply. Danger The Industrial PC can be cleaned with a soft, damp cloth. Do not use any aggressive cleaning materials, thinners, scouring material or hard objects that could cause scratches. -
Page 18: Troubleshooting
Nothing happens after the Industrial No power supply to the Industrial Check power supply cable. PC has been switched on Other cause. Call Beckhoff Service. The Industrial PC does not boot Floppy disk in drive. Remove floppy disk and fully press any key. -
Page 19: Service And Support
Fax: +49(0)5246/963-198 e-mail: info@beckhoff.com Beckhoff Support Support offers you comprehensive technical assistance, helping you no only with the application of individual Beckhoff products, but also with other, wide-ranging services: • world-wide support • design, programming and commissioning of complex automation systems •... -
Page 20: Assembly Dimensions
Assembly dimensions Assembly dimensions The following page shows diagrams of the Industrial PC, with dimensions in mm. The assembly of the unit must take place with the orientation diagrammed here. Warning Industrial PC C6210 Front View Side View Top View C6210... -
Page 21: Appendix
Appendix Appendix Technical data Dimensions Dimensions (W x H x D): 257 x 170 x 284 mm Weight: 9.5 kg (basic configuration) Do not use the PC in areas The Industrial PC may not be used in areas of explosive hazard. of explosive hazard The following conditions must be observed during operation: Environmental conditions...
