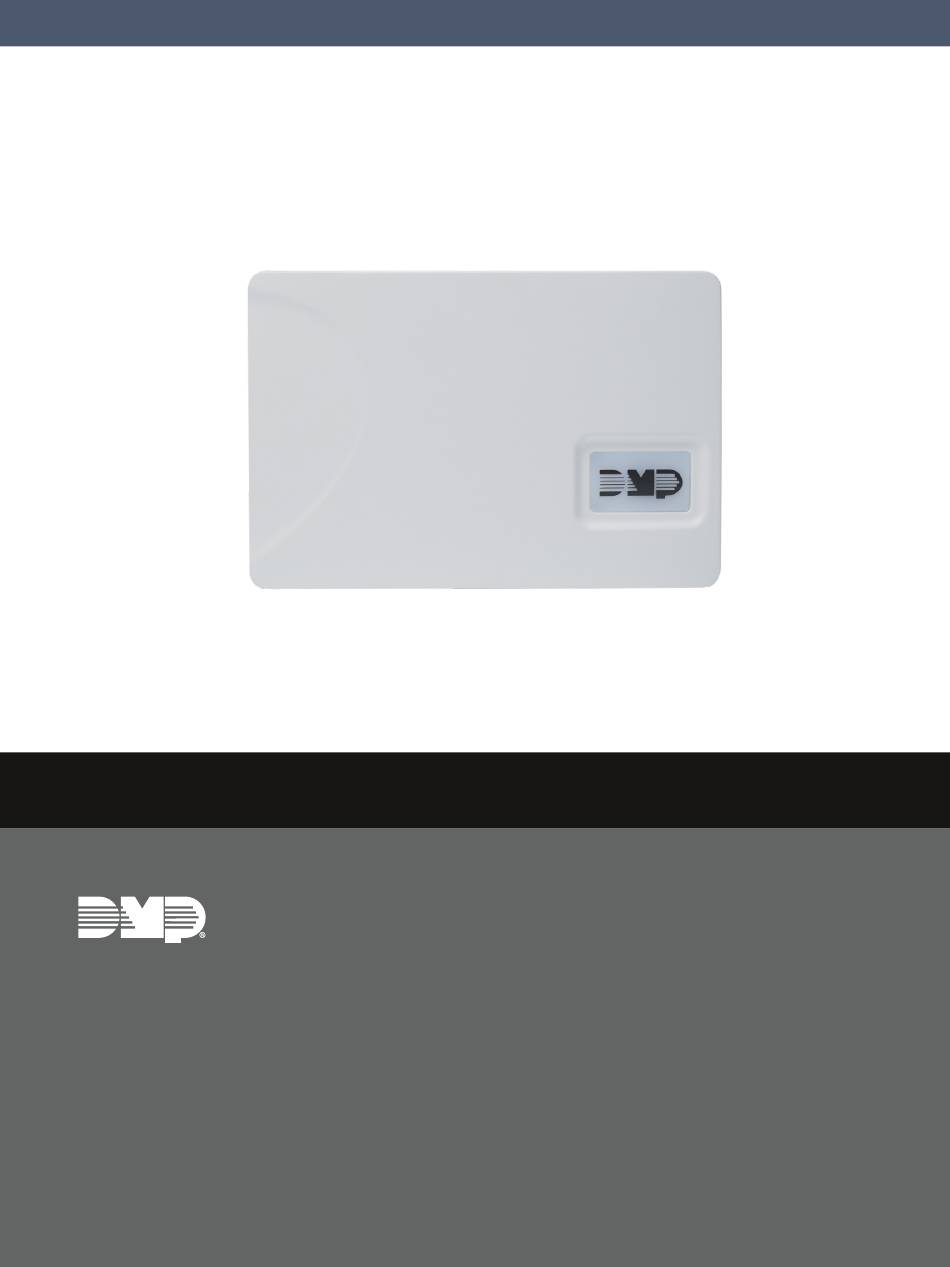

- Page 1 INSTALLATION AND PROGRAMMING GUIDE XTLplus Wireless Package...
-
Page 2: Get Started
▶ ▶ One V-4061DB Video Doorbell (Premium Only) Procedure This guide walks you through the required steps needed to install an XTLplus Wireless Package. They are: Mount the panel enclosure. Install the cellular communicator. Power the panel. Program the panel and devices. -
Page 3: Mount The Enclosure
PCB when installing the enclosure. XTLplus Mounting Holes Antenna LOAD RESET © 2020 DMP WWW.DMP.COM Wi-Fi Z-Wave Module PROG + DC - Mounting Holes Figure 1: Mounting Hole Locations XTLplus Wireless Package Installation and Programming Guide | Digital Monitoring Products... - Page 4 Slide the 265LTE into the XTLplus eight-pin CELL MODULE connector, keeping the 265LTE parallel to panel. Align the standoff hole in the 265LTE with the standoff on the XTLplus and snap it into place. Place the antenna onto the 265LTE SMA connector and then twist the antenna until it is securely tightened.
- Page 5 Standby Battery The XTLplus Series 800 mAh rechargeable battery is used to provide 4 hours of standby battery power when DC power is not available. The battery is intended for backup power only and not to operate the panel on a daily basis. If the battery is low, or not plugged into the BAT battery connector, a low battery condition is indicated by the panel.
-
Page 6: Program The Panel
Panel programming can be done from a hardwired connected keypad, as well as online from Dealer Admin™ (dealer.securecomwireless.com). To access the programmer function of the XTLplus Series panel from a connected keypad: Connect a 7000 Series Thinline Keypad to the PROG header and set the keypad to Address 1. -
Page 7: Network Options
10 characters (WEP64) or 26 characters (WEP128), using a combination of the number 0-9 and the letters A-F. WPA/WPA-PSK uses a custom key that allows 8 to 32 characters. Press CMD to save the key. XTLplus Wireless Package Installation and Programming Guide | Digital Monitoring Products... -
Page 8: Programming Port
Device Number DEVICE NO:- Enter the device number of the wireless device you are programming. The valid range is 2-8. Note: Address one is reserved for the XTLplus programming keypad attached during programming. Device Name * UNUSED * This section allows you to define a 16-character alphanumeric name for the device number. -
Page 9: Remote Options
TIME CHG NO YES This option allows the panel to request automatic time changes from the DMP SCS-1R Receiver. For the receiver to send time changes, it must be programmed to send time changes and must be receiving time change updates from the host automation computer at least every 24 hours. -
Page 10: Output Name
Each zone has a default type. When you assign a Zone Type to a zone, responses are made automatically for the zone. To change the Zone Type, press any Select Key or Area. XTLplus Wireless Package Installation and Programming Guide | Digital Monitoring Products... -
Page 11: Area Assignment
(2 or 4) the PIR will use before sending a short message. The first infrared pulse starts a timer and count. If no additional infrared pulses occur in 25 seconds, the timer and count are reset. Default is 4. XTLplus Wireless Package Installation and Programming Guide | Digital Monitoring Products... -
Page 12: Wireless Pir Sensitivity
At the STOP option, pressing any Select Key or Area allows you to exit the programmer function of the XTLplus Series panel. When selected, the panel performs an internal reset and exits the programmer. The Stop function causes the following conditions to occur: ▶... -
Page 13: Mount The Keypad
Connect the Keypad to Wi-Fi Select Options from the Carousel menu. Select Wi-Fi Settings. Select the Wi-Fi network you would like to connect to. Enter the password and select CMD. XTLplus Wireless Package Installation and Programming Guide | Digital Monitoring Products... -
Page 14: Installer Options
The keypad has local and remote update capabilities. The keypad needs to be connected to Wi-Fi to perform a local and remote update. The remote update capabilities can be used for per device updates through Dealer Admin. XTLplus Wireless Package Installation and Programming Guide | Digital Monitoring Products... - Page 15 Relocate the transmitter or wireless receiver until the LED confirms clear communication. Repeat this step for each wireless device location. This ensures the devices will properly communicate with the XTLplus panel once they have been mounted. XTLplus Wireless Package Installation and Programming Guide | Digital Monitoring Products...
-
Page 16: Install The Battery
When this test is initiated, the panel automatically tests the communication between itself and each wireless zone. Wireless zones should not be manually tripped during this test. Manually tripping zones during this test could lead to a false failure. XTLplus Wireless Package Installation and Programming Guide | Digital Monitoring Products... -
Page 17: Test Communication
Install the Battery Use only a 3.0 V lithium battery, DMP Model CR123A, or the equivalent battery from a local retail outlet. Keep in mind, when setting up a wireless system, program zones and connect the receiver before installing batteries in the transmitters. - Page 18 At the keypad, enter 8144 (WALK) and select WLS. If the transmitter fails to check in at the keypad, ensure that it is wired properly and check for sources of interference such as metal objects and electronic equipment. XTLplus Wireless Package Installation and Programming Guide | Digital Monitoring Products...
- Page 19 INSTALL THE VIDEO DOORBELL (PREMIUM ONLY) Follow the steps below if you have an XTLplus Premium Package. If you have an XTLplus Classic Package, skip the video doorbell steps. For full installation and programming instructions, refer to the V-4061DB Video Doorbell Installation Guide (LT-2524).
- Page 20 No Chime when installing the video doorbell with a 16-24V plug in transformer. If No Chime is selected, make sure you have installed the included fuse. The V-4061DB is not compatible with digital chimes. Note: When using the V-4061DB with a DMP 1108 Doorbell Module (LT-1919), you must program the doorbell as a mechanical chime in all circumstances.
-
Page 21: Fcc Information
I N T R U S I O N • F I R E • A C C E S S • N E T W O R K S manufactured in Springfield, MO 2500 North Partnership Boulevard using U.S. and global components. Springfield, Missouri 65803-8877 LT-2865 24251 800.641.4282 | DMP.com © 2024...
