Receiver 1 Programming 15 What’s Included 5 Alarm Reports 15 Supervisory/Trouble Reports 15 Step 1: Install The TMSentry ������������������������������ 6 Opening/Closing and User Reports 15 Prepare the Backbox for Wiring 6 Test Report 15 Install the Backup Battery 7...
Page 3
Zone Restoral Reports 20 Zone Number 26 Bypass Reports 20 Zone Name 26 Code Change Reports 20 Zone Type 26 Send Stored Messages 20 Area Assignment 26 Ambush 20 Arm Areas 26 Entry Check-in Protection 20 Style 26 Next Zone 27 System Options ��������������������������������������������������21...
Page 4
Appendix E: 984 Command Function ����������� 36 NET 36 CELL 36 Appendix F: Common Keypad Messages ����� 37 Appendix G: Keypad Speaker Operation ������ 38 Burglary Events 38 Zone Monitor Events 38...

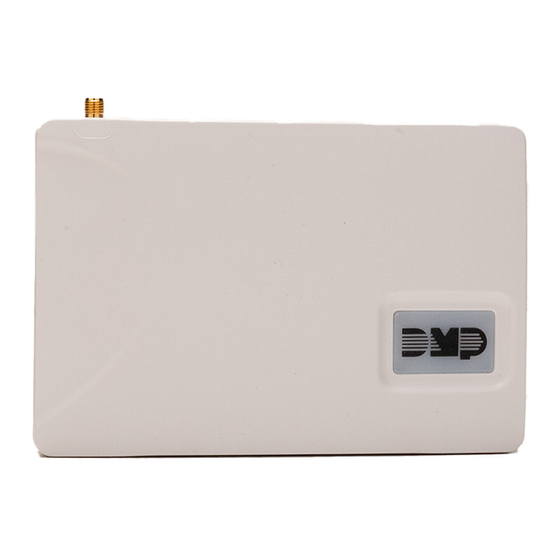

ATMs The feature set is specifically geared towards teller machine security, including user and zone inactivity audits and encrypted communication The information in this document covers the installation and programming of the TMSentry panel Refer to the TMSentry User Guide...
Drill out the desired conduit knockouts for routing wires to the panel Install strain relief, which secures the wires that exit the backbox to the backbox Conduit Knockouts Figure 2: Conduit Knockouts TMSentry Installation and Programming Guide | Digital Monitoring Products...
Install the Backup Battery The TMSentry has a 24-hour backup battery that provides standby power if the power supply cannot power the panel The backup battery is charged by the power supply Secure the battery to the backside of the panel enclosure with the provided double-sided tape Do not cover...
The black wire should be on top and the red wire should be on the bottom Secure the wiring harness to the backbox using strain relief Program the keypad as a device in the TMSentry and program the keypad Refer to 7000 Series Installation and...
Figure 9: Mounting the TMSentry to the Backbox Install the Antenna Drill a 1/2” hole in the outside of the ATM (1) or use the existing knockout DMP recommends installing on the back near the top of the ATM Route the antenna wire through the drilled hole to the inside of the ATM (2)...
13 Press Yes in the pop-up 14 Configure additional options as needed 15 Press Save For more information about using Dealer Admin, refer to the Dealer Admin Help File TMSentry Installation and Programming Guide | Digital Monitoring Products...
Dealer Admin Find and select the customer name Select the TMSentry system connected to the account The System Information page opens Go to Remote Update Select Update System if there are updates available For more information about using Dealer Admin, refer to the...
STEP 4: PROGRAM THE PANEL Caution: Before programming the panel, make sure the panel is properly grounded All wiring connections and grounding instructions are detailed in the Install the TMSentry section of this guide Quick Reference SPECIFICATION NUMBER Total Zones...
Communication, Network Options, Remote Options, System Reports, System Options, Output Options, and Area Information from the panel Selecting YES does not clear the panel’s event memory, zone information, user code information, or schedules TMSentry Installation and Programming Guide | Digital Monitoring Products...
This specifies the communication method the panel uses to contact the receiver Press any select key to display the following communication options: NET - Network communication to DMP Model SCS-1R Receivers or SCS-VR Receivers CELL - Cellular communication to DMP Model SCS-1R or SCS-VR Receivers...
16 characters to equal 32 characters Default is set to SECURECOM400 Receiver 1 Programming RECEIVER 1 PROG Enables you to set the options for the first receiver the TMSentry panel attempts to contact when sending reports The TMSentry supports communication to two receivers Alarm Reports...
Receiver 2 Programming RECEIVER 2 PROG Enables you to set the options for the second receiver the TMSentry panel attempts to contact when sending reports If you select YES for any of the Receiver 2 options, you must have at least one phone number or IP address programmed in Receiver 2...
Page 17
Enter the Second IP Port number to be used in conjunction with the Second IP Address The IP port identifies the port used to communicate messages to and from the panel The default IP port setting is 2001 TMSentry Installation and Programming Guide | Digital Monitoring Products...
Receiver, but the data is not encrypted The Passphrase is blank by default The TMSentry can communicate 128-bit encrypted data to an SCS-104 line card installed at the receiver The TMSentry and the receiver SCS-104 line card must have the same password called a Passphrase...
IP address programmed in Network Options To enter a new App Key, press any select key and enter any combination of 8 digits Press CMD The default for this option is blank TMSentry Installation and Programming Guide | Digital Monitoring Products...
SYSTEM REPORTS System Reports SYSTEM REPORTS This function enables you to select the reports the TMSentry sends to the receiver Opening/Closing Reports O/C RPTS NO YES NO - No Opening/Closing Reports are sent YES - Sends Opening/Closing Reports for each programmed area...
9 hours When the AC power is off for the length of the programmed delay time, an AC power failure report is sent to the receiver Entering a 0 (zero) sends the AC power failure report within 15 seconds Default is 1 hour TMSentry Installation and Programming Guide | Digital Monitoring Products...
Page 22
Time Zone Changes TIME CHG This option enables the panel to request automatic time changes from the DMP SCS-1R Receiver For the receiver to send time changes, it must be programmed to send time changes and must be receiving time change updates from the host automation...
This option enables local USA weather updates to display on the keypad Enter the zip ZIP CODE: code of the user at this option When no number is entered weather conditions are not displayed Default is 0 (zero) TMSentry Installation and Programming Guide | Digital Monitoring Products...
Enter the output to turn on steady when any area of the system is armed If an alarm occurs causing the keypads to turn red, this output pulses and continues to pulse for approximately 3 minutes after the panel is disarmed Enter 0 (zero) to disable TMSentry Installation and Programming Guide | Digital Monitoring Products...
Page 25
NO disables automatic disarming by schedule for this area Select YES to allow this area AUTO DIS to automatically disarm according to a schedule If an Opening report is sent to the receiver, the user number is indicated as SCH TMSentry Installation and Programming Guide | Digital Monitoring Products...
This enables you to define the operation of each protection zone used in the system Zone Number ZONE NO: - Enter the number of the zone you intend to program The TMSentry has six built-in zones Press CMD Zone Name...
Only the programmed Output Number activates Output Number You can specify the outputs on the TMSentry to be activated by a zone condition The OUTPUT NO: output can be activated regardless of the report to transmit or whether or not the zone...
If CRS ZONE is YES, a valid CRS ZN TIME must be programmed for this feature to be enabled Cross-zoning is not compatible with Fire Verify zone types You cannot enable cross- zoning for Fire Verify zones TMSentry Installation and Programming Guide | Digital Monitoring Products...
Enter the zone number you want to program next Return to the beginning of this section and follow the descriptions of each programming option If all zones are programmed, press the ARROW key at the ZONE NO: – display to continue TMSentry Installation and Programming Guide | Digital Monitoring Products...
The STOP option does not disarm the system Any new areas or zones that were added during programming are not armed until the system is disarmed and armed again TMSentry Installation and Programming Guide | Digital Monitoring Products...
Once you have changed the code, it is important that you write it down and store it in a safe place Lost lockout codes require the panel to be sent back into DMP for repair You may cancel a Lockout Code by entering 00000 at the Set Lockout Code command...
Default Master Code TMSentry panels ship with a unique 4-digit default master code that is used to access the user menu This code can be modified or deleted To revert back to the default code 99, use the initialize code option found in panel...
No, item clears when condition restores (DC and battery trouble) Armed status display No (System On) Disarmed status displays No (System Ready, System Not Ready) Remote keypad messages No (Sent to the keypad by your office or monitoring center) TMSentry Installation and Programming Guide | Digital Monitoring Products...
APPENDIX C: FALSE ALARM REDUCTION The following information details three of many false alarm reduction features in the TMSentry System Recently Armed Report The System Recently Armed report is sent when a burglary zone goes into alarm within two minutes of the system...
Panel Model displays the model number of the panel Firmware Version displays the firmware version number of the panel and the date the firmware version was released TMSentry Installation and Programming Guide | Digital Monitoring Products...
Page 36
MODEM, TOWER, SIM, APN, CELL COMM See the Diagnostic Functions section for a description of the Cellular Status results If CELL is not a communication option on the panel, NO CELL displays on the keypad and the keypad display returns to the Status List TMSentry Installation and Programming Guide | Digital Monitoring Products...
Page 37
Make sure the telephone line is has not succeeded connected and working properly ENTER CODE (When entering A lockout code has been programmed for Enter the lockout code Programming) the panel TMSentry Installation and Programming Guide | Digital Monitoring Products...
