- Page 1 INSTALLATION AND PROGRAMMING GUIDE XF6 Series DIGITAL MONITORING PRODUCTS, INC.
- Page 2 Contains installation and programming Instructions for use with the Model XF6 Series Fire Control Panels. When using the XF6 Series panel for any listing organization’s approved methods, refer to the Compliance Listing Guide (LT-2779). This document outlines the installation and programming requirements of all applications for which XF6 Series control panels are approved.
-
Page 3: Table Of Contents
Receiver Port .................22 NAC Circuits ................11 Fail Test Hours ..............22 Zones ..................12 Protocol ...................22 Dry Contact Relay Outputs ..........13 Retry Seconds ..............22 Annunciator Outputs ............13 Duplicate Alarms ..............22 Send Path Information ............22 XF6 INSTALLATION AND PROGRAMMING GUIDE | DIGITAL MONITORING PRODUCTS... - Page 4 Zone Reports ................27 Sensor Reset Output ............33 User Command Reports ...........27 Supervisory Alarm Output ..........33 Supervisory Reports ............27 AC Fail Output ..............33 Integrator Passphrase ............27 Carbon Monoxide Alarm Output ........33 App Key...................27 XF6 SERIES INSTALLATION AND PROGRAMMING GUIDE | DIGITAL MONITORING PRODUCTS...
- Page 5 Fast Response ..............39 Fire Panel Slave Input ............39 STOP ............40 Stop ..................40 SET LOCKOUT CODE ......41 Set Lockout Code ..............41 APPENDIX..........42 Diagnostics Function ............42 Using the Walk Test ............44 Walk Test.................44 Zone Types................44 XF6 INSTALLATION AND PROGRAMMING GUIDE | DIGITAL MONITORING PRODUCTS...
-
Page 6: About The Panel

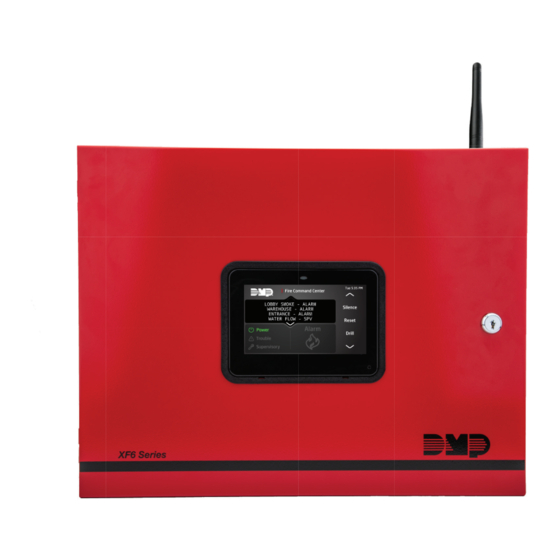

AbOUT THE PANEL The DMP XF6 Series system consists of an alarm panel with a built-in communicator, an enclosure with built-in Graphic Fire Command keypad, and a 28 VAC 130 VA transformer. A complete system can provide: • 138 or 570 programmable inputs and outputs for commercial and industrial fire alarm service •... -
Page 7: Specifications Summary
2W-BLX/2WT-BLX Addressable Smoke Detectors OUTPUTS The XF6 Series panel provides two Single Pole, Double Throw (SPDT) relay outputs which require the installation of two Model 305 relays, each rated 1 Amp at 30 VDC resistive (power limited sources only). A Model 431 Output Harness is required to use these outputs. -
Page 8: System Components
Metal Oxide Varistors and Transient Voltage Suppressors help protect against voltage surges on panel input and output circuits. Additional surge protection is available with Model 370 or 370RJ Lightning Suppressors. For more information, refer to the 370/370RJ Installation Sheet (LT-0181). Digital Monitoring Products XF6 Series Installation and Programming Guide... -
Page 9: Install The Panel
MOUNT THE ENCLOSURE The XF6 Series Series panel enclosure must be mounted using the four mounting holes shown in the image below. Mount the enclosure in a secure, dry place to protect the panel from damage from tampering or the elements. It is not necessary to remove the panel PCB when installing the enclosure. -
Page 10: Fire Command Lcd Keypad
7830F Fire Command Keypad MOUNTING ADDITIONAL KEYPADS, ZONE EXPANDERS, AND MODULES All DMP keypad housings are designed to install on any 4” square box, 3-gang switch box, compatible backboxes, or directly on a flat surface. The DMP 711, 714, 715, and 716 modules are each contained in molded plastic housings with removable covers. The base provides you with mounting holes for installing the unit to a wall, switch plate, or other surface. -
Page 11: Wire The Panel
Battery Only Restart When powering up the XF6 Series Series panel without AC power, briefly short the battery start pads to pull in the battery cutoff relay. Once the relay has been pulled in, the battery voltage holds it in that condition. -
Page 12: Power Requirements
POWER REQUIREMENTS During AC power failure, the XF6 Series panel and all connected auxiliary devices draw their power from the battery. All devices must be taken into consideration when calculating the battery standby capacity. The following table lists the XF6 Series panel power requirements. - Page 13 Based on 10% of active zones in alarm. For systems that are not central station monitored, multiply alarm current by 12. * Where h = hours of alarm. For example, a 15 minute alarm = 0.25 h. Digital Monitoring Products XF6 Series Installation and Programming Guide...
- Page 14 4. Install the number of batteries shown in the corresponding No. of Batteries required column. For listed installations, batteries can be installed in a DMP Model 349, 350 or 352S enclosure and all wiring shall run through conduit. The enclosure shall be installed to the left of the XF6 Series enclosure to ensure Battery and Auxiliary wire separation.
-
Page 15: Lx-Bus Expansion
LX800 provides zones 800-899 (XF6-500 Series only) • LX900 provides zones 900-999 (XF6-500 Series only) Note: The XF6 does drops power to the LX-Bus during a sensor reset. WIRELESS bUS EXPANSION The Wireless Bus (XBUS) header provides connection for the 1100X or 1100XH Wireless Receiver. The XBUS provides up to 500 wireless zones numbered 500-999. -
Page 16: Aux Output
The panel 12 VDC Keypad Bus includes Terminals 7, 8, 9, and 10. You can connect up to fifteen supervised keypads and multiple unsupervised keypads to the panel. In addition to DMP keypads, you can also connect any combination of zone expansion modules. Refer to the specific device installation sheet for the maximum number of Keypad Bus devices. Refer to the LX-Bus section for more information about LX-Bus expansion. -
Page 17: Zones
Contact Color Normally Closed Violet Normally Closed Violet with white stripe Common Gray Common White with gray stripe Normally Open Orange Normally Open Orange with white stripe Model 431 Output Wiring Digital Monitoring Products XF6 Series Installation and Programming Guide... -
Page 18: Dry Contact Relay Outputs
DRY CONTACT RELAY OUTPUTS The panel provides two programmable auxiliary SPDT relays when equipped with two DMP Model 305 relays in sockets OUTPUT 1 and OUTPUT 2 and a Model 431 Output Harness on the OUT1-OUT2 6-pin header. Each relay provides one SPDT set of contacts that can be operated by any of the functions listed below: •... -
Page 19: Accessory Devices
263LTE-A/381-2 LTE AT&T Provides cellular communication for XF6 Series Panels. Cellular Communicator 263LTE-FN/381-2 FirstNet Provides cellular communication for XF6 Series Panels over the FirstNet network. Cellular Communicator Expansion Modules 710 Bus Splitter/Repeater Expands the number of devices and length of wire on the LX-Bus or keypad bus. - Page 20 2W-BLX Conventional Smoke A photoelectric detector that includes an addressable single point module for Detector connection to the LX-Bus of the XF6 Series panels. 2WT-BLX Conventional Smoke/ A photoelectric detector that includes an addressable single point module with a Heat Detector restorable, built-in fixed temperature thermal detector and is capable of sensing a temperature higher than 135 °F.
- Page 21 A 3 V battery-powered wireless carbon monoxide (CO) detector that provides early warning when the electrochemical sensing technology measures carbon monoxide levels in the air. The transmitter can send alarm, trouble, tamper and low battery condition messages to the alarm panel. Digital Monitoring Products XF6 Series Installation and Programming Guide...
-
Page 22: Programming
This guide provides programming information for the DMP XF6 Series panel. Before starting to program, we recommend that you read through the contents of this guide. In addition to this guide, you should also read and be familiar with the XF6 Series Compliance Listing Guide (LT-2779). Internal Programmer The panel contains all of its programming information in an on-board processor and does not require an external programmer. -
Page 23: Keypads
KEYPADS DMP offers multiple keypads in a variety of styles that provide programming capabilities. Each keypad and its operation are shown and described in the following sections. SPECIAL KEYS The following special keys/areas are common to all DMP keypads. COMMAND (CMD) Key Pressing CMD allows you to go forward through the programming menu and through each step of a programming sec- tion. - Page 24 A PROGRAMMING SESSION Momentarily place the Reset jumper over both of the RESET pins to reset the panel. Enter the code 6653 (PROG) and press CMD. The keypad displays: PROGRAMMER. Digital Monitoring Products XF6 Series Installation and Programming Guide...
-
Page 25: Initialization
YES sets the panel’s programming back to factory default selections and clears all Device Setup, System Options, and Remote Options programming from the panel. Selecting YES does not clear the panel’s event memory, zone, user code information, or schedules. Digital Monitoring Products XF6 Series Installation and Programming Guide... -
Page 26: Communication
COMM TYPE: NONE Specifies the communication method the panel uses on this path to report system events to DMP SCS-1R or SCS-VR Receivers. Default is NONE for Path 1-8. NONE ‑ For local systems. Selecting NONE ends communication programming. NET ‑ Network communication using the panel onboard network connection. The DMP... -
Page 27: Fail Time
This option displays for each path and if YES, each panel message includes path NO YES information such as path number, communication type, and path type. Default is NO. NETWORK OPTIONS Digital Monitoring Products XF6 Series Installation and Programming Guide... -
Page 28: Network Options
IP addresses. The default address is 192.168.0.1. On systems with hardwired network connection, the DNS address can be changed even if the panel has DHCP enabled. DEVICE SETUP Device Setup DEVICE SETUP Digital Monitoring Products XF6 Series Installation and Programming Guide... -
Page 29: Device Setup
This section allows you to select a device type for the selected device number. FIRE ‑ A 7830F Fire Command Keypad or 630F Remote Annunciator. See Fire Device Remote Programming in the XF6 Series Compliance Guide (LT-2779) for instructions on how to allow remote panel programming. -
Page 30: Remote Options
Walk Test, Zone Verify and Zone Fail messages are sent for each zone. User Command Reports USER CMDS NO YES Sends user code changes, schedule changes, and events. Supervisory Reports SUPV MSG: Digital Monitoring Products XF6 Series Installation and Programming Guide... -
Page 31: User Command Reports
Zone Reports ZONE: Sends changes in the status of active zones. Includes the zone number, name, type, the action (alarm, trouble, bypass, etc.), and user number (if applicable). If performing a Walk Digital Monitoring Products XF6 Series Installation and Programming Guide... -
Page 32: User Command Reports
App Key, press any select key or area and enter any combination of 8 digits. Press CMD. SYSTEM OPTIONS System Options SYSTEM OPTIONS This section allows you to select system-wide parameters. Digital Monitoring Products XF6 Series Installation and Programming Guide... -
Page 33: System Options
Time Changes TIME CHG This function allows the panel to request automatic time changes from the DMP SCS-1R Receiver on Path 1. For the receiver to send time changes, it must be programmed to send time changes and must be receiving time change updates from the network automation computer at least every 24 hours. -
Page 34: Programming Menu Language
FRN = French (FRANCAIS) House Code WIRELESS When using a DMP wireless system, enter a house code between 0 and 50. Default is 0 HOUSE CODE: indicating no wireless system is being used. The DMP house code identifies the panel, DMP receiver, and DMP transmitters to each other. -
Page 35: Wireless Encryption
Fire and Fire Verify zones during daytime hours (9 AM to 9 PM). Default is ANY. bELL OPTIONS bell Options BELL OPTIONS This section allows you to program the panel bell output functions. Digital Monitoring Products XF6 Series Installation and Programming Guide... -
Page 36: Bell Options
NO YES This prompt will only display when either NAC 1 or NAC 2 is programmed to something other than DMP. Selective Silence allows the bell and strobe function of the field device to be turned off separately. Default is YES. -
Page 37: Output Options
Enter 0 (zero) to disable this output. This output is not compatible with Cutoff Outputs. This output can be connected to a lamp, LED, or buzzer using the DMP Model 716 Output Expansion Module. Device Fail Output... -
Page 38: Sensor Reset Output
Enter an output number. Entry range is 1 to 6, 500-599, G01-G20. OUTPUT NUMBER In order for wireless output troubles to display at a keypad, the keypad address must be specified at the Auxiliary 1 Zones option in the Status List programming. Digital Monitoring Products XF6 Series Installation and Programming Guide... -
Page 39: Output Information
Output Name This section allows you to define a 32 character alphanumeric name for any output OUTPUT NAME numbers. See the XF6 Users Guide (LT-2792) Appendix for browser operation. Output Real‑Time Status OUTPUT REAL-TIME STATUS Selecting YES allows Real-Time Status reports of a hardwire device, such as Output ON, OFF, PULSE, or TEMPORAL to be sent using PC Log reports. -
Page 40: Output Groups
ZONE INFORMATION system. All protection zones are programmed the same way. Zone Number ZONE NO: - Enter the number of the zone you intend to program. XF6-100 panels have onboard zones Digital Monitoring Products XF6 Series Installation and Programming Guide... -
Page 41: Zone Information
1-6 and LX-500-599 available. XF6-500 panels have onboard zones 1-6 and LX-500-999 available. Available zone numbers are shown in the table below. Panel Programming Zone Number Onboard Keypad bus Programming Zone Number 11-14 21-24 31-34 41-44 51-54 61-64 71-74 81-84... -
Page 42: Fire Bell Output
This output (1 to 6, 500-599, G01-G20 for XF6-100 panels, 1 to 6, 500-999, G01-G20 for XF6-500 panels) is turned on any time a Fire, Supervisory , Fire Verify, or Carbon Monoxide (CO) zone is placed in alarm. The output is turned off by any of the following actions: •... -
Page 43: Contact 1
If within one hour, a zone trips the total number of times as specified in Swinger Bypass Trips, the panel bypasses it until one of the following conditions occur; • The zone remains normal for one hour and the Reset Swinger Bypass is YES. Digital Monitoring Products XF6 Series Installation and Programming Guide... -
Page 44: Swinger Bypass
At the STOP option, pressing any select key or area allows you to exit the Programmer function of the panel. When selected, the panel performs an internal reset and exits the Digital Monitoring Products XF6 Series Installation and Programming Guide... -
Page 45: Stop
The STOP routine causes the following conditions to occur: • All 1100 Series DMP Wireless transmitters are reset to NORMAL • The panel Status List is cleared and all programming changes are saved Missing LX‑bus™ Modules Displayed The Programmer includes a feature following the STOP routine that displays the name of any programmed LX-Bus module not currently connected to the panel. -
Page 46: Set Lockout Code
Once you have changed the code, it is important to write it down somewhere and store it in a safe place. Lost Lockout Codes require the panel to be sent back to DMP for repair. You may cancel a Lockout Code by entering 00000 at the Set Lockout Code command. -
Page 47: Diagnostics Function
This number is the network communicator serial number. Reference this number for communicator date-of-manufacture, hardware version, etc. Press any select key or area to display the Serial Number. Press CMD to view the next option. Digital Monitoring Products XF6 Series Installation and Programming Guide... - Page 48 To conduct the Walk Test, reset the control panel by momentarily placing a jumper on WALK TEST RESET. From the keypad, enter the code 8144. The keypad displays WALK TEST for four seconds. If the system is monitored and the Digital Monitoring Products XF6 Series Installation and Programming Guide...
-
Page 49: Using The Walk Test
Sensor Reset occurs. The System Test End message is sent to the receiver along with Verify and Fail messages for each zone under test. Faulted zones then display on the keypad. Trip Counter For DMP Wireless Check‑in Test (WLS) IN PROGRESS XMIN CHECKIN: CC/TT END Displays the number of wireless zones that automatically communicate a supervisory check-in message. -
Page 50: Trip Counter For Dmp Wireless Check-In Test (Wls)
DMP 1100 Series Supervision Time Explained The supervision time programmed for DMP 1100 Series wireless is the number of minutes that must elapse before a transmitter missing message is generated for a transmitter that is not sending its automatically generated supervision message. -
Page 51: Zone Type Descriptions
The system AC is low or missing. Check that all AC connections are good. Check that the battery connections are BATTERY TROUBLE The System battery is either low or missing. good and the battery is still good. Digital Monitoring Products XF6 Series Installation and Programming Guide... - Page 52 Verify the receiver is properly connected to wireless receiver. the panel. Verify the correct House Code is WIRELESS TROUBLE programmed in System Options. Satisfy the The wireless receiver’s tamper may be faulted. front and/or rear tamper. Digital Monitoring Products XF6 Series Installation and Programming Guide...
-
Page 53: Fcc Information
Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Digital Monitoring Products XF6 Series Installation and Programming Guide... - Page 54 Digital Monitoring Products XF6 Series Installation and Programming Guide...
- Page 55 A C C E S S N E T W O R K manufactured using U.S. and global 2500 North Partnership Boulevard components in Springfield, MO. Springfield, Missouri 65803-8877 © 2023 Digital Monitoring Products, Inc. 888.436.7832 | DMP.com LT-2777 1.01 23505...
