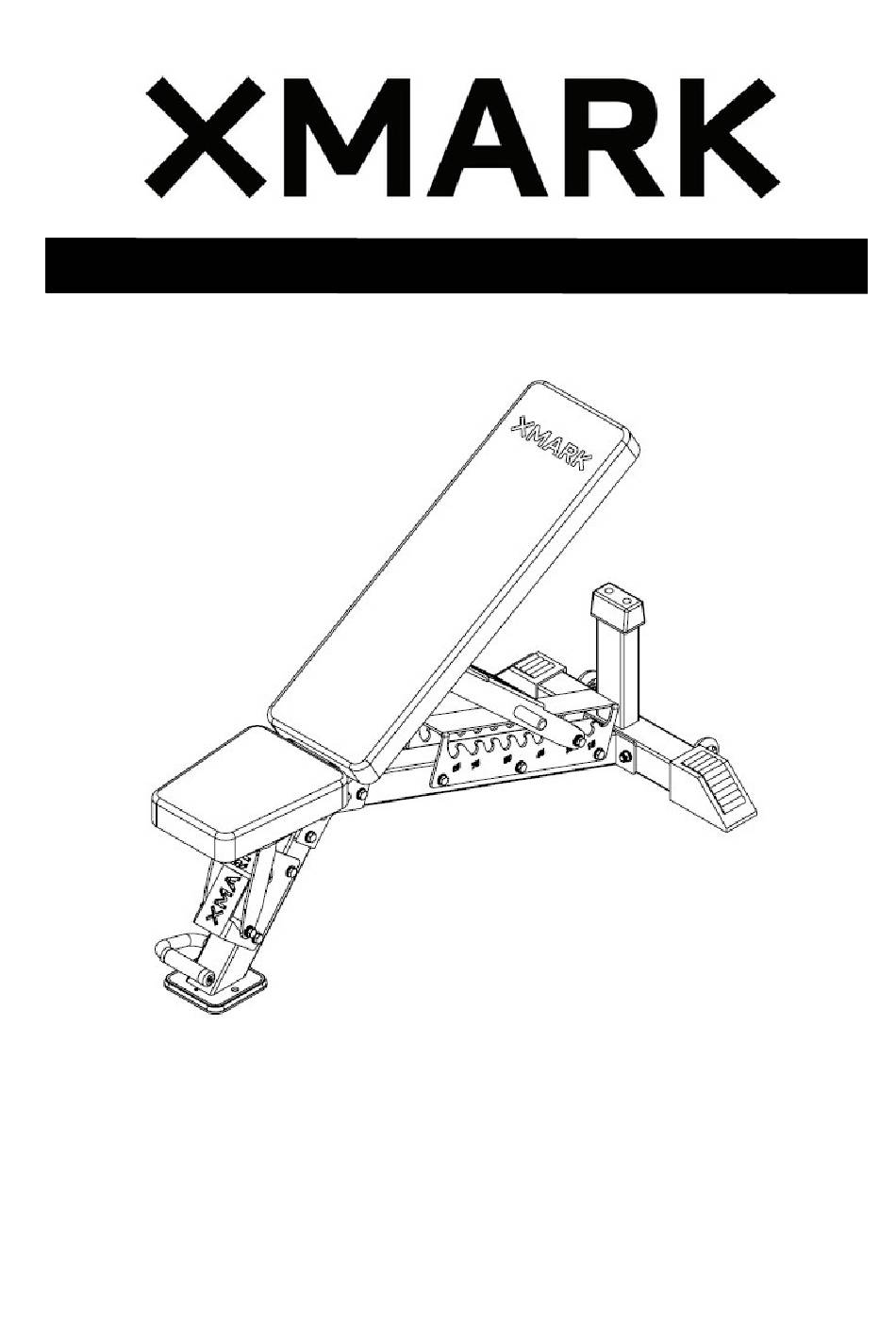

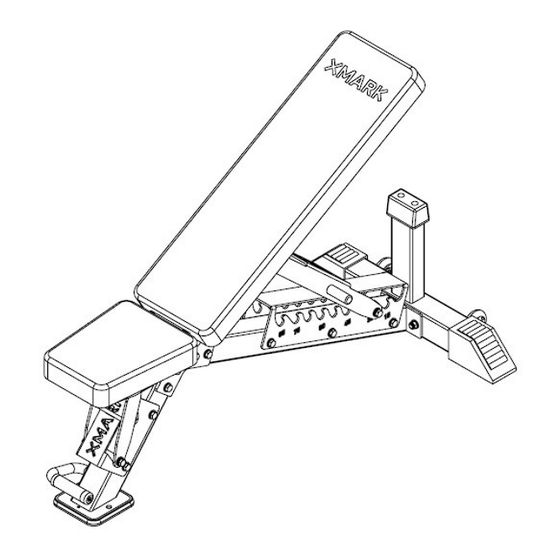

- Page 1 ASSEMBLY INSTRUCTIONS XM-9027 XMARKFITNESS.COM...
-
Page 2: Important Safety Information
We at XMARK truly appreciate your business and are grateful for the trust you've placed in us. We sincerely hope you are satisfied with your purchase. Don't forget to register your product. We've made registration fast and easy by using this QR code to the left or by visiting xmarkfitness.com/register. - Page 3 STEP 1 Attach both wheels (#19) to the bottom support frame (#2), using: Hex Head Bolt (#31) - Qty 2 Flat Washer (#38) - Qty 4 Nylon Lock Nut (#45 - Qty 2 ） TIGHTEN ANY BOLTS OR SCREWS...
- Page 4 STEP 2 Attach the bottom support frame (#2) to main frame (#1), using: Hex head bolt (#34) - Qty 2 Flat washer (#41) - Qty 2 Flat washer (#42) - Qty 2 Nylon lock nut (#46) - Qty 2 Attach adjustment handles (#13) to the main frame (#1), using: Hex countersunk head screws (#27) - Qty 2 TIGHTEN ANY BOLTS OR SCREWS...
- Page 5 STEP 3 Temporarily remove the fasteners of the adjustment support and the seat support and re- tighten them properly after the next step is completed. Attach back cushion (#25) and seat cushion (#24) to main frame (#1), using: Hex head bolt – Qty 8 Flat washer –...
- Page 6 PREASSEMBLED PARTS LIST Part Description Fixed frame Seat Support Frame Front Support Frame Seat Frame Rear Support Frame Rear brushed Stainless Steel rail Front brushed Stainless Steel rail Rotation Shaft Φ12X132XM8 Fixed Shaft Φ20X102XM12 Rotation Shaft Φ12X135XM8 Long Fixed Shaft Φ20X126XM12 Retaining Ring Aluminum End cap Bronze bushing Φ25XΦ12.2X12.9...
- Page 7 TO BE ASSEMBLED PARTS LIST Part Description Main Frame Bottom Support Frame Adjustment Handle Wheels Seat Cushion Back Cushion Hex Countersunk Head Screws M6X20 Hex Head Bolt M8X45 Hex Head Bolt M10X30 Hex Head Bolt M12X100 Flat Washer Φ9 Flat Washer Φ11 Flat Washer Φ13.5XΦ24 Flat Washer Φ13.5XΦ37 Nylon Lock Nut M8...
-
Page 8: Exploded View
EXPLODED VIEW... - Page 9 THANK YOU FOR CHOOSING XMARK! Let others know how much you love your XMARK equipment by leaving us a review at xmarkfitness.com. If you’ve had less than a positive experience, email us at service@xmarkfitness.com or call us at 1-800-719-4605. We’re committed to delivering excellence and your feedback helps us to keep improving our products.
