OHAUS Defender 5000 Series Instruction Manual
Floor platform, low profile floor platform
Hide thumbs
Also See for Defender 5000 Series:
- Instruction manual (396 pages) ,
- User manual (124 pages) ,
- Operator's manual (28 pages)
Related Manuals for OHAUS Defender 5000 Series
Summary of Contents for OHAUS Defender 5000 Series

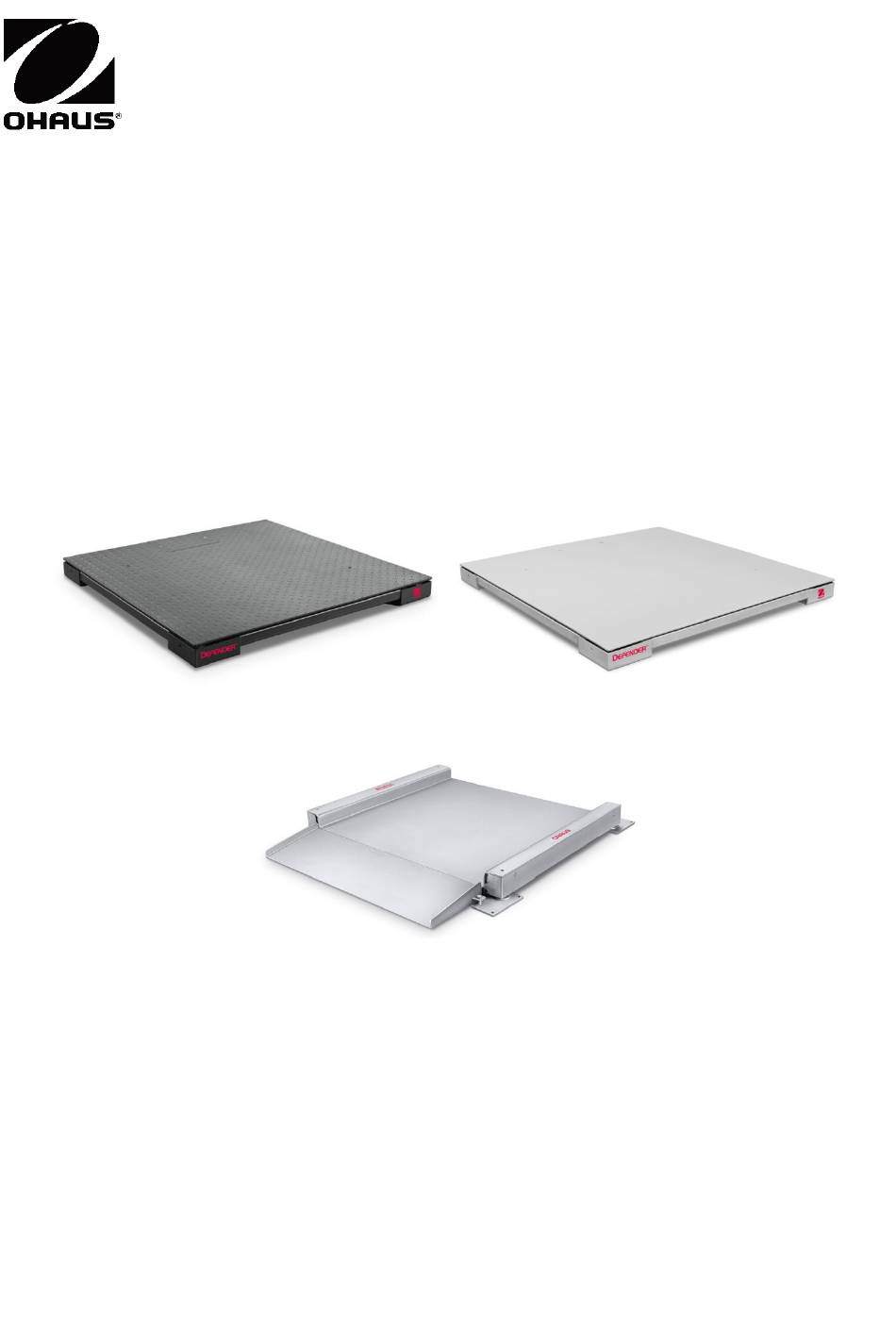

- Page 1 Defender 5000 Series Instruction Manual Floor Platform (i-DF) Low Profile Floor Platform (i-DFD)
- Page 2 Version History Date Version Description 2024/1/22 New release...
-
Page 3: Table Of Contents
Table of Contents INTRODUCTION ................................. 1 SAFETY PRECAUTIONS ............................1 i-DF FLOOR PLATFORM INSTALLATION ......................... 1 i-DFD LOW PROFILE FLOOR PLATFORM INSTALLATION ..................3 OPERATION ................................4 MAINTENANCE................................4 TECHNICAL DATA ..............................5 DRAWINGS ................................. 6 ACCESSORIES ................................7 COMPLIANCE ................................8... -
Page 4: Introduction
EN-1 Defender 5000 Series Floor Platform INTRODUCTION This manual contains installation, operation and maintenance instructions for the Defender 5000 Series Floor Platform. SAFETY PRECAUTIONS Definition of Signal Warnings and Symbols Safety notes are marked with signal words and warning symbols. These show safety issues and warnings. Ignoring the safety notes may lead to personal injury, damage to the instrument, malfunctions and false results. - Page 5 CAUTION: Ensure that the cable is protected against possible damage when routed to the Indicator. Connect to an Indicator with EasyConnect When connecting the base to an OHAUS indicator equipped with the EasyConnect™ connector, push the base connector onto the indicator connector and turn the locking ring clockwise to lock it in place.
-
Page 6: I-Dfd Low Profile Floor Platform Installation
CAUTION: Ensure that the cable is protected against possible damage when routed to the Indicator. Connect to an Indicator with EasyConnect When connecting the base to an OHAUS indicator equipped with the EasyConnect™ connector, push the base connector onto the indicator connector and turn the locking ring clockwise to lock it in place. -
Page 7: Operation
Defender 5000 Series Floor Platform EN-4 Connect to an Indicator with Internal Connection When connecting the base to an indicator that does not have the matching connector install the optional load cell cable adapter (P/N 30429931 sold separately) to the indicator according to the wiring codes. -
Page 8: Technical Data
EN-5 Defender 5000 Series Floor Platform TECHNICAL DATA Equipment Ratings: Altitude: 2,000m Operating temperature: -10° C to 40° C Maximum relative humidity 85% for temperatures up to 31 ° C decreasing linearly to 50% Humidity: relative humidity at 40° C. -
Page 9: Drawings
Defender 5000 Series Floor Platform EN-6 DRAWINGS i-DF Floor Platform Dimensions TABLE 6. FLOOR PLATFORM DIMENSIONS Model i-DF300Q1S/T1S 800 mm 800 mm 90 mm i-DF600Q1R/T1R 1000 mm 1000 mm 90 mm i-DFxxxxQ1L/T1L 1250 mm 1250 mm 90 mm i-DFxxxxQ1X/T1X 1500 mm... -
Page 10: Accessories
EN-7 Defender 5000 Series Floor Platform ACCESSORIES TABLE 5. LIST OF ACCESSORIES Item Part Number Ramp 800 DF-Q1 CS 30724867 Ramp 1000 DF-Q1 CS 30572944 Ramp 1250 DF-Q1 CS 30572945 Ramp 1500 DF-Q1 CS 30572946 Ramp 800 DF-T1 SS 30724878... -
Page 11: Compliance
Ohaus. In lieu of a properly returned warranty registration card, the warranty period shall begin on the date of shipment to the authorized dealer. - Page 12 *30943432* P/N 30943432 A © Ohaus Corporation 2024, all rights reserved / todos los derechosreservados / tousdroitsréservés / alleRechtevorbehalten / tutti i dirittiriservati / todos os direitos reservados / Alla rättigheter förbehållna / alle rechten voorbehouden / alle rettigheder forbeholdes / wszelkie prawa zastrzeżone / všechna...
