Quick Start Guide
ASSEMBLY
Remove Scale and
Accessories from carton.
Remove Shipping
Spacers.**
**Not included with
some models.
Attach Indicator Mounting
and secure Load Cell Cable.
Ohaus Corporation www.ohaus.com
Calle 23B No. 81A - 62 Modelia PBX: (571) 410 28 48 Fax: (571) 263 72 24 Bogotá, D.C. - Colombia.
www.tecnipesaje.com
Attach Indicator to Bracket.
Attach Bracket to Column.
Install Platform.
Adjust leveling feet.
x 4
Connect Power Cord to Indicator.
Plug Power Supply to Wall Outlet.
The T51XW is supplied with a grounded power cable.
Use only with a compatible grounded power outlet.
i
tecnipesaje@tecnipesaje.com
Calidad & Servicio, Razones de Peso
™

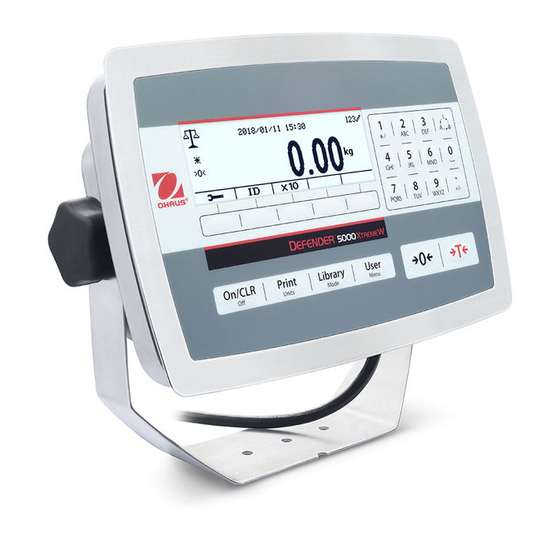

Defender
™
Defender
5000 (with T51 Indicators)
tecnipesaje@outlook.com
5000
