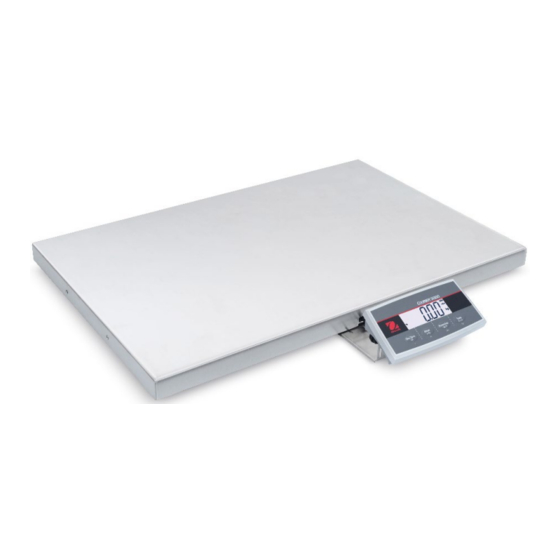

  • Page 1 Courier 5000 Instruction Manual Mode d’emploi Bedienungsanleitung Manuale di istruzioni Manual de Instrucciones...
  • Page 3 REVISION HISTORY Date Version Description Initial release March 2, 2023 Updated the company address in back cover and FCC page July 6, 2023...

  • Page 5: Table Of Contents

    TECHNICAL DATA ..........................27 Specifications ............................27 Drawings and Dimensions ........................28 Table of GEO Code Values ........................29 COMPLIANCE ............................30 APPENDICES ............................32 10.1 MT Standard Continuous Output ......................32 10.2 OHAUS Commands ..........................34 10.3 OH-Continuous Print ..........................35...

  • Page 6: Introduction

    Any other type of use and operation beyond the limits of technical specifications, without written consent from OHAUS, is considered as not intended. This instrument complies with current industry standards and the recognized safety regulations;...

  • Page 7: Overview Of Controls

    Item Description Item Description Front housing USB Type-C connector Control panel Load cell cable connector 1.4. Control Functions Figure 1-2 Courier 5000 Control Panel Button Primary Function On/Zero Print Function Tare (Short Press) If the scale is off, short If enabled, the...
  • Page 8 EN-4 Courier 5000 Figure 1-3 Display Item Description Item Description Net weight symbol Pound, Ounce, Pound: Ounce symbols Preset Tare symbol Kilogram, gram symbols Negative symbol Dynamic Weighing / Display Hold mode symbol Stable weight symbol Center of Zero symbol...

  • Page 9: Installation

    Remove the foam blocks. Foam Take the Courier 5000 scale base out of the box and put Blocks it on a stable surface. Connect the terminal to the scale base with the load cell cable.

  • Page 10: Pc Connection

    EN-6 Courier 5000 AC Adapter Power Use the Type-A end of the USB cable to connect to the AC adapter. AC adapter Use the other side of the USB cable to connect to the terminal. Plug the AC Adapter into the electrical outlet.

  • Page 11: Direct Wall Mounting

    Courier 5000 EN-7 2.3.4 Direct Wall Mounting The terminal may be mounted directly to a wall or table using two screws (not included). Select appropriate size screws that fit into the holes at the bottom of the terminal housing. See Figure A. When mounting to a wall without a solid backing, use appropriate anchoring hardware.

  • Page 12: Operation

    EN-8 Courier 5000 3. OPERATION Turning On/Off the Scale To turn on the scale, press the On button. The scale performs a display test, and momentarily displays the software version, the GEO value and then enters the last active weighing mode.

  • Page 13: Totalization

    Courier 5000 EN-9 3.5.2 Totalization This application is used to accumulate multiple weights manually or automatically. Statistical data (the number of samples, the total weight, the average weight, the minimum weight, the maximum weight and the difference in weight) is stored in memory for review and printing.

  • Page 14: Dynamic Weighing / Display Hold

    EN-10 Courier 5000 Printing Totalization Results and Format tABLE Refer to the steps below, you can enable the Table on ( ) option in the menu. mM.E.N.U Long press the Menu button until you see C.A.L Release the Menu button and .
  • Page 15 Courier 5000 EN-11 Starting the Dynamic Weighing/Display Hold Mode: dyNa Long press the button Function Mode until appears on the display. rEAdY Release the button Function Mode, and appears on the display. Put the load on the platform. • If the operation type is manual, you must press the Function button to start the averaging process.

  • Page 16: Weight Alert

    EN-12 Courier 5000 3.5.4 Weight Alert This application is used to judge if the weight of the item is within the target limit. There are 2 limit values for setting, the limit 1 is normally on as default. Setting the Limit Values...

  • Page 17: Menu Settings

    Courier 5000 EN-13 4. MENU SETTINGS The User Menu allows the users to customize the scale settings. Menu Navigation 4.1.1 User Menu C.A.L S.E.t r.E.A.d mM.O. U.N.I.t U.S.B P.r.N.t l.O.C.k E.N. ZErO reset reset reset reset reset reset reset SpaN PwWr.

  • Page 18: Calibration Menu

    EN-14 Courier 5000 Calibration Menu C.A.L. The scale can be calibrated using the calibration menu Changing the Calibration Unit The calibration unit is consistent with the current unit. Steps: In the weighing mode, long press the Units key. At this time, the screen will display a continuous series of units.

  • Page 19: Linearity Calibration

    Courier 5000 EN-15 NOTE: CAL E • If the scale does not perform the calibration successfully, is displayed for 3 seconds and the previous calibration data is restored. CAL E • After waiting for 40 seconds, if the scale still fails to perform the calibration, is displayed for 3 seconds, and the previous calibration data is restored.

  • Page 20: Setup Menu

    EN-16 Courier 5000 Setup Menu S.E.t You can set the scale parameters with the menu . Default settings are in bold. Sub-Menu Menu Sub-Menu Options Options (in segment) (in segment) reset NO, yes Reset no, yes Setup PwWr.U AUtO, Auto, g, kg, lb, oz, lb:oz...
  • Page 21 Courier 5000 EN-17 = zero range is within +/-2% 100% = zero range is within +/-100% Filter Set the amount of signal filtering. LOwW = faster stabilization time with less stability. mMEd = normal stabilization time with normal stability. HIGH = slower stabilization time with more stability.

  • Page 22: Unit Menu

    EN-18 Courier 5000 Unit Menu U.N.I.t You can activate the desired units with the menu Reset Gram (g) Kilogram (kg) Pound (lb) Ounce (oz) Pound:Ounce (lb:oz) NOTE: Available units vary by model. In addition, due to national laws, the scale may not include some of the units listed.

  • Page 23: Print Menu

    Courier 5000 EN-19 Alternate Print command Set the alternate command character for Print. Settings of A (a) to Z (z) are available. The default setting is P. Alternate Tare command Set the alternate command character for Tare. Settings of A(a) to Z(z) are available. The default setting is T.
  • Page 24 If OH-Continuous is selected, the print output will be in the OH-Continuous format. NOTE: Refer to 10.3 OH-Continuous Print for OH-Continuous format. OH.CON = printing occurs continuously. Courier 5000 scale can be compatible with UPS WorldShip software when UPS is selected. Mode Set the printing conditions. LOad = prints when the displayed load is stable.

  • Page 25: Selecting The Print Content

    4.7.1 Selecting the Print Content The terminal can be connected to a PC via the USB cable and run the OHAUS ScaleMate software on the In ScaleMate, there is a window to select the print content (Result, Gross, Net, Tare, Header, Footer, Mode, Unit and Info).

  • Page 26: Lock Button Configuration

    EN-22 Courier 5000 Lock Button Configuration L.O.C.k This menu is used to lock access to the certain buttons. When you select ON for one selection, the associated button press will be ignored. If you select Lock All Keys, you will lose function of all buttons.

  • Page 27: Communication

    WorldShip are using the same weighing unit (kg, lb or oz). Click Apply button to save the selections. Click OK button to close the System Preferences Editor window, Courier 5000 is ready for UPS weight processing.

  • Page 28: Interface Protocols

    EN-24 Courier 5000 Interface Protocols 5.3.1 UPS Protocol 3835 Protocol Request displayed weight Command: W <CR>(57h, 0dh) over capacity <LF> <U> <U> <CR> <H1> <H2> <ETX> (invalid data) under capacity <LF> <U> <U> <CR> <H1> <H2> <ETX> (-20d) in Ib/oz/kg/g <LF>...

  • Page 29: Maintenance

    6. MAINTENANCE Cleaning For Courier 5000, the housing may be cleaned with a cloth dampened with a mild detergent if necessary. CAUTION: DISCONNECT THE UNIT FROM THE POWER SUPPLY BEFORE CLEANING. WARNING: Electric Shock Hazard. Disconnect the equipment from the power supply before cleaning.

  • Page 30: Accessory

    EN-26 Courier 5000 7. ACCESSORY Remote Column Kit...

  • Page 31: Technical Data

    Courier 5000 EN-27 8. TECHNICAL DATA Specifications Equipment Ratings: Indoor use only Altitude: 2,000m/6,562ft Operating temperature: -10℃ to 40℃ (14℉ to 104℉) Humidity: Maximum relative humidity 80% for temperatures up to 31℃ (87.8℉) decreasing linearly to 50% relative humidity at 40℃ (104℉).

  • Page 32: Drawings And Dimensions

    EN-28 Courier 5000 Drawings and Dimensions Terminal Dimensions—All Models 43.9mm 1.73in 104.6mm / 4.12in 204.9mm / 8.07in Name Scale Dimension (mm / inch) 329mm 129.4mm 12.95in i-C52MxR 5.09in 43.5mm 1.71in 319mm/12.56in 527mm / 20.75in 400mm/15.75in 520mm 131.9mm i-C52MxL 20.47in 5.19in 52.9mm...

  • Page 33: Table Of Geo Code Values

    Courier 5000 EN-29 Table of GEO Code Values Table 8-2 GEO Codes Elevation in meters 1300 1625 1950 2275 2600 2925 3250 1300 1625 1950 2275 2600 2925 3250 3575 Elevation in feet 1060 2130 3200 4260 5330 6400 7460...

  • Page 34: Compliance

    This product complies with the EU Directive 2012/19/EU (WEEE) and 2006/66/EC (Batteries). Please dispose of this product in accordance with local regulations at the collecting point specified for electrical and electronic equipment. For disposal instructions in Europe, refer to www.ohaus.com/weee. EN 61326-1 ISED Canada Compliance Statement:...
  • Page 35 Unintentional Radiator per 47CFR Part B Trade Name: OHAUS CORPORATION Model or Family identification: i-C52Mxxxx Party issuing Supplier’s Declaration of Conformity: Ohaus Instruments (Changzhou) Co., Ltd. Building C, No. 6 Zhengqiang Road, Xuejia Town, Xinbei District, Changzhou Jiangsu 213022 China Phone: +86 519 85287270 Responsible Party –...

  • Page 36: Appendices

    Non-significant weight data and tare data digits are transmitted as spaces. The continuous output mode provides compatibility with OHAUS products that require real-time weight data. the standard continuous output. Table 10-1 shows the format for the standard continuous output.
  • Page 37 Courier 5000 EN-33 Table 10-4: Status Byte C Bit Definitions Bits 2, 1, and 0 Weight Description lb or kg, selected by Status Byte B, bit 4 grams (g) ounces (oz) not used not used tons (ton) no units Bit 3...

  • Page 38: Ohaus Commands

    EN-34 Courier 5000 10.2 OHAUS Commands Commands listed in the following table will be acknowledged by the scale. The scale will return “ES” for invalid commands. Please add \r\n after each command to send（\r refers to \return; \n refers to \newline)

  • Page 39: Oh-Continuous Print

    OHAUS products are warranted against defects in materials and workmanship from the date of delivery through the duration of the warranty period. During the warranty period OHAUS will repair, or, at its option, replace any component(s) that proves to be defective at no charge, provided that the product is returned, freight prepaid, to OHAUS.
