AFi HB-RCM Assembly Instructions

instructions carefully and familiarize yourself with the different parts.
please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726
PARTS LIST

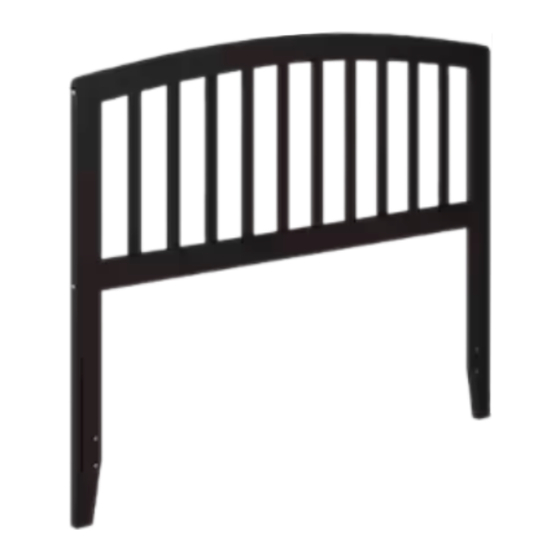

1 HEADBOARD PANEL 1 PC
2 LEFT LEG 1 PC
3 RIGHT LEG 1 PC
4 WOOD DOWELS 4 PCS
(Factory Installed)
5 PACKING STICK 2 PCS
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.

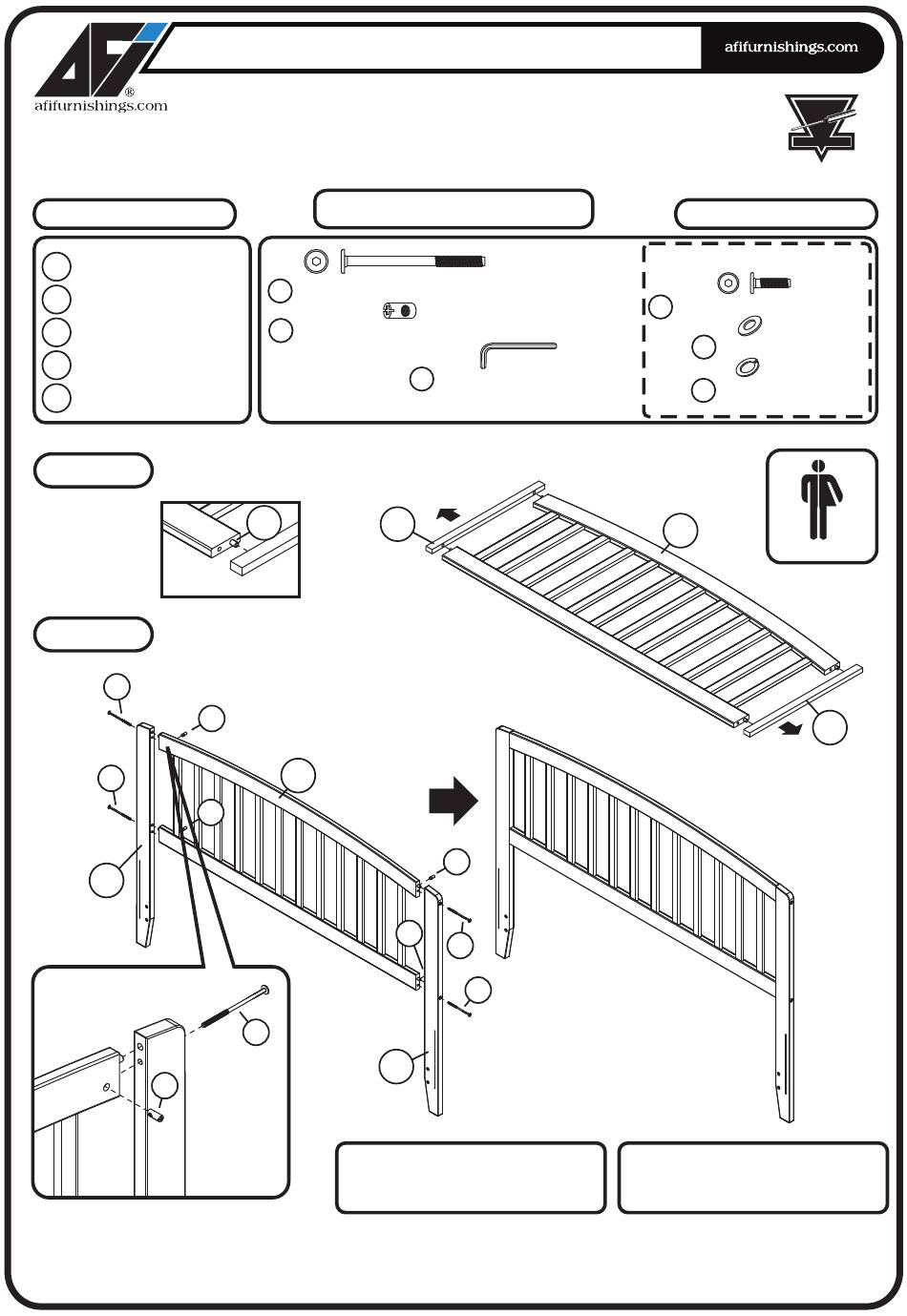

Step 1
Remove packing stick (5) from headboard panel (1) and
Attach the legs (2) and (3) to headboard panel (1),
Step 2
using JCB (A) and barrel nut (B).
Tighten with the Allen wrench (F).
A
B
A
B
2
BACK VIEW
B
If you purchased a wood headboard to attach to metal bed frame, please refer to page 2.
HEADBOARD
ASSEMBLY INSTRUCTIONS
Before assembling your headboard, please read through these
ATTENTION! If you receive a damaged or defective item,
Instructions apply for bed sizes
A JCB M6 X 110mm (4 3/8") - 4 pcs
B Barrel nut - 4 pcs
Spare - 1 pc
4
5
1
A
3
CODE
HB-RCM
TWIN > FULL
Spare - 1 pc
Allen wrench - 1pc
F
Spare - 1pc
DISCARD
B
B
A
A
ITEM ITEM
R-28882X R-28883X
ASSEMBLE
HARDWARE
HARDWARE FOR METAL BED FRAME
C
JCB M6 X 25mm (1") - 4 pcs
Spare - 1 pc
Flat washer - 4 pcs
D
Spare - 1 pc
E Split washer - 4 pcs
Spare - 1 pc
.
1
Adult assembly Adult assembly
PO :
Page 1 of 2
READY
TO
5
