- Page 1 User Guide BE9300 Wi-Fi 7 Bluetooth PCIe Adapter Archer TBE552E © 2024 TP-Link REV1.0.0 1910013664...
-
Page 2: Table Of Contents
Contents About This Guide Chapter 1 Get to Know About Your Adapter Chapter 2 Connect to a Computer Chapter 3 Use Your Adapter 3. 1. Install Drivers............11 3. -
Page 3: About This Guide
Bandwidth, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO, and BSS Color requires the AP and PC OS to also support the corresponding features. Certain features of Archer TBE552E, such as Bluetooth 5.4, may be restricted on some computing systems § and platforms. Please try to update the device’s driver for feature compatibility. - Page 4 • The Quick Installation Guide (QIG) can be found where you find this guide or inside the package of the product. • Specifications can be found on the product page at https://www.tp-link.com. • A TP-Link Community is provided for you to discuss our products at https://community.tp-link.com.
-
Page 5: Chapter 1 Get To Know About Your Adapter

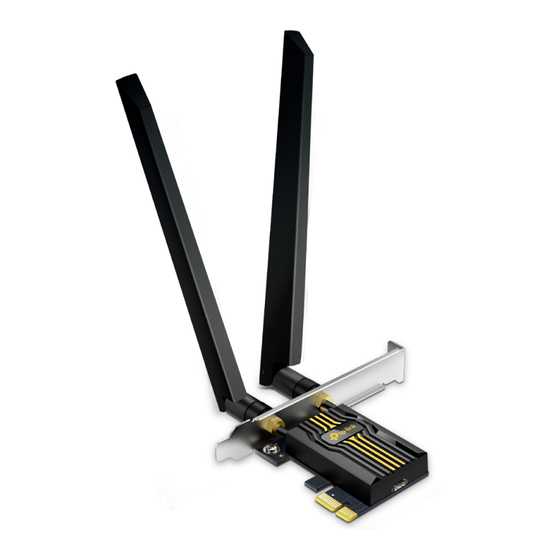

Chapter Get to Know About Your Adapter This chapter introduces the detail of the adapter. - Page 6 Chapter 1 Get to Know about Your Adapter Archer TBE552E Wi-Fi 7 unlocks the full potential of the 6 GHz band, providing exceptional bandwidth and congestion-free channels exclusive to your desktop. Enhanced by 4K-QAM and 320 MHz, TBE552E delivers astonishing wireless speeds, facilitating instant multi-stream media playback.
-
Page 7: Chapter 2 Connect To A Computer
Chapter Connect to a Computer This chapter introduces how to connect the adapter to your computer. Please note that images are for demonstration only. - Page 8 Chapter 2 Connect to a Computer Turn off your computer, unplug the power cable then remove the case panel. 2. Connect the provided Bluetooth USB cable to the adapter. Adapter Bluetooth USB Cable 3. Locate an available PCIE slot ( X1, X4, X8, or X16) and carefully insert the adapter. Tip: If the bracket is not suitable for your computer, detach it from the adapter’s board and replace it with the low-profile bracket.
- Page 9 Chapter 2 Connect to a Computer 4. Locate an available F_USB connector and carefully plug the Bluetooth USB cable into it. Note: If the Bluetooth USB cable is not correctly connected to the motherboard, Bluetooth function won’t work even after driver installation. 5.
-
Page 10: Chapter 3 Use Your Adapter
Chapter Use Your Adapter This chapter introduces how to install or uninstall your adapter’s Wi-Fi and Bluetooth drivers, connect to a wireless network, and pair with a Bluetooth device on a Windows 11 (64-bit) system. This chapter includes the following sections: •... -
Page 11: Install Drivers
Insert the CD into your computer and go to My Computer or This PC to run the Autorun.exe. Note: You can also check the new release and download the driver at https://www.tp-link.com/support/download/ Install the Wi-Fi and Bluetooth drivers. Note: DO NOT install the Bluetooth and Wi-Fi drivers simultaneously. If one driver is being installed, please wait until it is finished, then install the other driver. -
Page 12: Join A Wireless Network
Chapter 3 Use Your Adapter • Bluetooth: Click and follow the on-screen instructions to complete the Bluetooth installation. Note: • To check if the drivers are installed successfully or not , refer to How to check if I have installed the drivers successfully or not? •... -
Page 13: Uninstall Drivers
Use Your Adapter Uninstall Drivers • Uninstall Wi-Fi driver Go to Start > Apps, find the Wi-Fi driver TP-Link Archer TBE552E 1.0 WiFi Driver. Click on it and select Uninstall, then follow the on-screen instructions to complete the uninstallation. • Uninstall Bluetooth driver Go to Start >... -
Page 14: Appendix: Troubleshooting
Support page at https://www.tp-link.com T2 How to check if I have installed the drivers successfully or not? Please follow these steps to check if you installed the driver for your TP-Link adapter successfully: • Step 1. Right-click My Computer or This PC on your computer and select Manage. - Page 15 X is the hardware version of the adapter. T6 How do I update my operating system? • Refer to the official website to download Win 11: https://www.microsoft.com/software-download/windows11/ For more detailed instructions: • Can’t find or connect to the wireless networks: https://www.tp-link.com/faq-2253.html • Can’t install the driver: https://www.tp-link.com/faq-2252.html...
- Page 16 FCC STATEMENT Product Name: BE9300 Wi-Fi 7 Bluetooth PCIe Adapter Model Number: Archer TBE552E Responsible party: TP-Link USA Corporation Address: 10 Mauchly, Irvine, CA 92618 Website: http://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: sales.usa@tp-link.com This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 17 Operation of transmitters in the 5.925-7.125 GHz band is prohibited for control of or communications with unmanned aircraft systems. We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15.
- Page 18 5745MHz-5825MHz (24dBm) 5945MHz-6425MHz (20dBm) EU declaration of conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2011 /65/EU and (EU) 2015/863. The original EU declaration of conformity may be found at https://www.tp-link.com/en/support/ce/...
- Page 19 The device complies with RF specifications when the device used at 20 cm from your body. Frequency band: 5150 - 5250 MHz: Indoor use: Inside buildings only. Installations and use inside road vehicles and train carriages are not permitted. Limited outdoor use: If used outdoors, equipment shall not be attached to a fixed installation or to the external body of road vehicles, a fixed infrastructure or a fixed outdoor antenna.
- Page 20 2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This radio transmitter (IC: 31152-TBE552E/ Model: Archer TBE552E) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain indicated.
- Page 21 2 ) Le gain maximal d’antenne permis pour les dispositifs avec antenne(s) amovible(s) utilisant les bandes 5250-5350 MHz et 5470-5725 MHz doit se conformer à la limitation P.I.R.E.; 3 ) Le gain maximal d’antenne permis pour les dispositifs avec antenne(s) amovible(s) utilisant la bande 5725-5850 MHz doit se conformer à...
- Page 22 • 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。 • 注意防潮，請勿將水或其他液體潑灑到本產品上。 • 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋 開口。 • 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位 置中。 • 請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此項 工作。 限用物質含有情況標示聲明書 Equipment name 設備名稱：BE9300 Wi-Fi 7 Bluetooth PCIe 型號（型式）：Archer TBE552E Adapter 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 Unit 六價鉻 多溴聯苯 多溴二苯醚 鉛 汞 鎘 Cadmium...
- Page 23 Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що передбачені чинними законодавчими актами України. Safety Information • Keep the device away from water, fire, humidity or hot environments. • Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
- Page 24 Alternating current Direct current Polarity of d.c. power connector Indoor use only Dangerous voltage Caution, risk of electric shock Energy efficiency Marking Protective earth Earth Frame or chassis Functional earthing Caution, hot surface Caution Operator’s manual Stand-by “ON”/”OFF” (push-push) Fuse Fuse is used in neutral N...
- Page 25 RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment. User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.
