TP-Link TC-7610 User Manual

Docsis 3.0
Hide thumbs Also See for TC-7610:
Table of Contents

Advertisement

Quick Links

See also: User Manual

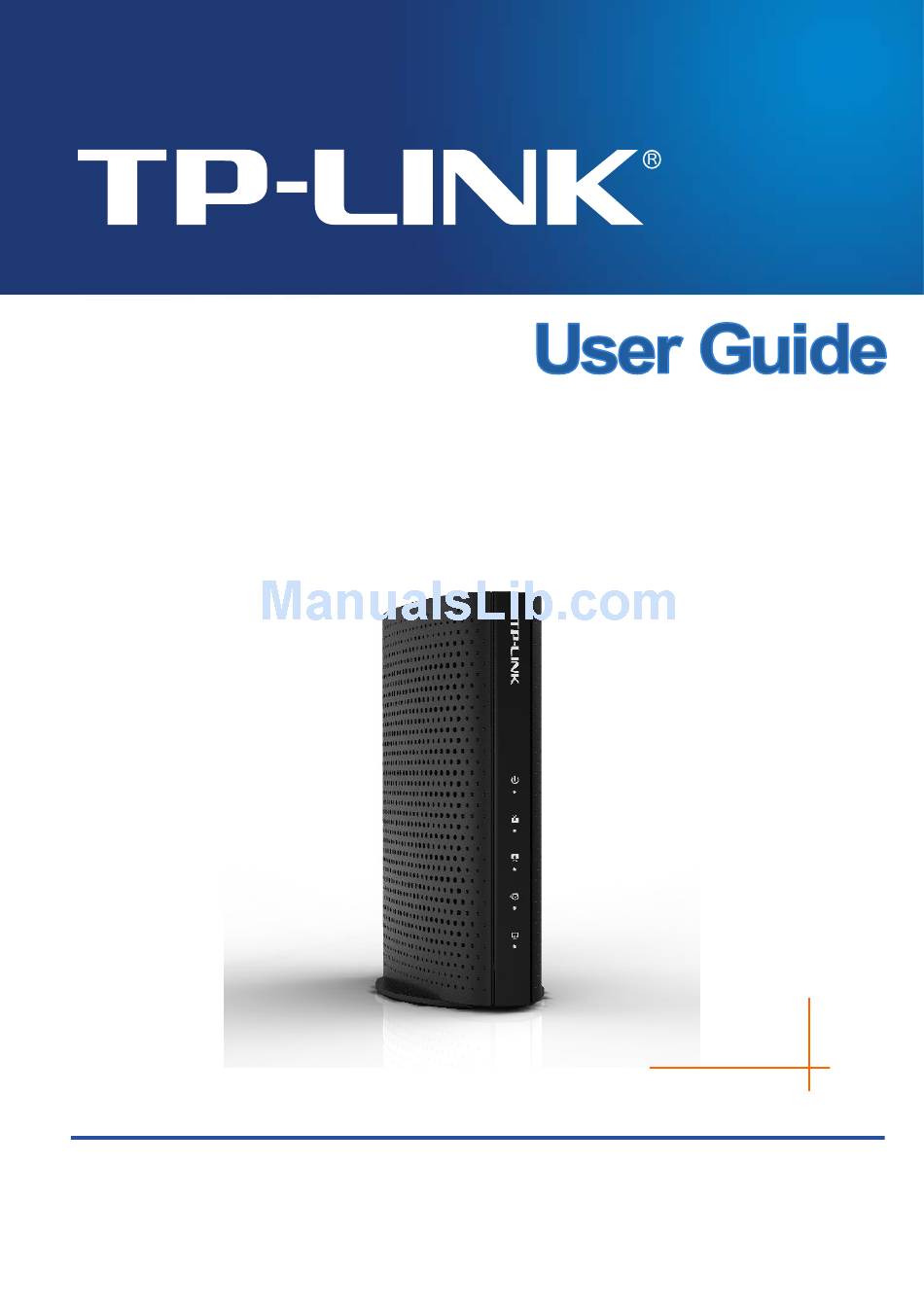

TC-7610
DOCSIS 3.0 Cable Modem
REV1.0.0
1910011606

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC-7610 and is the answer not in the manual?

Questions and answers

Related Manuals for TP-Link TC-7610

Summary of Contents for TP-Link TC-7610

  • Page 1 TC-7610 DOCSIS 3.0 Cable Modem REV1.0.0 1910011606...
  • Page 2 Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.

  • Page 3: Ce Mark Warning

    CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних...
  • Page 4 RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment. User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.

  • Page 5: Declaration Of Conformity

    TP-LINK TECHNOLOGIES CO., LTD DECLARATION OF CONFORMITY For the following equipment: Product Description: DOCSIS 3.0 Cable Modem Model No.: TC-7610 Trademark: TP-LINK We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives: Directives 2004/108/EC, Directives 2006/95/EC, Directives 2011/65/EU, Directives 2009 /125 /EC The above product is in conformity with the following standards or other normative documents：...

  • Page 6: Table Of Contents

    CONTENTS Package Contents ....................1   Chapter 1. Introduction ..................2     1.1   Product Overview ...................... 2   1.2   Main Features ......................2   1.3   Conventions ......................2   Chapter 2. Hardware Installation ................. 3    ...

  • Page 7: Package Contents

    DOCSIS 3.0 Cable Modem User Guide Package Contents The following items should be found in your package: One TC-7610 DOCSIS 3.0 Cable Modem   One Power Adapter for TC-7610 DOCSIS 3.0 Cable Modem  Quick Installation Guide  One RJ45 cable  Note: Make sure that the package contains the above items.

  • Page 8: Chapter 1. Introduction

    Quick and hassle free installation 1.3 Conventions The Modem or device mentioned in this User Guide stands for TC-7610 without any explanations. Parameters provided in the pictures are just references for setting up the product, which may differ from the actual situation.

  • Page 9: Chapter 2. Hardware Installation

    TC-7610 DOCSIS 3.0 Cable Modem User Guide Chapter 2. Hardware Installation 2.1 The Front Panel The modem’s LEDs are located on the side panel (View from top to bottom). They indicate the device’s working status. For details, please refer to LEDs Explanation.

  • Page 10: The Back Panel

    TC-7610 DOCSIS 3.0 Cable Modem User Guide The initialization is not started, or has failed. White The modem is synchronized with one channel. Green The modem is synchronized with more than one channel. (Upstream) Flashing The modem is scanning for an upstream channel.

  • Page 11: Installation Environment

    TC-7610 DOCSIS 3.0 Cable Modem User Guide  Reset: With the modem powered on, use a pin to press and hold the Reset button for at least 8-10 seconds. And the modem will reboot to its factory default settings. ...

  • Page 12: Chapter 3. Connecting The Modem

    TC-7610 DOCSIS 3.0 Cable Modem User Guide Chapter 3. Connecting the Modem 3.1 System Requirements  Broadband Internet Access Service (Cable).  PCs with a working Ethernet Adapter and an Ethernet cable with RJ45 connectors.  TCP/IP protocol on each PC.

  • Page 13: Chapter 4. Software Configuration

    Web-based Utility. 4.1 TCP/IP Configuration The default IP address of the TC-7610 DOCSIS 3.0 Cable Modem is 192.168.100.1. And the default Subnet Mask is 255.255.255.0. we use all the default values for description. Connect the local PC to the LAN port of the modem. And then you can configure your PC in the following way.

  • Page 14: Login

    TC-7610 DOCSIS 3.0 Cable Modem User Guide You can check it following the steps below: Is the connection between your PC and the modem correct? The LEDs of LAN port which you link to the device and the LEDs on your PC's adapter should be lit.

  • Page 15: Status

    TC-7610 DOCSIS 3.0 Cable Modem User Guide 4.3 Status There are four submenus under the Status menu, Connection, Software, Security and Event Log. Click any of them, and you will be able to configure the corresponding function. 4.3.1 Connection you can see the information of startup procedure, Choose menu “Status →...

  • Page 16: Software

    TC-7610 DOCSIS 3.0 Cable Modem User Guide 4.3.2 Software you can see the device information and system Choose menu “Status → Software”, information 4.3.3 Security you can see the screen below Choose menu “Status → Security”, . Here you can set a new password to log in the modem’s web-based management page.

  • Page 17: Chapter 5. Logout

    TC-7610 DOCSIS 3.0 Cable Modem User Guide Chapter 5. Logout Choose “Logout” and click Back to Login, and you will back to the login screen.

  • Page 18: Appendix A: Specifications

    TC-7610 DOCSIS 3.0 Cable Modem User Guide Appendix A: Specifications Specification Product Description DOCSIS 3.0 Cable Modem Physical Specifications 1 F‐Connector (female 75 Ω) Interface 1 10/100/1000 Mbps Ethernet Interface (RJ45) 1 Power Jack Button 1 Reset Button DOCSIS Features Standards DOCSIS 3.0, EuroDOCSIS 3.0 Capture Bandwidth Full Band Capture windows MoCA Reject Filter Internal MoCA Reject Filter Downstream Channel Bonding Up to 8 Maximum Data Rate Up to 445 Mbps Level Tolerance 10dBmV Bonded Channel RF Input Impedance 75 Ω Frequency Range...
  • Page 19 TC-7610 DOCSIS 3.0 Cable Modem User Guide Network: IP, ICMP, ARP Protocol Support Transport: TCP, UDP Application: SNMP (v1, 2c and 3), TFTP,DHCP, ToD Power Input 12VDC/1A Operating 32 °F to 104 °F (0 °C to 40 °C) Temperature Storage –22 °F to 158 °F (–30 °C to 70 °C) Environment Temperature Operating Humidity 5 to 95% R.H. (non‐condensing Storage Humidity 5%~95% non‐condensing...

  • Page 20: Appendix B: Troubleshooting

    TC-7610 DOCSIS 3.0 Cable Modem User Guide Appendix B: Troubleshooting T1. What can I do if I cannot access the Internet? 1) Make sure that all cables are connected properly and securely to the modem. 2) Contact your ISP to verify the modem is activated. If the modem is not activated, your ISP will activate it for you.
  • Page 21 TC-7610 DOCSIS 3.0 Cable Modem User Guide T5. How can I reset the password to the cable modem's web interface? If you have changed the password and have forgotten it, you must restore the cable modem to the factory defaults. This will reset the password back to admin.

  • Page 22: Appendix C: Configure The Pc

    TC-7610 DOCSIS 3.0 Cable Modem User Guide Appendix C: Configure the PC In this section, we’ll introduce how to install and configure the TCP/IP correctly in Windows 7. First make sure your Ethernet Adapter is working, refer to the adapter’s manual if needed.
  • Page 23 TC-7610 DOCSIS 3.0 Cable Modem User Guide Select Obtain an IP address automatically and Obtain DNS server address automatically. Click OK to save the settings.
