TP-Link TD-8816 User Manual

Adsl2+ modem router
Hide thumbs Also See for TD-8816:
Table of Contents

Advertisement

Quick Links

Download this manual

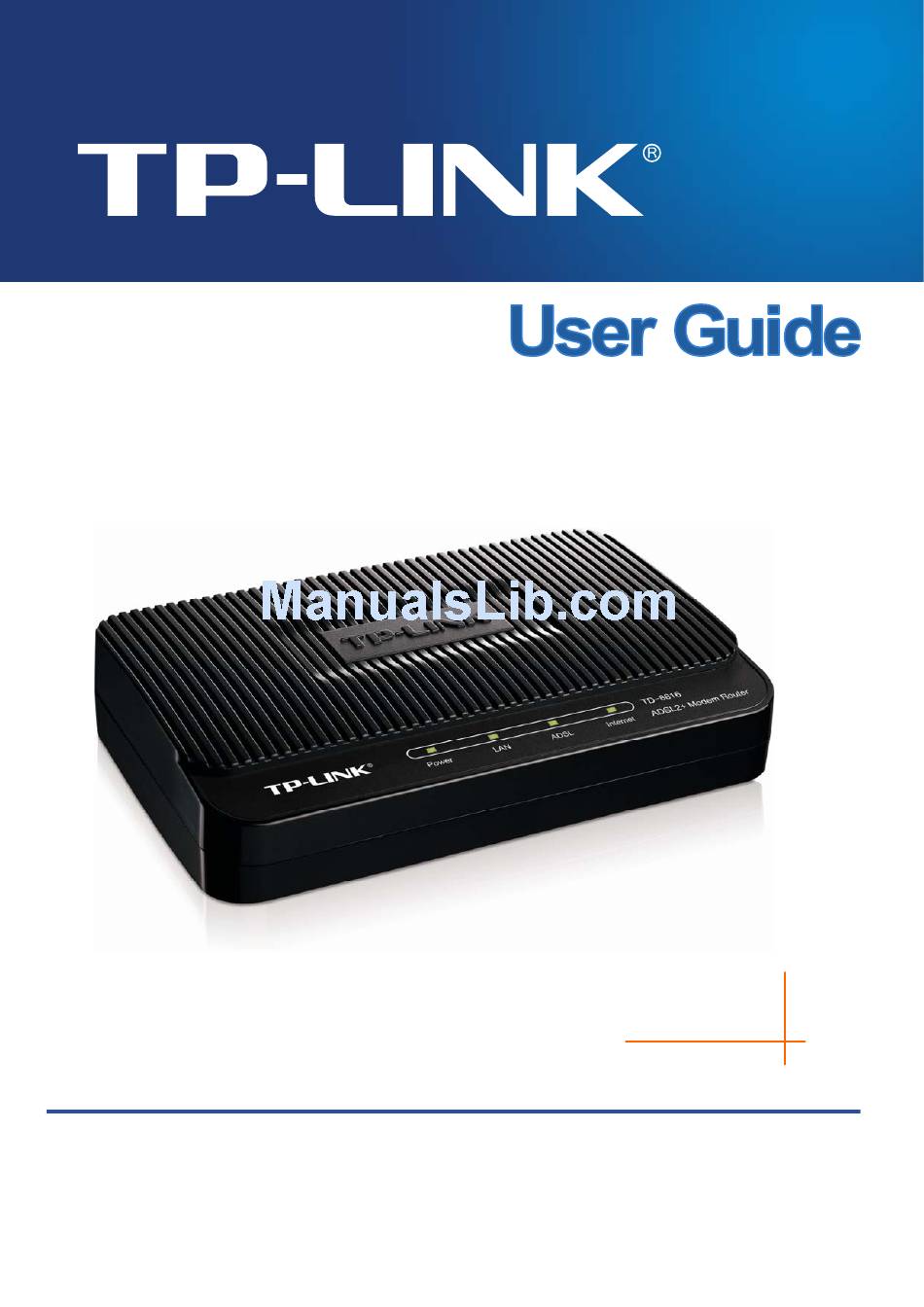

TD-8816
ADSL2+ Modem Router
Rev:3.1.0
1910010870

Advertisement

Table of Contents
loading

Related Manuals for TP-Link TD-8816

Summary of Contents for TP-Link TD-8816

  • Page 1 TD-8816 ADSL2+ Modem Router Rev:3.1.0 1910010870...
  • Page 2 Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.

  • Page 3: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: Safety Information

    Safety Information When product has power button, the power button is one of the way to shut off the product;  when there is no power button, the only way to completely shut off power is to disconnect the product or the power adapter from the power source. Don’t disassemble the product, or make repairs yourself.

  • Page 5: Declaration Of Conformity

    DECLARATION OF CONFORMITY For the following equipment: Product Description: ADSL2+ Modem Router Model No.: TD-8816 Trademark: TP-LINK We declare under our own responsibility that the above products satisfy all the technical regulations applicable to the product within the scope of Council Directives:...

  • Page 6: Table Of Contents

    CONTENTS Package Contents ....................1 Chapter 1. Introduction ..................2 Product Overview ...................... 2 Main Features ......................2 Conventions ......................3 Chapter 2. Hardware Installation ................. 4 The Front Panel ......................4 The Back Panel......................5 Installation Environment .................... 5 Connecting the Router ....................
  • Page 7 4.5.6 CWMP ..........................50 Maintenance......................51 4.6.1 Administration.........................51 4.6.2 Time Zone ........................52 4.6.3 Firmware.........................53 4.6.4 SysRestart........................55 4.6.5 Diagnostics........................56 Help......................... 56 AppendixA: Specifications..................58 Appendix B: Configuring the PC................59 Appendix C: Troubleshooting................63 Appendix D: Technical Support ................66...

  • Page 8: Package Contents

    ADSL2+ Modem Router User Guide Package Contents The following items should be found in your package:  One TD-8816 ADSL2+ Modem Router  One Power Adapter for TD-8816 ADSL2+ Modem Router  Quick Installation Guide  One RJ45 cable ...

  • Page 9: Chapter 1. Introduction

    The device is designed to provide a simple and cost-effective ADSL Internet connection for a private Ethernet network. The Modem Router is easy to use. Connect the TD-8816 to an Ethernet LAN or computers via standard Ethernet ports. The ADSL connection is made using ordinary telephone line with standard connectors.

  • Page 10: Conventions

     Supports firmware upgrade and Web management. 1.3 Conventions The Modem Router or device mentioned in this User Guide stands for TD-8816 without any explanations. Parameters provided in the pictures are just references for setting up the product, which may...

  • Page 11: Chapter 2. Hardware Installation

    TD-8816 ADSL2+ Modem Router User Guide Chapter 2. Hardware Installation 2.1 The Front Panel Figure 2-1 The LEDs locate on the front panel, which indicate the device’s working status. For details, please refer to LED Explanation. LED Explanation: Name Status Indication The modem router is powered on.

  • Page 12: The Back Panel

    Make sure the cables and power cord are placed safely out of the way so they do not create a tripping hazard. The modem router can be placed on a shelf or desktop.  Generally,TD-8816 is placed on a horizontal surface. The device also can be mounted on the wall as shown in Figure 2-4 Wall-mount Install.

  • Page 13: Connecting The Router

    Method one: Plug one end of the twisted-pair ADSL cable into the ADSL port on the rear panel of TD-8816, and insert the other end into the wall socket. Method two：You can use a separate splitter. External splitter can divide the data and voice, and then you can access the Internet and make calls at the same time.
  • Page 14 Step 3: Attach the power adapter. Connect the power adapter to the POWER connector on the rear of the device and plug in the adapter to a wall outlet or power extension. Step 4: Turn on the TD-8816 and power on the computers and LAN devices. Figure 2-5...

  • Page 15: Chapter 3. Quick Installation Guide

    Chapter 3. Quick Installation Guide 3.1 TCP/IP Configuration The default IP address of the TD-8816 ADSL2+ Modem Router is 192.168.1.1. And the default Subnet Mask is 255.255.255.0. These values can be changed as you desire. In this guide, we use all the default values for description.

  • Page 16: Login

    TD-8816 ADSL2+ Modem Router User Guide Figure 3-2 You can check it following the steps below: Is the connection between your PC and the modem router correct? The LEDs of LAN port which you link to the device and the LEDs on your PC's adapter should be lit.
  • Page 17 TD-8816 ADSL2+ Modem Router User Guide Click the NEXT button. Figure 3-8 Step 2: Configure the time for the modem router, and then click the NEXT button. Figure 3-9 Step 3: Select the connection type to connect to the ISP (We select PPPoE/PPPoA mode for example here), and then click the NEXT button.
  • Page 18 TD-8816 ADSL2+ Modem Router User Guide Figure 3-11 Step 5: Click NEXT to finish the Quick Start. Figure 3-12...

  • Page 19: Chapter 4. Software Configuration

    TD-8816 ADSL2+ Modem Router User Guide Chapter 4. Software Configuration This User Guide recommends using the “Quick Installation Guide” for first-time installation. For advanced users, if you want to know more about this device and make use of its functions adequately, maybe you will get help from this chapter to configure the advanced settings through the Web-based Utility.

  • Page 20: System Log

    TD-8816 ADSL2+ Modem Router User Guide Figure 4-2 4.1.2 System Log Choose “Status→System Log” menu, and you will be able to query the logs of the Modem Router.

  • Page 21: Statistics

    TD-8816 ADSL2+ Modem Router User Guide Figure 4-3 The modem router can keep logs of all traffic. You can query the logs to find what happened to the modem router. Click the CLEAR LOG button to clear the logs. Click the SAVE LOG button to save the logs.
  • Page 22 TD-8816 ADSL2+ Modem Router User Guide  Select Ethernet, and you will see the statistics table as below. Statistics Table: Transmit Frames The frames transmitted over the Ethernet port. The multicast frames transmitted over the Ethernet Transmit Multicast Frames port.

  • Page 23: Quick Start

    TD-8816 ADSL2+ Modem Router User Guide 4.2 Quick Start Please refer to Login. 4.3 Interface Setup Choose “Interface Setup”, you can see the next submenus: Internet and LAN. Figure 4-5 Click any of them, and you will be able to configure the corresponding function.
  • Page 24 TD-8816 ADSL2+ Modem Router User Guide Figure 4-6 ATM VC: ATM settings are used to connect to your ISP. Your ISP provides VPI (Virtual Path  Identifier), VCI (Virtual Channel Identifier) settings to you. In this Device, you can totally setup 8 VCs on different encapsulations, if you apply 8 different virtual circuits from your ISP.
  • Page 25 TD-8816 ADSL2+ Modem Router User Guide  VCI: Identifies the virtual channel endpoints in an ATM network. The valid range is from 32 to 65535 (1 to 31 is reserved for well-known protocols). Please input the value provided by your ISP.
  • Page 26 TD-8816 ADSL2+ Modem Router User Guide  TCP MTU Option: Enter the TCP MTU as your desire. The default value is 1500.  IPv4 Address: If you select IPv4 as IP version, you should configure the following.  NAT: Select this option to Enable/Disable the NAT (Network Address Translation) function for this VC.
  • Page 27 TD-8816 ADSL2+ Modem Router User Guide Figure 4-8  Note: Each IP address entered in the fields must be in the appropriate IP form, which is four IP octets separated by a dot (x.x.x.x), such as 192.168.1.100. The Modem Router will not accept the IP address if it is not in this format.
  • Page 28 TD-8816 ADSL2+ Modem Router User Guide Figure 4-9  Service name: Specify a name for the PPPoA/PPPoE connection for recognition.  Username: Enter your username for your PPPoA/PPPoE connection to identify and verify your account to the ISP.  Password: Enter your password for your PPPoA/PPPoE connection.
  • Page 29 TD-8816 ADSL2+ Modem Router User Guide or given by your ISP. For Static IP, you need to specify the IP address, Subnet Mask and Gateway IP address.  Dual Stack Line: Enable the Dual Stack Lite( D-S Lite ) function if you need. It is disabled by default.
  • Page 30 TD-8816 ADSL2+ Modem Router User Guide Figure 4-11  IP Common Option: Configure the IP common option here.  Encapsulation: Select the encapsulation mode for the Dynamic IP Address, you can leave it default.  Bridge Interface: Activate the option, the modem router can also work in Bridge mode.
  • Page 31 TD-8816 ADSL2+ Modem Router User Guide Figure 4-12  Note: Each IP address entered in the fields must be in the appropriate IPv6 form, which is eight IP octets separated by a colon (x:x:x:x:x:x:x:x). The modem router will not accept the IP address if it is not in this format.
  • Page 32 TD-8816 ADSL2+ Modem Router User Guide Figure 4-13  Service name: Specify a name for the PPPoA/PPPoE connection for recognition.  Username: Enter your username for your PPPoA/PPPoE connection to identify and verify your account to the ISP.  Password: Enter your password for your PPPoA/PPPoE connection.

  • Page 33: Lan

    TD-8816 ADSL2+ Modem Router User Guide enable the function, please click Enable.  MLD Proxy: The MLD (Multicast Listener Discovery Protocol) Proxy function is disabled by default. If you want to enable the function, please click Enable.  Dual Stack Lite: Enable the Dual Stack Lite (D-S Lite) function if you need. It is disabled by default.
  • Page 34 TD-8816 ADSL2+ Modem Router User Guide Figure 4-15  Router Local IP: These are the IP settings of the LAN interface for the device. These settings may be referred to as Private settings. You may change the LAN IP address if needed.
  • Page 35 TD-8816 ADSL2+ Modem Router User Guide means the ADSL modem router will only accept but will not send RIP packet. OUT only means the ADSL modem router will only send but will not accept RIP packet.  Multicast: Select IGMP version, or disable the function. IGMP (Internet Group Multicast Protocol) is a session-layer protocol used to establish membership in a multicast group.
  • Page 36 TD-8816 ADSL2+ Modem Router User Guide secondary DNS IP to 0.0.0.0. If you want to use DNS relay, you can setup DNS server IP to 192.168.1.1 on their Computer. If not, the device will perform as no DNS relay. ...

  • Page 37: Advanced Setup

    TD-8816 ADSL2+ Modem Router User Guide 4.4 Advanced Setup Choose “Advanced Setup”, you can see the next submenus: Figure 4-18 Click any of them, and you will be able to configure the corresponding function. 4.4.1 Firewall Choose “Advanced Setup→Firewall” menu, and you will see the next screen (shown in Figure 4-19).

  • Page 38: Nat

    TD-8816 ADSL2+ Modem Router User Guide Figure 4-20 Click ADD ROUTE button to add a new route in the next screen (shown in Figure 4-21). Figure 4-21  Destination IP Address: This parameter specifies the IP network address of the final destination.
  • Page 39 TD-8816 ADSL2+ Modem Router User Guide Figure 4-22  Virtual Circuit: Select the Virtual Circuit Index that you plan to setup for the NAT function.  NAT Status: This field shows the current status of the NAT function for the current VC. You can go to the previous screen (shown in Figure 4-6) to activate the function.
  • Page 40 TD-8816 ADSL2+ Modem Router User Guide The Virtual Server is the server or server(s) behind NAT (on the LAN), for example, Web server or FTP server, that you can make visible to the outside world even though NAT makes your whole inside network appear as a single machine to the outside world.
  • Page 41 TD-8816 ADSL2+ Modem Router User Guide Click the BACK button to return to the previous screen. Click the CANCEL button to cancel the configuration which is made just now. 4.4.3.3. IP Address Mapping Choose “Advanced Setup→NAT→IP Address Mapping” in Figure 4-22, you can configure the Address Mapping Rule in the next screen.

  • Page 42: Qos

    TD-8816 ADSL2+ Modem Router User Guide  Public Start & End IP: Enter the public IP Address you want to do NAT. Public Start IP is the starting public IP address and Public End IP is the ending public IP address. If you have a dynamic IP, enter 0.0.0.0 as the Public Start IP.
  • Page 43 TD-8816 ADSL2+ Modem Router User Guide Figure 4-27  QoS: Select this option to Activate/Deactivate the QoS. Summary: Click the button to view the configurations of QoS.   Rule: Configure the rules for QoS. If the traffic complies with the rule, then the modem router will take the corresponding action to deal with it.
  • Page 44 TD-8816 ADSL2+ Modem Router User Guide Vlans.  IPP/DS Field: Select the type of the action to assign the priority. When you select IPP/TOS, you can assign the priority via IP information. IP QoS function is intended to deliver guaranteed as well as differentiated Internet services by giving network resource and usage control to the Network operator.

  • Page 45: Vlan

    TD-8816 ADSL2+ Modem Router User Guide will take the corresponding action to deal with it.  Rule Index: Select the index for the rule you want to configure.  Active: Activate the rule. The rule can take effect only when it is activated.
  • Page 46 TD-8816 ADSL2+ Modem Router User Guide Figure 4-30  VLAN Index: Select the VLAN index for this VC. You can specify 8 groups in maximum.  VLAN ID: This indicates the VLAN group.  ATM VCs: Select the ATM VCs as members of VLAN, and if you leave the Tagged blank, the tag in frames will be deleted when transmitted from the VC.

  • Page 47: Adsl

    TD-8816 ADSL2+ Modem Router User Guide 4.4.6 ADSL Choose “Advanced Setup→ADSL”, you can select the ADSL Type and ADSL Mode in the next screen. The ADSL feature can be selected when you meet the physical connection problem. Please check the proper settings with your Internet service provider.

  • Page 48: Filter

    TD-8816 ADSL2+ Modem Router User Guide Figure 4-34  ACL: If Activated, the IP addresses which are contained in the Access Control List can access to the modem router. If Deactivated, all IP addresses can access to the modem router.
  • Page 49 TD-8816 ADSL2+ Modem Router User Guide Figure 4-35  Filter Type Selection: Select the filter type for the next configuration. IP/MAC Filter Set Index: Select the Set index for the IP Filter entry. This index can match  with six IP / MAC Filter Rule Indexes.
  • Page 50 TD-8816 ADSL2+ Modem Router User Guide  Note: You should set the IP/MAC Filter Set Index and IP/MAC Filter Rule Index together to appoint the address (shown in the Filter List) for the IP Filter rule. For example, (1, 2), it means the rule will be shown in the row 2 for the matching with 1.
  • Page 51 TD-8816 ADSL2+ Modem Router User Guide  Note: If you want to make the rule take effect, please select Yes to active the rule. Step 3: Enter the “Source IP Address”, “Destination IP Address”, “Subnet Mask” and “Port Number” in the corresponding field.
  • Page 52 TD-8816 ADSL2+ Modem Router User Guide Figure 4-36  Rule Type: Select MAC for the MAC Filter rule.  Active: Select “Yes” to make the rule to take effect.  MAC Address: Enter the MAC address for the rule. ...
  • Page 53 TD-8816 ADSL2+ Modem Router User Guide  Note: If you want to make the rule take effect, please select Yes to active the rule. Step 3: Enter the “MAC Address” and select the Unmatched rule as “Next”. Step 4: Finally, click the SAVE to save the entry.
  • Page 54 TD-8816 ADSL2+ Modem Router User Guide Figure 4-37  Filter Type Selection: Select the Application Filter for the next configuration.  Application Filter: Activate or deactivate the function.  ICQ & MSN & YMSG & Real Audio/Video: Select Allow or Deny for these applications. If you select Allow, the modem router will accept the application;...

  • Page 55: Snmp

    TD-8816 ADSL2+ Modem Router User Guide Figure 4-38  Filter Type Selection: Select the URL Filter for the next configuration. Active: Select “Yes” to make the rule take effect.   URL Index: Select the index for the URL Filter entry.

  • Page 56: Upnp

    TD-8816 ADSL2+ Modem Router User Guide Figure 4-39 SNMP: Activate or deactivate the function.   Get Community: Select to set the password for the incoming Get requests from the management station.  Set Community: Select to set the password for incoming Set requests from the management station.

  • Page 57: Ddns

    TD-8816 ADSL2+ Modem Router User Guide 4.5.5 DDNS Choose “Access Management→DDNS”, you can configure the DDNS function in the screen (shown in Figure 4-41). The modem router offers a Dynamic Domain Name System (DDNS) feature. The feature lets you use a static host name with a dynamic IP address. Users should type the host name, user name and password assigned to your ADSL modem router by your Dynamic DNS provider.

  • Page 58: Maintenance

    TD-8816 ADSL2+ Modem Router User Guide Figure 4-42  CWMP: Select to activate the CWMP function.  URL: Enter the website of ACS which is provided by your ISP.  User Name/Password: Enter the user name and password to login the ACS server.

  • Page 59: Time Zone

    TD-8816 ADSL2+ Modem Router User Guide Figure 4-44  Note: There is only one account that can access Web-Management interface. The default account is "admin", and the default password is "admin". Admin has read/write access privilege. When you change the password, you should enter the new password twice, and then click SAVE to make the new password take effect.

  • Page 60: Firmware

    TD-8816 ADSL2+ Modem Router User Guide  Note: The ADSL modem router builds in some NTP Servers, when the modem router connects to the Internet, the modem router will get the system time automatically from the NTP Server. You can also configure the NTP Server address automatically, and then the modem router will get the time from the specific Server firstly.
  • Page 61 Figure 4-48 To upgrade the modem router's firmware, follow these instructions below: Step 1: Download a more recent firmware upgrade file from the TP-LINK website (www.tp-link.com). Step 2: Type the path and file name of the update file into the “New Firmware Location” field. Or click the Browse button to locate the update file.

  • Page 62: Sysrestart

    TD-8816 ADSL2+ Modem Router User Guide Figure 4-49 Step 2: Save the file as the appointed file (shown in Figure 4-50). TD-8816 Figure 4-50 To restore the modem router’s settings: Step 1: Click the Browse button to locate the update file for the device, or enter the exact path in “New Romfile Location”...

  • Page 63: Diagnostics

    TD-8816 ADSL2+ Modem Router User Guide Figure 4-51 4.6.5 Diagnostics Choose “Maintenance→Diagnostics”, you can view the test results for the connectivity of the physical layer and protocol layer for both LAN and WAN sides in the screen (shown in Figure 4-52).
  • Page 64 TD-8816 ADSL2+ Modem Router User Guide Figure 4-53  Note: Click the tab, and you will be able to get the corresponding information.

  • Page 65: Appendixa: Specifications

    TD-8816 ADSL2+ Modem Router User Guide AppendixA: Specifications General ANSI T1.413, ITU G.992.1, ITU G.992.2, ITU G.992.3, ITU G.992.5 Standards and Protocols IEEE 802.3, IEEE 802.3u, TCP/IP, PPPoA , PPPoE, SNTP, HTTP, DHCP, ICMP, NAT,CWMP Safety & Emission FCC, CE 1 10/100M Auto-Negotiation RJ45 port（Auto MDI/MDIX)

  • Page 66: Appendix B: Configuring The Pc

    TD-8816 ADSL2+ Modem Router User Guide Appendix B: Configuring the PC In this section, we’ll introduce how to install and configure the TCP/IP correctly in Windows XP. First make sure your Ethernet Adapter is working, refer to the adapter’s manual if necessary.
  • Page 67 TD-8816 ADSL2+ Modem Router User Guide Figure B-2 The following TCP/IP Properties window will display and the IP Address tab is open on this window by default. Now you have two ways to configure the TCP/IP protocol below:  Setting IP address automatically...
  • Page 68 TD-8816 ADSL2+ Modem Router User Guide Figure B-3  Note: For Windows 98 OS or before, the PC and Modem Router may need to be restarted.  Setting IP address manually Select Use the following IP address radio button. And the following items available If the modem router's LAN IP address is 192.168.1.1, specify the IP address as 192.168.1.x...
  • Page 69 TD-8816 ADSL2+ Modem Router User Guide Figure B-4 Now: Click OK to keep your settings.

  • Page 70: Appendix C: Troubleshooting

    TD-8816 ADSL2+ Modem Router User Guide Appendix C: Troubleshooting T1. How do I restore my modem router’s configuration to its factory default settings? With the modem router powered on, press and hold the RESET button on the rear panel for 8 to 10 seconds before releasing it.
  • Page 71 TD-8816 ADSL2+ Modem Router User Guide Select Obtain an IP address automatically and Obtain DNS server address automatically. Then click OK. For Windows 8 Move your mouse to the lower right corner and you will see Search icon in the Popups.
  • Page 72 Login. 5) Please feel free to contact our Technical Support if the problem still exists.  Note: For more details about Troubleshooting and Technical Support contact information, please log on to our Technical Support Website: http://www.tp-link.com/en/support .

  • Page 73: Appendix D: Technical Support

    Tel: NZ 0800 87 5465 (Toll Free) Service time: Monday to Friday, 09:00 to 18:00 AU 1300 87 5465 (Depending on 1300 policy.) *Except French Bank holidays E-mail: support.au@tp-link.com (Australia) support.nz@tp-link.com (New Zealand) Switzerland Service time: 24hrs, 7 days a week...
