Mounting the Unit
1. Place the back side of the display through the opening in the dash.
2. Use the four screws to line up the unit with the drilled holes.
3. Push the unit through the opening and screws through the drilled holes until the back of
the case is flush.
4. Use the Nylock nuts provided to tighten unit to the dash. Use the appropriate wrench or
socket to tighten. Torque lock nuts to 8-10 inch-pounds.
Flush Mounting the Dash
1. Cut the dash to allow for the display without bezel. Carefully follow the measurements
of the included dash cut-out to ensure enough of the dash is available to properly
secure the display. Torque the 6-32 Nylock nuts to 5 inch-pounds.
2. Place the display behind dash and line up the four mounting holes on the display with
the holes in dash.
3. Install four bolts and tighten nuts.

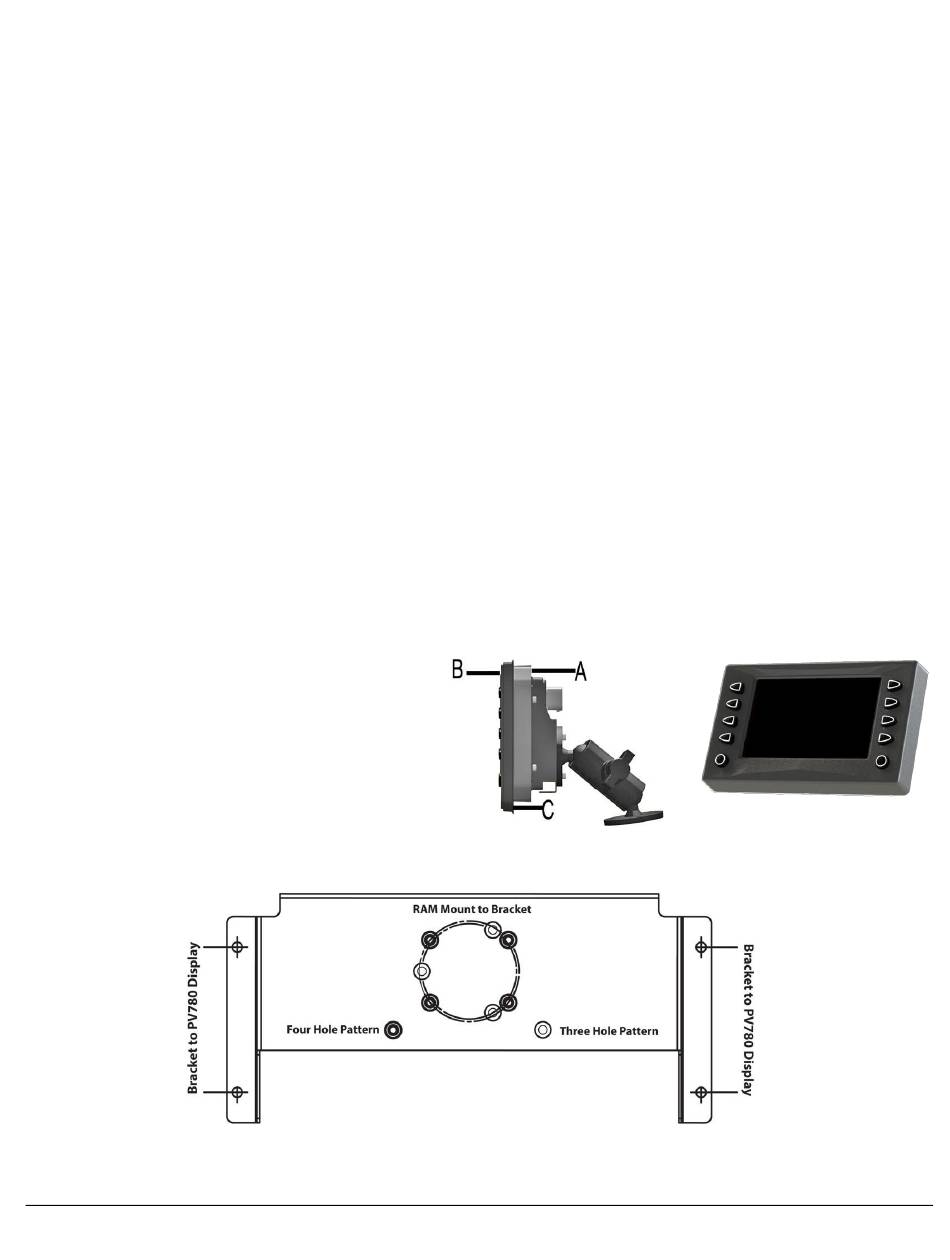

Mounting Options
A = Elevated Mount with Bezel
(78051574) / Ram Mount
B = Rear Mount
C = Flush Mount
Support Bracket
A special bracket supports the PV780 display with RAM mount C size components.
