KBC eCopper EECF1-LN1-R-MX-B Quick Start Manual

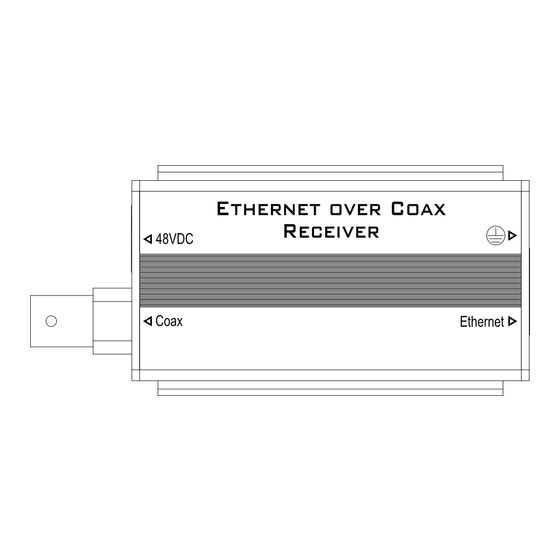

EoC Receiver – 1 BNC Connecter and 1 RJ45
Introduction
The KBC EECF1-LN1-R-WX-B is a fully ruggedized Ethernet over coax one
channel receiver. It is with one BNC port connecting coax and one 10/100M
Base-T port connecting switch. It provides connectivity of 1 unit PoC/PoE
version EECF1-LS1-T-IN-B or EECF1-LS1-T-MN-B transmitter. Power is supplied
to the transmitter through the coaxial cable. Varying data rates are supported
depending on cable distance and quality. Plug-and-play design ensures ease of
installation with no electrical adjustment needed. LED indicators are provided
to show the operational status of the unit clearly.
This one channel receiver is installed together with metal clip.
Features
•
1 coax ports with PoC
•
1 *10/100 Base-T port
•
Connect to 1 unit EECF1-LS1-T-IN-B or 1 unit EECF1-LS1-T-MN-B
•
Coax data rate >50Mbps (300m)
•
PoE+ is supported up to 300m based on coax quality and applied voltage
to coax (48~57VDC)
•
Over current and short circuit protection
•
Unique PoC transmission protection design so that no power is output
when transmitter end is not connected.
Downloads
Full specifications, features and additional information can be found on the
relevant product page on the KBC website as well as in the downloads section:
http://www.kbcnetworks.com/downloads
QSG-ECEF1-LN1-R-MX-B_Series-Rev1808
