EoU Receiver 8*UTP Ports and 3*1000M RJ45
Introduction

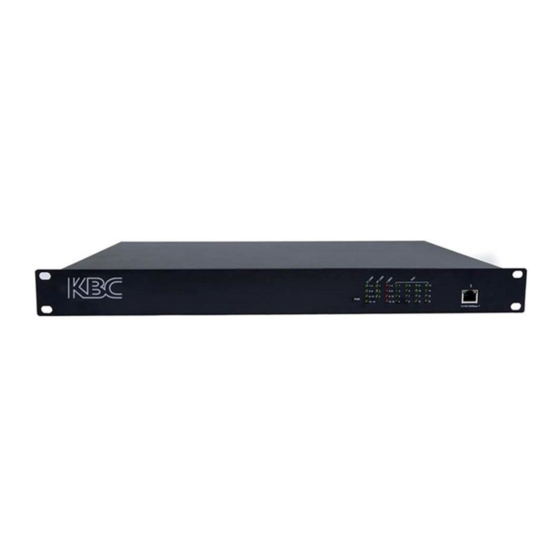

The KBC EERF8-GN3-R-RX-B series is an Ethernet over UTP (EoU) receiver with
8 UTP ports supplying Power over Wire (PoW) and 3*10/100/1000M Ethernet
ports. This receiver provides connectivity up to 8 PoW/PoE (EERF1-LS1-T-MN-
B) transmitters. Power is supplied to the transmitter through the UTP cable.
Varying data rates are supported depending on cable distance and quality.
This product also provides PoW management which allows the operator to
remotely switch power on or off to any of the UTP channels. Plug-and-play
design ensures ease of installation with no electrical adjustment needed. LED
indicators are provided to show the operational status of the unit.
This receiver is available in 1U rack configuration.
Features
•
8 UTP ports with PoW
•
3 *10/100/1000M Ethernet ports (1 on the front and 2 at the rear)
•
PoW management
•
Full switching capability
•
Connects up to 8 (EERF1-LS1-T-MN-B) transmitters
•
UTP data rate >40Mbps (300m)
•
Based on cable quality, cable pairs used (1,2, or 4 pairs) and voltage
applied to cable (48~57VDC) from headend, PoE and PoE+ are supported
by PoW up to 400m
•
Over current and short circuit protection
•
Unique PoW transmission protection design so that no power is output
when the transmitter end is not connected.
Downloads
Full specifications, features and additional information can be found on the
KBC website: www.kbcnetworks.com.
QSG-EERF8-GN3-R-RX-B_Series-Rev2101
Copyright © KBC Networks 2021
Quick Start Guide
EERF8-GN3-R-RX-B
eCopper™
www.kbcnetworks.com
Advertisement
Table of Contents
Related Manuals for KBC eCopper EERF8-GN3-R-RX-B
Summary of Contents for KBC eCopper EERF8-GN3-R-RX-B
- Page 1 EoU Receiver 8*UTP Ports and 3*1000M RJ45 Introduction The KBC EERF8-GN3-R-RX-B series is an Ethernet over UTP (EoU) receiver with 8 UTP ports supplying Power over Wire (PoW) and 3*10/100/1000M Ethernet ports. This receiver provides connectivity up to 8 PoW/PoE (EERF1-LS1-T-MN- B) transmitters.
- Page 2 General Check the product upon receipt for any visible damage which may have been caused during shipping. Physical Deployment This equipment must be installed and operated in accordance with instructions found in this document. Failure to comply with these instructions will invalidate the warranty.
-
Page 3: Panel Views
Panel views 9~12 9~12 13~16 13~16 10/100/1000Base-T Front Panel NOTICE: DISCONNECT THE AC POWER CABLE BEFORE SERVICING Reset 10/100/1000Base-T Rear Panel Color Status Description Green The power supply is normal. IP-LINK Green 3*10/100/1000M Network link is normal. U-LINK Green EoU connection is normal. When the total power of 4 channels I-MAX Green... - Page 4 Ethernet RJ45 Definition Signal TD1+ TD1- RD2+ BD3+ BD3- RD2- BD4+ BD4- UTP Port Definition Signal PoW+ PoW+ PoW- PoW+ PoW+ PoW- PoW- PoW- Notes: ★ Please use straight-through cable rather than cross-over cable. 8 wires transmission: all 8 wires need to be connected. 4 wires transmission: any 2 wires of PIN 1,2,4 and 5 as “+”, any 2 wires of PIN 3,6,7 and 8 as “-”.
-
Page 5: Dimensions (Unit = Mm)
Dimensions (Unit = mm) 9~12 9~12 13~16 13~16 10/100/1000Base-T Page 5 of 8... -
Page 6: Specifications
Specifications Item Description Power supply 100-240Vac input Power Consumption ≤260W (With PoW) Transmission Medium Cat5e/6 cable Operating frequency 2M~28M Modulation Wavelet-OFDM Transmission rate 210Mbps (Max.) Cable Power negotiation cycle Overcurrent 720mA Overcurrent protection time <2mS Transmission distance *400m RJ45 10/100/1000M SFP (optional) Ethernet Port Transmission medium... -
Page 7: Installation Instructions
Please do not exceed the maximum transmission distance. Try replacing each end with a known working unit to determine if you ⚫ have a damaged or faulty unit. If the problem persists, please contact your nearest KBC office or dealer. ⚫ Page 7 of 8... - Page 8 Need Help? Please visit our website www.kbcnetworks.com or contact your nearest KBC office or dealer. Page 8 of 8...
