KBC eCopper EERF4-DN1-R-XN-B Quick Start Manual

EoU Receiver 4*UTP Ports, 1*1000M RJ45 and 1*1G SFP
Introduction

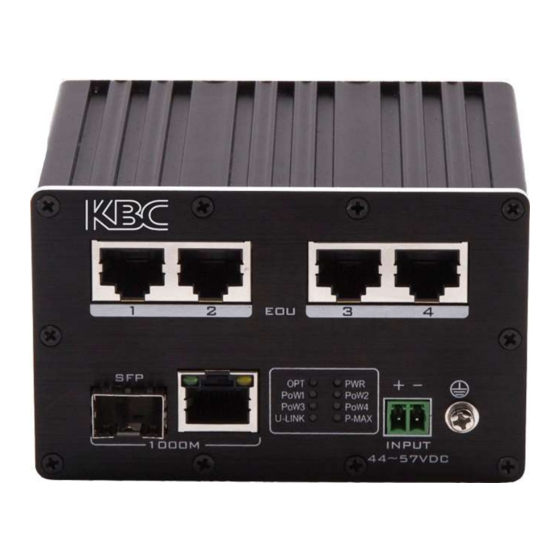

The KBC EERF4-DN1-R-XN-B series is an Ethernet over UTP (EoU) receiver with
4 UTP ports supplying Power over Wire (PoW), 1*10/100/1000M Ethernet port
and 1*1000Base-FX port. This receiver provides connectivity up to 4* PoW/PoE
(EERF1-LS1-T-MN-B) transmitters. Power is supplied to the transmitter through
the UTP cable. Varying data rates are supported depending on cable distance
and quality. This product also provides PoW management which allows the
operator to remotely switch power on or off to any of the UTP channels. Plug-
and-play design ensures ease of installation with no electrical adjustment
needed. LED indicators are provided to show the operational status of the
unit.
This unit is available in wall-mount and DIN rail mount.
Features
•
4 UTP ports with PoW
•
1 *10/100/1000M Ethernet port,1 *1000Base-FX SFP port
•
PoW management
•
Full switching capability
•
Connects up to 4 (EERF1-LS1-T-MN-B) transmitters
•
UTP data rate >40Mbps (300m)
•
Based on cable quality, cable pairs used (1,2 or 4 pairs) and voltage
applied to cable (48~57VDC) from headend, PoE and PoE+ are supported
by PoW up to 400m.
•
Over current and short circuit protection
•
Unique PoW transmission protection design so that no power is output
when the transmitter end is not connected.
Downloads
Full specifications, features and additional information can be found on the
KBC website: www.kbcnetworks.com.
QSG-EERF4-DN1-R-XN-B_Series-Rev2101
Copyright © KBC Networks 2021
