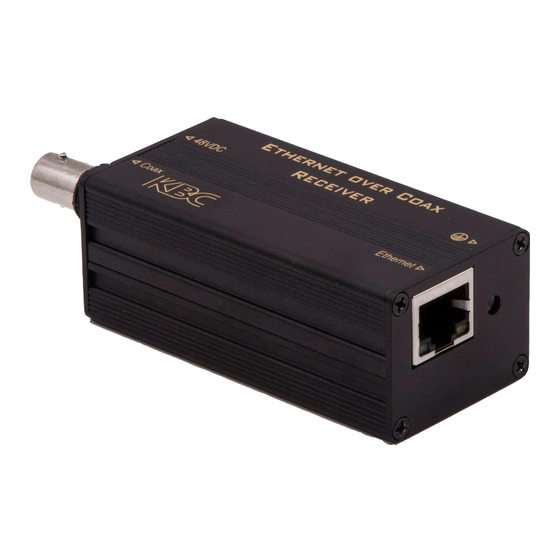

EoU Receiver – 1 UTP Connector and 1 RJ45
Introduction
The KBC EERF1-LN1-R-MN-B series is an Ethernet over UTP (EoU) receiver with
1 UTP port supplying Power over Wire (PoW) and 1*10/100M Ethernet port.
This receiver provides connectivity for 1* PoW/PoE (EERF1-LS1-T-MN-B)
transmitter. Power is supplied to the transmitter through the UTP cable.
Varying data rates are supported depending on cable distance and quality.
Plug-and-play design ensures ease of installation with no electrical adjustment
needed. LED indicators are provided to show the operational status of the
unit.
This unit is available in compact wall-mount via metal clip.
Features
•
1 UTP port with PoW
•
1 *10/100M Ethernet port
•
Connect one transmitter or EERF1-LS1-T-MN-B
•
UTP data rate >40Mbps (300m)
•
Based on cable quality, cable pairs used (1,2 or 4 pairs) and voltage
applied to cable (48~57VDC) from headend, PoE and PoE+ are supported
by PoW up to 400m.
•
Over current and short circuit protection
•
Unique PoW transmission protection design so that no power is output
when transmitter end is not connected.
Downloads
Full specifications, features and additional information can be found on the
KBC website: www.kbcnetworks.com.
QSG-EERF1-LN1-R-MN-B_Series-Rev2101
Copyright © KBC Networks 2021
Quick Start Guide
EERF1-LN1-R-MN-B
eCopper™
www.kbcnetworks.com
Advertisement
Related Manuals for KBC eCopper EERF1-LN1-R-MN-B
Summary of Contents for KBC eCopper EERF1-LN1-R-MN-B
- Page 1 EoU Receiver – 1 UTP Connector and 1 RJ45 Introduction The KBC EERF1-LN1-R-MN-B series is an Ethernet over UTP (EoU) receiver with 1 UTP port supplying Power over Wire (PoW) and 1*10/100M Ethernet port. This receiver provides connectivity for 1* PoW/PoE (EERF1-LS1-T-MN-B) transmitter.
- Page 2 General Check the product upon receipt for any visible damage which may have been caused during shipping. Physical Deployment This equipment must be installed and operated in accordance with instructions found in this document. Failure to comply with these instructions will invalidate the warranty.
-
Page 3: Panel View
Panel views Top view Panel view Network cable panel Ethernet panel 1 - Power input; 2 - LED indicator; 3 - Network cable connector; 4 - Ethernet RJ45 port; 5 – Grounding terminal. Color Status Description Green Power supply is normal. Green PoW power supply is normal. - Page 4 Ethernet RJ45 Definition Signal UTP Port Definition Signal PoW+ PoW+ PoW- PoW+ PoW+ PoW- PoW- PoW- Notes: ★ Please use straight-through cable rather than cross-over cable. 8 wires transmission: all 8 wires need to be connected. 4 wires transmission: any 2 wires of PIN 1,2,4 and 5 as “+”, any 2 wires of PIN 3,6,7 and 8 as “-”.
- Page 5 Dimensions (Unit = mm) Equipment: Installation Accessories: Page 5 of 8...
-
Page 6: Specifications
Specifications Items Description Power supply 48VDC/1A Power Consumption <2W Transmission medium Cat5e/6 cable Operating frequency 2M~28M Modulation Wavelet-OFDM Transmission rate 210Mbps (Max.) Cable Power negotiation cycle Overcurrent 720mA Overcurrent protection time <2mS Transmission distance *400m Transmission medium Cat5e/6 Ethernet Port Standard IEEE802.3，IEEE802.3U Ethernet delay... -
Page 7: Installation Instructions
Installation Instructions Please check the following items before installation. If any are missing, please contact the dealer. • EoU receiver --------------- x1 • Wall mounting clamp ----- x1 • QSG/User manual --------- x1 • Screws ---------------------- x2 Please follow the installation steps below: Attach the clamp to the wall using the 3X10mm screws. -
Page 8: Troubleshooting
Please replace the failed device with a known working unit to determine ⚫ if you have a damaged or faulty unit. If the problem persists, please contact your nearest KBC office or dealer. ⚫ Need Help? Please visit our website www.kbcnetworks.com...
