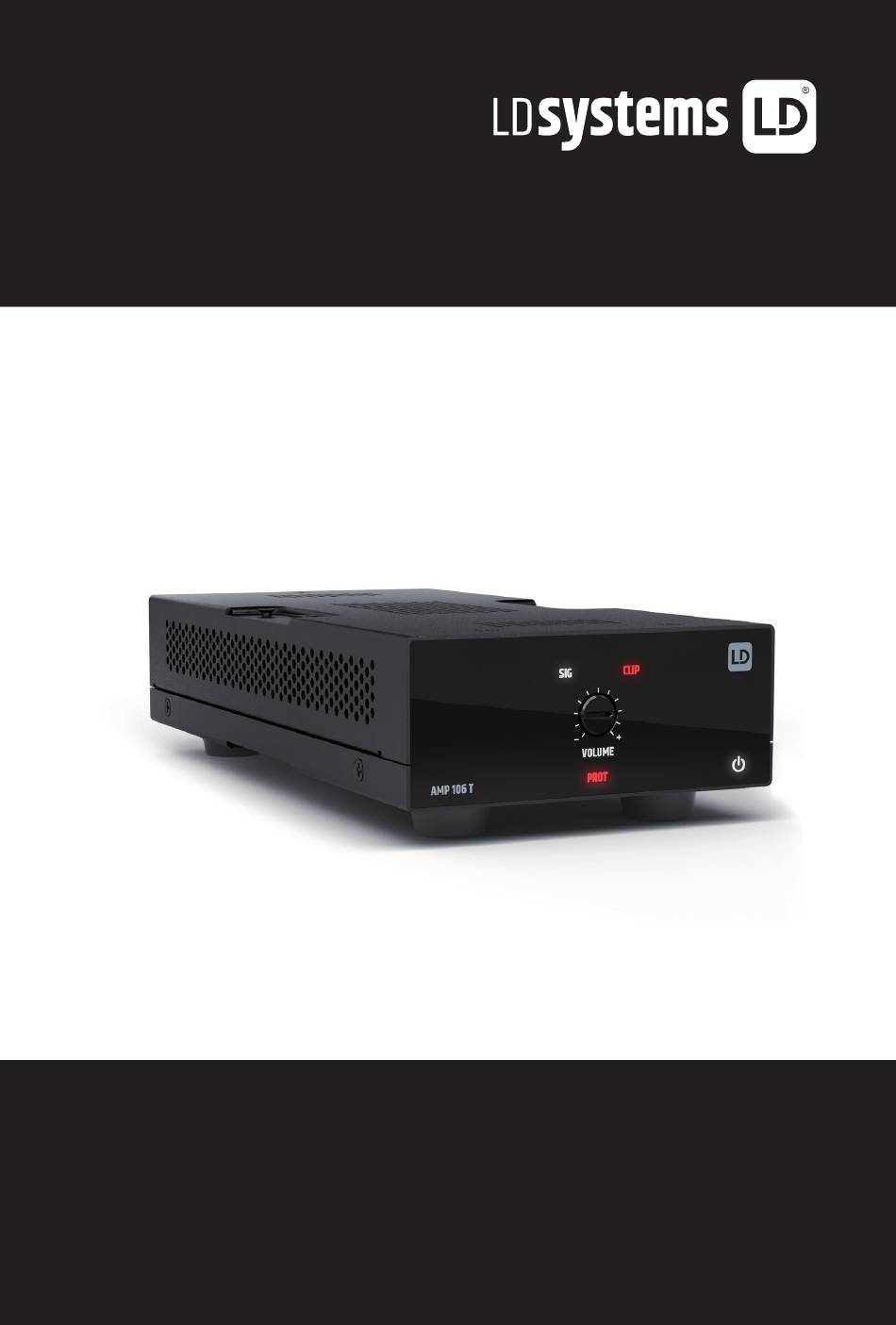

- Page 1 USER´S MANUAL BEDIENUNGSANLEITUNG MANUEL D´UTILISATION MANUAL DE USUARIO INSTRUKCJA OBSŁUGI MANUALE D´USO AMP 106 T 1-CHANNEL MINI INSTALLATION POWER AMPLIFIER 60 W @ 4 OHM / 70V / 100V LDAMP106T...
-
Page 2: Table Of Contents
CONTENTS / INHALTSVERZEICHNIS / ENGLISH ABOUT THIS MANUAL INTENDED USE EXPLANATIONS OF TERMS AND SYMBOLS SAFETY INSTRUCTIONS PACKAGING CONTENT INTRODUCTION CONNECTIONS, OPERATING AND DISPLAY ELEMENTS TERMINAL BLOCK CONNECTIONS CONNECTION EXAMPLE UNDER / ON-TABLE MOUNTING CARE, MAINTENANCE AND REPAIR DIMENSIONS TECHNICAL DATA DISPOSAL MANUFACTURER´S DECLARATIONS... -
Page 3: About This Manual
ENGLISH YOU HAVE MADE THE RIGHT CHOICE! We have designed this product to operate reliably over many years. LD Systems stands for this with its name and many years of experience as a manufacturer of high-quality audio products. Please read this User‘s Manual carefully, so that you can begin making optimum use of your LD Systems product quickly. -
Page 4: Safety Instructions
This symbol indicates dangers due to high volume levels. This symbol denotes a device that does not contain any user-serviceable parts. This symbol indicates additional information on the operation of the product. SAFETY INSTRUCTIONS DANGER: 1. Do not open the device and do not perform any modifications. 2. - Page 5 DANGER: 1. Choking hazard! Plastic bags and small parts must be kept out of reach of persons (including children) with reduced physical, sensory or mental capabilities. 2. Danger of falling down! Make sure that the device is securely installed and cannot fall down.
-
Page 6: Packaging Content
• User manual INTRODUCTION The AMP 106 T is a 1-channel mini installation amplifier from the TICA® series and is ideal for use in sound installations where small dimensions, passive cooling and high efficiency are required. The highly efficient 60W Class-D amplifier, with Lo-Z / Hi-Z selector switch and 4 Ohm / 100V / 70V outputs, is convection-cooled and a straightforward solution for professional installers. -
Page 7: Display Elements
For space-saving installation in the rack, an optional rack tray offers you the possibility to place up to four products of the TICA® series next to each other. Terminal strip connections on the balanced line inputs and speaker outputs make wiring particularly easy. - Page 8 LINE IN L/R Analogue audio inputs with balanced terminal block connections. The +, - and G poles are for the balanced input signal (suitable for unbalanced cabling). The signals of the inputs L and R are internally mono summed. Terminal blocks are included in the packaging content. OUTPUT The loudspeaker output with terminal block connection (terminal block included in the packaging content) enables the use of low-impedance loudspeakers with an impedance of at least 4 ohms...
-
Page 9: Terminal Block Connections
POWER SYMBOL The power symbol lights up white when the installation amplifier is ready for operation. In standby mode, the symbol lights up red. VOLUME Volume control. Turning to the right increases the volume, turning to the left decreases it. SIG (SIGNAL) As soon as an audio signal is present at the amplifier, the signal indicator lights up white. -
Page 10: Connection Example
CONNECTIONS VCA Volume Ground OUTPUT CONNECTIONS ATTENTION: When wiring terminal blocks, please note the correct assignment of the poles/ terminals. The manufacturer accepts no liability for damage caused by faulty wiring! CONNECTION EXAMPLE ON/STANDBY VOLUME... -
Page 11: Under / On-Table Mounting
UNDER / ON-TABLE MOUNTING There are two recesses on the top and bottom of the enclosure, each with two M3 threaded holes, for mounting underneath or on top of the table. Screw the two enclosed mounting plates to the top or bottom side using the enclosed M3 countersunk screws. Now the amplifier can be fixed in the desired position (see illustration, fixing screws not included). -
Page 12: Dimensions
1. Housing surfaces must be cleaned with a clean, damp cloth. Make sure that no moisture can penetrate the device. 2. Air inlets and outlets must be regularly cleaned of dust and dirt. If compressed air is used, make sure that damage to the device is prevented (e.g. -
Page 13: Technical Data
TECHNICAL DATA Item number LDAMP106T Product type Installation power amplifier Line inputs Line input connectors balanced line inputs, pitch 3.81 mm terminal block (3-pin) Line outputs Powered outputs 1 with output mode selector (LO-Z / HI-Z) Cooling system Convection cooling Priority levels Input Section Nominal input sensitivity... - Page 14 Item number LDAMP106T Power Supply Type External SMPS Voltage range 100 VAC – 240 VAC (+–10%), 50 – 60 Hz Mains fuse none Secondary connector Terminal block 5.08 mm 2-pole Secondary Voltage 24 V DC Secondary Current 3,5 A Primary connector IEC Jack Safety class Class 1...
-
Page 15: Disposal
DISPOSAL Packaging: 1. Packaging can be disposed of via the usual waste disposal channels. 2. Please separate the packaging according to the waste disposal and materials regulations in your country. Device: 1. This device is subject to the European Directive on Waste Electrical and Electronic Equipment in its applicable version. -
Page 16: Manufacturer´s Declarations
MANUFACTURER´S DECLARATIONS MANUFACTURER‘S WARRANTY & LIMITATIONS OF LIABILITY Adam Hall GmbH, Adam-Hall-Str. 1, D-61267 Neu Anspach / E-mail Info@adamhall.com / +49 (0)6081 / 9419-0. Our current warranty conditions and limitation of liability can be found at: https://cdn-shop.adamhall.com/media/pdf/MANUFACTURERS-DECLARATIONS_LD_SYSTEMS.pdf. Contact your distribution partner for service. UKCA-CONFORMITY Hereby, Adam Hall Ltd. - Page 17 LD-SYSTEMS.COM Adam Hall GmbH | Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany Phone: +49 6081 9419-0 | adamhall.com Adam Hall Ltd. | The Seedbed Business Centre | SS3 9QY Essex | UK REV: 01...
