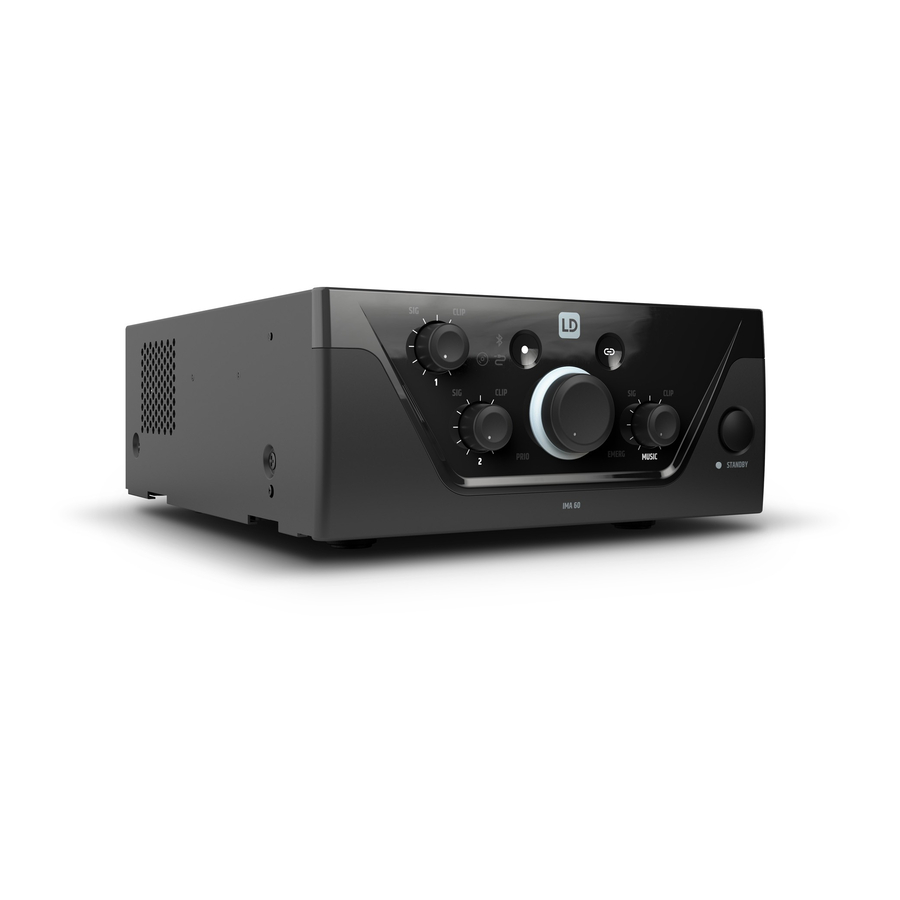

- Page 1 USER´S MANUAL BEDIENUNGSANLEITUNG More languages online at: ld-systems.com IMA 60 INSTALLATION MIXING AMPLIFIER 65 W @ 4 OHMS / 100 V / 70 V LDIMA60...
-
Page 2: Table Of Contents
CONTENTS / INHALTSVERZEICHNIS ENGLISH DEUTSCH SAFETY INFORMATION SICHERHEITSHINWEISE INTRODUCTION EINLEITUNG CONNECTIONS, CONTROLS AND DISPLAY ELEMENTS ANSCHLÜSSE, BEDIENUNG UND ANZEIGEELEMENTE CONNECTION EXAMPLES ANSCHLUSSBEISPIELE TERMINAL BLOCK CONNECTIONS KLEMMLEISTEN-ANSCHLÜSSE JUMPER FOR EMERGENCY SIGNAL ON AUX OUT JUMPER FÜR NOTFALLSIGNAL AN AUX OUT RACK INSTALLATION RACK-MONTAGE UNDER-TABLE INSTALLATION UNTERTISCH-MONTAGE... -
Page 3: Safety Information
YOU HAVE MADE THE RIGHT CHOICE! This device was developed and manufactured subject to high quality requirements in order to guarantee trouble-free operation for many years. LD Systems is synonymous with extensive experience as a manufacturer of high-quality audio products. Please read these operating instructions carefully so that you can use your new LD Systems product in optimal conditions. - Page 4 WARNING Never remove the cover as this involves a risk of electric shock. There are no parts inside the device suitable for repair or maintenance by the operator. Maintenance and repairs must be performed exclusively by qualified service personnel. The equilateral triangle with a lightning symbol warns of uninsulated, dangerous voltages inside the device that can cause an electric shock.
-
Page 5: Introduction
70 V/100 V tap. A low-Z/high-Z selector completely separates the output signal from the output transformer, in order to ensure the best frequency response for low impedance applications. The IMA 60 can also be used with external amplifiers, sub woofers or music-on-hold systems via the integrated Aux output. - Page 6 POWER CONNECTOR IEC socket to supply mains power to the device (power cable included in the packaging). FUSE Fuse holder for 250 V miniature fuses (5 × 20 mm). CAUTION: Only replace the fuse with a fuse of the same type (see note on the housing). If the fuse blows repeatedly, please contact an authorized service center..
- Page 7 3 seconds (the standby LED flashes white on the front of the device when starting). If the STANDBY LED is white, the device is ready for use. The LED is lit red in standby mode. In addition, the IMA 60 can also be switched to standby mode manually by pressing the standby button on the front.
- Page 8 If you want to disconnect the connection with a Bluetooth device so that the Bluetooth module can be connected to another device, press the Bluetooth button again for around 2 seconds. You can then connect the desired auxiliary device via its setup menu in which you select the LD IMA 60 in the Bluetooth menu (connected devices) of the auxiliary device.
-
Page 9: Connection Examples
PRIORITY LEVELS Priority levels Trigger signal source Muted signal sources Active Indicator on the front signal sources MIC/LINE 1 Emergency VOX switching circuit and MIC/LINE 2 EMERGENCY SIGNAL EMERG contact closure MUSIC MIC/LINE 2 EMERGENCY SIGNAL MIC/LINE 1 VOX PRIO MUSIC ... -
Page 10: Terminal Block Connections
When wiring terminal blocks, please ensure that the poles/terminals are correctly assigned (see figure under the connection examples for terminal blocks). The manufacturer takes no responsibility for damage caused by faulty wiring! Further information on the correct wiring of terminal block connections (“terminal blocks”) can be found in the section TERMINAL BLOCK CONNECTIONS in these instructions. - Page 11 SPEAKER CONNECTIONS (low impedance, 100 V and 70 V speaker) CHANNEL 1 AND 2 INPUTS balanced wiring balanced wiring unbalanced wiring XLR m XLR f XLR f XLR m EMERGENCY CHANNEL INPUTS balanced wiring XLR f XLR m XLR f XLR m XLR f XLR m...
-
Page 12: Jumper For Emergency Signal On Aux Out
JUMPER FOR EMERGENCY SIGNAL ON AUX OUT In the factory settings, the EMERGENCY signal is routed via an internal jumper to the AUX OUT line output. If this setting needs to be changed, the device must be opened and the corresponding jumper removed. Caution: Warning! Danger of electric shock! Dangerous voltages inside the device! Opening the device and changing the configuration using a jumper requires specialist technical knowledge and may only be carried... -
Page 13: Rack Installation
The optionally available LDIMARK rank installation kit contains housing adapters and connecting pieces for the permanent installation of IMA 30 or IMA 60 mixing amplifiers (single or two side by side) in a 19” rack. The installation kit includes the following components:... -
Page 14: Under-Table Installation
UNDER-TABLE INSTALLATION (rack adapter optional with LDIMARK rack installation kit). Two M4 threaded holes are provided at the top of the corners of the amplifier housing for under-table installation. Screw the two rack adapters with the short sides to the two sides of the housing using the M4 pan-head screws provided (see figure). The amplifier can now be installed in the desired position under a table. -
Page 15: Technical Data
TECHNICAL DATA Item description LDIMA60 Product type Installation mixing amplifier Emergency signal input 1 balanced line input Mic/line inputs Music sources 2 unbalanced stereo line inputs + 1 Bluetooth interface Version 4.0 Line outputs Speaker outputs 1 with Low-Z/High-Z mode selector Cooling Convection cooling Priority levels... - Page 16 Item description LDIMA60 Mic/line inputs 1-2 Gain Mic: 12 dB ... 66 dB (SPK) / 42 dB (AUX OUT) Line: -37 ... 44 dB (SPK) / 18 dB (AUX OUT) Phantom power +24 V, 10 mA, switchable VOX threshold value Mic: 0%: Off, 25%: -40 dBu, 50%: -52 dBu, 100%: -66 dBu Line: 0%: Off, 25%: -6 dBu, 50%: -27 dBu, 100%: -35 dBu Priority contact closure...
- Page 17 Item description LDIMA60 Power supply Type Switch mode power supply Operating voltage 100 V AC – 240 V AC (+/-10%), 50 – 60 Hz Mains fuse T2.5A 250V Connector IEC power supply socket Safety class Class 1 Max. Power consumption 95 W (sine burst, 1 kHz, 4 Ohm load) Power consumption, idle mode 7.5 W (no input signal)
-
Page 18: Manufacturer´s Declarations
MANUFACTURER´S DECLARATIONS MANUFACTURER‘S WARRANTY & LIMITATIONS OF LIABILITY You can find our current warranty conditions and limitations of liability at: https://cdn-shop.adamhall.com/media/pdf/MANUFACTURERS-DECLARATIONS_ LD_SYSTEMS.pdf To request warranty service for a product, please contact Adam Hall GmbH, Adam-Hall-Str. 1, 61267 Neu Anspach / Email: Info@adamhall.com / +49 (0)6081 / 9419-0. CORRECT DISPOSAL OF THIS PRODUCT (valid in the European Union and other European countries with a differentiated waste collection system) This symbol on the product, or on its documents indicates that the device may not be treated as household waste. - Page 21 LD-SYSTEMS.COM Adam Hall GmbH | Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany Phone: +49 6081 9419-0 | adamhall.com REV: 04...
